522070333 Easy-On by Molex

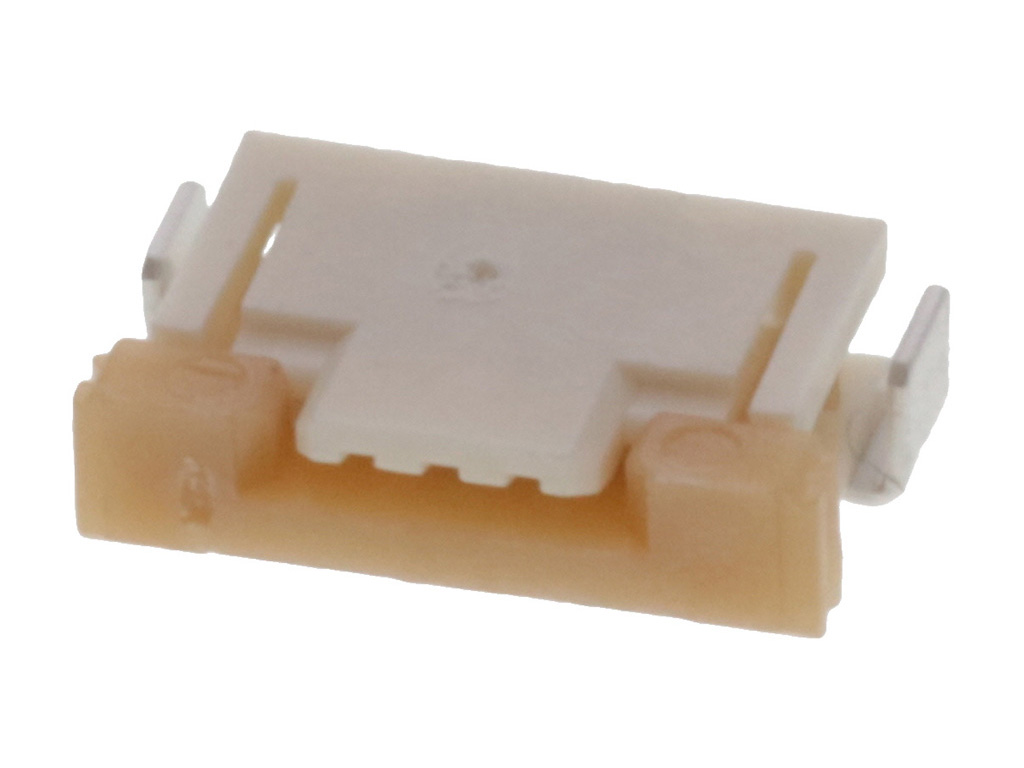

Easy-On FFC/FPC Connector, 1.00mm Pitch, Slider Series, Right-Angle, Top Contact, 2.70mm Height, 3 Circuits, Tin-Silver-Bismuth Plating
| Status: | Obsolete |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52207-0333,
0522070333 |
Where to Buy
Prices starting from US$0.38
| Distributor | Stock | ||
|---|---|---|---|
|
Farnell
from US$0.68
|
900
in stock
|
Buy Now |
|
Offical Electronic
-
|
1,000
in stock
|
Buy Now |
|
Avnet America
from US$0.38
|
0
in stock
|
Buy Now |
|
RS Americas
from US$0.42
|
0
in stock
|
Buy Now |
|
element14
from US$0.49
|
0
in stock
|
Buy Now |
|
Newark Electronics
-
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.0A |
| Voltage Maximum | 125V |
Physical |
|
|---|---|
| Actuator Type | Slider |
| Circuits Loaded | 3 |
| Color Resin | Natural |
| Contact Position | Top |
| Durability Mating Cycles Max | 30 |
| Flammability | 94V-0 |
| Mated Height | 2.70mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin-Silver-Bismuth |
| Material Plating Termination | Tin-Silver-Bismuth |
| Material Resin | Nylon |
| Net Weight | 222.900/mg |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | Yes |
| Pc Tail Length | 2.00mm |
| Pitch Mating Interface | 1.00mm |
| Pitch Termination Interface | 1.00mm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| CONNECTORS | Farnell |
| Conn FFC/FPC Connector SKT 3 POS 1mm Solder RA SMD Embossed T/R | Avnet America |
| 52207 SERIES 1MM PITCH 3 WAY RIGHT ANGLE FEMALE FPC CONNECTOR, ZIF TOP CONTACT | RS Americas |
| FPC CONNECTOR, RCPT, 3POS, 0.3MM, SMD | element14 |
| Fpc Connector, Rcpt, 3Pos, 0.3Mm, Smd | Newark Electronics |
