522070360 Easy-On by Molex

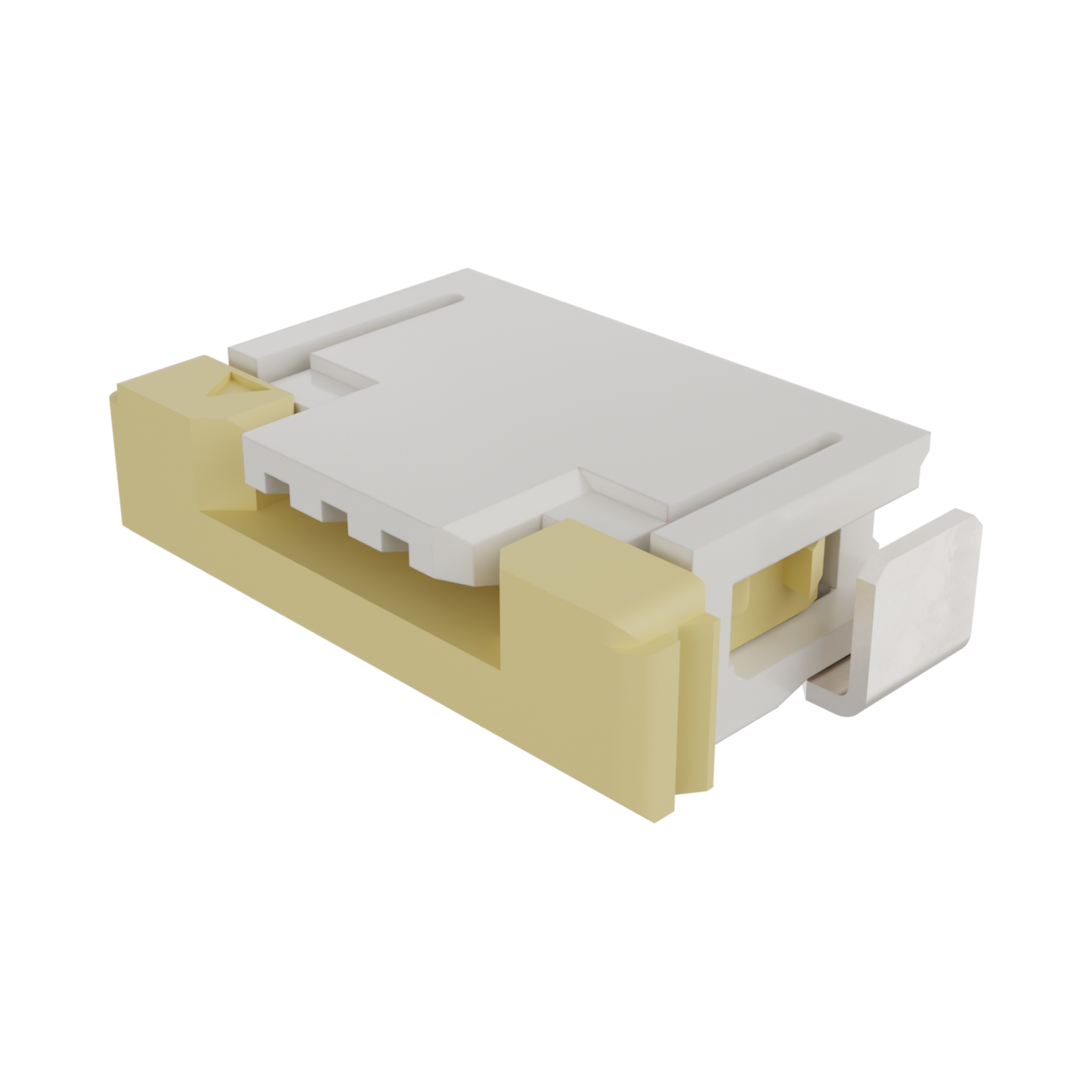

Easy-On FFC/FPC Connector, 1.00mm Pitch, Slider Series, Right-Angle, Top Contact, 2.70mm Height, 3 Circuits, Gold Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52207-0360,
0522070360 |
Where to Buy
Prices starting from US$0.27
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$0.78
|
21,000
in stock
|
Buy Now |
|
Farnell
from US$0.55
|
18,900
in stock
|
Buy Now |
|
Newark Electronics
from US$0.76
|
7,646
in stock
|
Buy Now |
|
RS
from US$0.73
|
3,818
in stock
|
Buy Now |
|
TTI Americas
from US$0.38
|
3,000
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.42
|
3,000
in stock
|
Buy Now |
|
TME
from US$0.41
|
933
in stock
|
Buy Now |
|
Rutronik
from US$0.35
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.33
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.66
|
0
in stock
|
Buy Now |
|
Sager
from US$0.40
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.41
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.30
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.27
|
0
in stock
|
Buy Now |
|
EME
from US$0.38
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.0A |
| Voltage Maximum | 125V |
Physical |
|
|---|---|
| Actuator Type | Slider |
| Circuits Loaded | 3 |
| Color Resin | Natural |
| Contact Position | Top |
| Durability Mating Cycles Max | 30 |
| Flammability | 94V-0 |
| Mated Height | 2.70mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 222.606/mg |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pc Tail Length | 2.00mm |
| Pitch Mating Interface | 1.00mm |
| Pitch Termination Interface | 1.00mm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex FFC/FPC-Anschluss Polzahl Gesamt 3 Rastermaß: 1 mm 522070360 1 St. Tape on Full reel | Conrad |
| FPC CONN, RCPT, 3POS, 1ROW, 1MM | Farnell |
| Ffc/Fpc Board Connector, Surface Mount, Receptacle, 3, Top, 1 Mm Rohs Compliant: Yes |Molex 52207-0360 | Newark Electronics |
| Molex 52207-0360 FPC Connector | RS |
| 1.00MM REC 04P RA SMT TOP AU | TTI Americas |
| 1.0MM FPC ZIF SMT HSG 3CKT | TTI Europe |
| Connector: FFC/FPC | TME |
| 03P FFC/FPC ZIF SMT 90° Top-Con 1.00mm | Rutronik |
| Conn FFC/FPC Connector SKT 3 POS 1mm Solder RA SMD Embossed T/R | Avnet America |
| FFC/FPC SMT SERIES 1MM PITCH 3 WAY RIGHT ANGLE SMT FEMALE FPC CONN, ZIF CONTACT | RS Americas |
| FFC & FPC Connectors 1.00MM REC 04P RA SMT TOP AU | Sager |
| 1.0 FPC ZIF SMT HSG ASSY 3CKT EMBSTPPKG | Heilind Americas |
