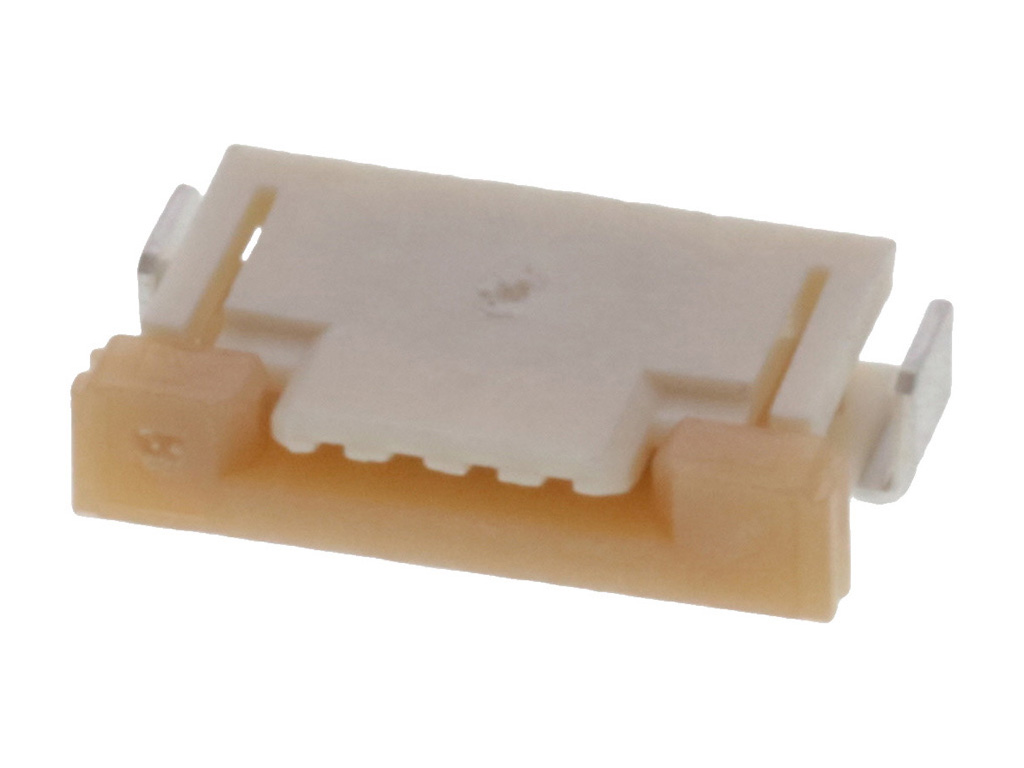

522070433 Easy-On by Molex
Easy-On FFC/FPC Connector, 1.00mm Pitch, Slider Series, Right-Angle, Top Contact, 2.70mm Height, 4 Circuits, Tin-Silver-Bismuth Plating
| Status: | Obsolete |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52207-0433,
0522070433 |
Where to Buy
Prices starting from US$0.34
| Distributor | Stock | ||
|---|---|---|---|
|
Farnell
from US$0.45
|
58,000
in stock
|
Buy Now |
|
Rapid Electronics
from US$0.58
|
1,074
in stock
|
Buy Now |
|
Conrad
from US$0.77
|
1,074
in stock
|
Buy Now |
|
RS
from US$0.51
|
0
in stock
|
Buy Now |
|
element14
from US$0.34
|
0
in stock
|
Buy Now |
|
Newark Electronics
-
|
0
in stock
|
Buy Now |
|
TTI Europe
-
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.0A |
| Voltage Maximum | 125V |
Physical |
|
|---|---|
| Actuator Type | Slider |
| Circuits Loaded | 4 |
| Color Resin | Natural |
| Contact Position | Top |
| Durability Mating Cycles Max | 30 |
| Flammability | 94V-0 |
| Mated Height | 2.70mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin-Silver-Bismuth |
| Material Plating Termination | Tin-Silver-Bismuth |
| Material Resin | Nylon |
| Net Weight | 252.400/mg |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | Yes |
| Pc Tail Length | 2.00mm |
| Pitch Mating Interface | 1.00mm |
| Pitch Termination Interface | 1.00mm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| FFC-FPC CONNNECTORS | Farnell |
| Molex 522070433 Easy-on FFC/FPC Connector 4 Pins 1mm Pitch 2.7mm Ht | Rapid Electronics |
| Molex FFC/FPC-Anschluss Polzahl Gesamt 4 Rastermaß: 1 mm 522070433 1 St. Tape on Full reel | Conrad |
| Molex 52207-0433 FPC Connector | RS |
| CONNECTOR, FFC/FPC, 4POS, 1ROW, 1MM | element14 |
| Ffc/Fpc Board Connector, 52207 Series, Surface Mount, Receptacle, 4, Top, 1 Mm Rohs Compliant: Yes |Molex 52207-0433 | Newark Electronics |
| 1.0 FPC HSG ASSY ZIF SMT 4CKT | TTI Europe |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 522070433?
Additional datasheets, footprints and schematics for 522070433 are listed on our Part Details page. You can also find images and similar parts to 522070433 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 522070433 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 522070433 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 522070433 fall under?
The 522070433 is listed under FFC / FPC Connectors.
Can I view similar or alternative parts?
You can view similar parts to 522070433 when available in the FFC / FPC Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 522070433 you can contact the distributor directly for product support, shipping queries etc.
Is the 522070433 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 522070433 have stock available?
Authorised distributors including Farnell, Rapid Electronics, Conrad, RS and element14 have stock available or on a lead time for 522070433.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 522070433 often in real-time on the comparison pages.
What if I can't find stock of 522070433?
You can fill out our help required form which you can use to request a quote for 522070433 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
