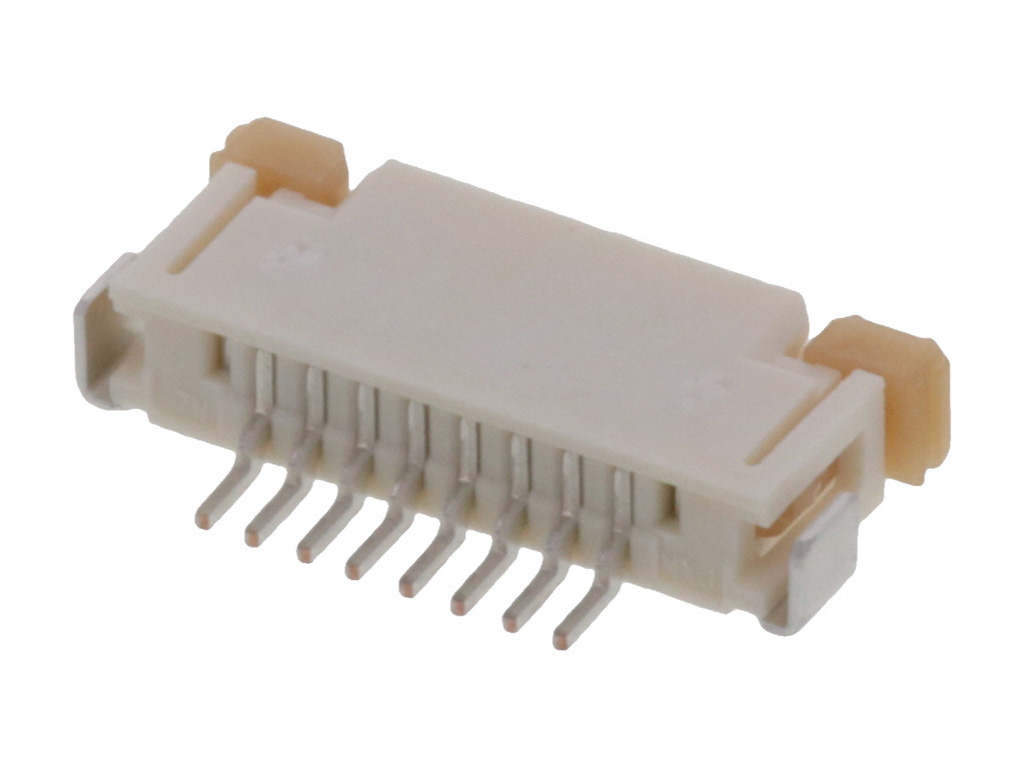

522070833 Easy-On by Molex
Easy-On FFC/FPC Connector, 1.00mm Pitch, Slider Series, Right-Angle, Top Contact, 2.70mm Height, 8 Circuits, Tin-Silver-Bismuth Plating
| Status: | Obsolete |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52207-0833,
0522070833 |
Where to Buy
Prices starting from US$0.26
| Distributor | Stock | ||
|---|---|---|---|
|
Farnell
from US$0.67
|
17,000
in stock
|
Buy Now |
|
TME
from US$0.62
|
4,471
in stock
|
Buy Now |
|
Rapid Electronics
from US$0.93
|
916
in stock
|
Buy Now |
|
Conrad
from US$1.05
|
916
in stock
|
Buy Now |
|
CoreStaff
from US$0.26
|
57
in stock
|
Buy Now |
|
RS
from US$0.94
|
30
in stock
|
Buy Now |
|
Newark Electronics
from US$0.68
|
2
in stock
|
Buy Now |
|
Avnet America
from US$0.52
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$1.05
|
0
in stock
|
Buy Now |
|
element14
from US$0.97
|
0
in stock
|
Buy Now |
|
TTI Europe
-
|
0
in stock
|
Buy Now |
|
|
TTI Asia
-
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.0A |
| Voltage Maximum | 125V |
Physical |
|
|---|---|
| Actuator Type | Slider |
| Circuits Loaded | 8 |
| Color Resin | Natural |
| Contact Position | Top |
| Durability Mating Cycles Max | 30 |
| Flammability | 94V-0 |
| Mated Height | 2.70mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin-Silver-Bismuth |
| Material Plating Termination | Tin-Silver-Bismuth |
| Material Resin | Nylon |
| Net Weight | 370.600/mg |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | Yes |
| Pc Tail Length | 2.00mm |
| Pitch Mating Interface | 1.00mm |
| Pitch Termination Interface | 1.00mm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| FPC CONN, RCPT, 8POS, 1ROW, 1MM | Farnell |
| Connector: FFC/FPC | TME |
| Molex 522070833 Slider Easy-on FFC/FPC Connector 8 Pin 1mm Pitch | Rapid Electronics |
| Molex FFC/FPC-Anschluss Polzahl Gesamt 8 Rastermaß: 1 mm 522070833 1 St. Tape on Full reel | Conrad |
| Molex 522070833 FPC Connector | RS |
| Connector, Ffc/Fpc, 8Pos, 1Row, 1Mm | Newark Electronics |
| Conn FFC/FPC Connector SKT 8 POS 1mm Solder RA SMD Embossed T/R | Avnet America |
| 52207 SERIES 1MM PITCH 8 WAY RIGHT ANGLE FEMALE FPC CONNECTOR, ZIF TOP CONTACT | RS Americas |
| CONNECTOR, FFC/FPC, 8POS, 1ROW, 1MM | element14 |
| 1.0 FPC HSG ASSY ZIF SMT 8CKT | TTI Europe |
| 1.00MM REC 08P RA SMT TOP | TTI Asia |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 522070833?
Additional datasheets, footprints and schematics for 522070833 are listed on our Part Details page. You can also find images and similar parts to 522070833 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 522070833 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 522070833 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 522070833 fall under?
The 522070833 is listed under FFC / FPC Connectors.
Can I view similar or alternative parts?
You can view similar parts to 522070833 when available in the FFC / FPC Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 522070833 you can contact the distributor directly for product support, shipping queries etc.
Is the 522070833 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 522070833 have stock available?
Authorised distributors including Farnell, TME, Rapid Electronics, Conrad and CoreStaff have stock available or on a lead time for 522070833.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 522070833 often in real-time on the comparison pages.
What if I can't find stock of 522070833?
You can fill out our help required form which you can use to request a quote for 522070833 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
