522070960 Easy-On by Molex

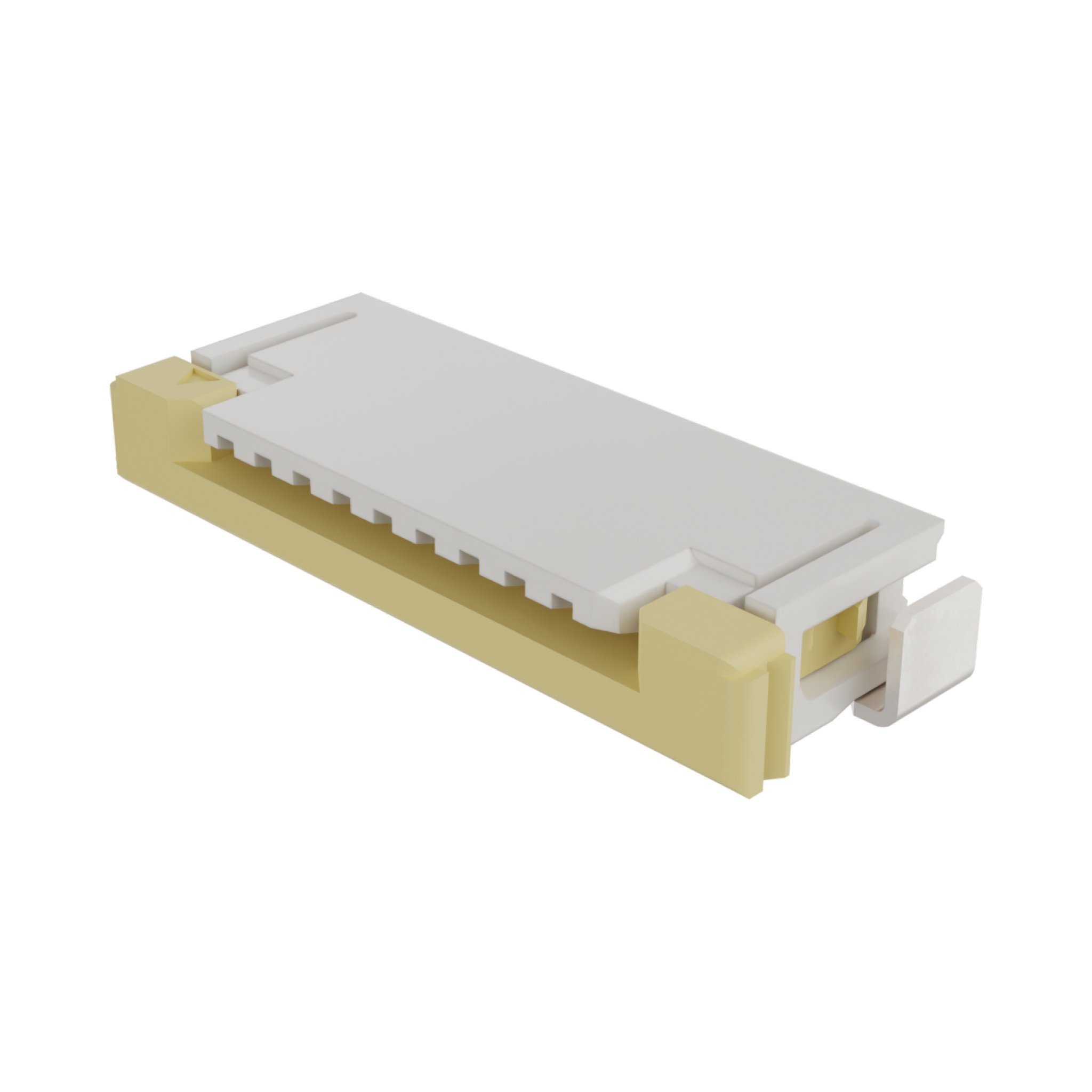

Easy-On FFC/FPC Connector, 1.00mm Pitch, Slider Series, Right-Angle, Top Contact, 2.70mm Height, 9 Circuits, Gold Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52207-0960,
0522070960 |
Where to Buy
Prices starting from US$0.41
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$1.24
|
21,301
in stock
|
Buy Now |
|
Farnell
from US$0.91
|
19,500
in stock
|
Buy Now |
|
Newark Electronics
from US$1.06
|
266
in stock
|
Buy Now |
|
element14
from US$0.84
|
266
in stock
|
Buy Now |
|
RS
from US$0.99
|
160
in stock
|
Buy Now |
|
TME
from US$0.62
|
0
in stock
|
Buy Now |
|
Compona
from US$0.50
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$0.72
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.61
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.41
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.74
|
0
in stock
|
Buy Now |
|
EME
from US$0.52
|
0
in stock
|
Buy Now |
|
Rutronik
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.0A |
| Voltage Maximum | 125V |
Physical |
|
|---|---|
| Actuator Type | Slider |
| Circuits Loaded | 9 |
| Color Resin | Natural |
| Contact Position | Top |
| Durability Mating Cycles Max | 30 |
| Flammability | 94V-0 |
| Mated Height | 2.70mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 399.318/mg |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pc Tail Length | 2.00mm |
| Pitch Mating Interface | 1.00mm |
| Pitch Termination Interface | 1.00mm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex FFC/FPC-Anschluss Polzahl Gesamt 9 Rastermaß: 1 mm 522070960 1 St. Tape on Full reel | Conrad |
| FPC CONN, RCPT, 9POS, 1ROW, 1MM | Farnell |
| Ffc/Fpc Board Connector, Surface Mount, Receptacle, 9, Top, 1 Mm Rohs Compliant: Yes |Molex 52207-0960 | Newark Electronics |
| CONNECTOR, FFC/FPC, 9POS, 1ROW, 1MM | element14 |
| Molex 52207-0960 FPC Connector | RS |
| Connector: FFC/FPC | TME |
| MOLEX 52207-0960 Plug Square FFC 9p SMT | Compona |
| 1.00 MM FFC/FPC CONNECTOR 9CKT | TTI Europe |
| 1.0 FPC ZIF SMTHSGASSY9CK TPPKG | Heilind Americas |
| 09P FFC/FPC ZIF SMT 90° 1.00mm | Rutronik |
