522071060 Easy-On by Molex

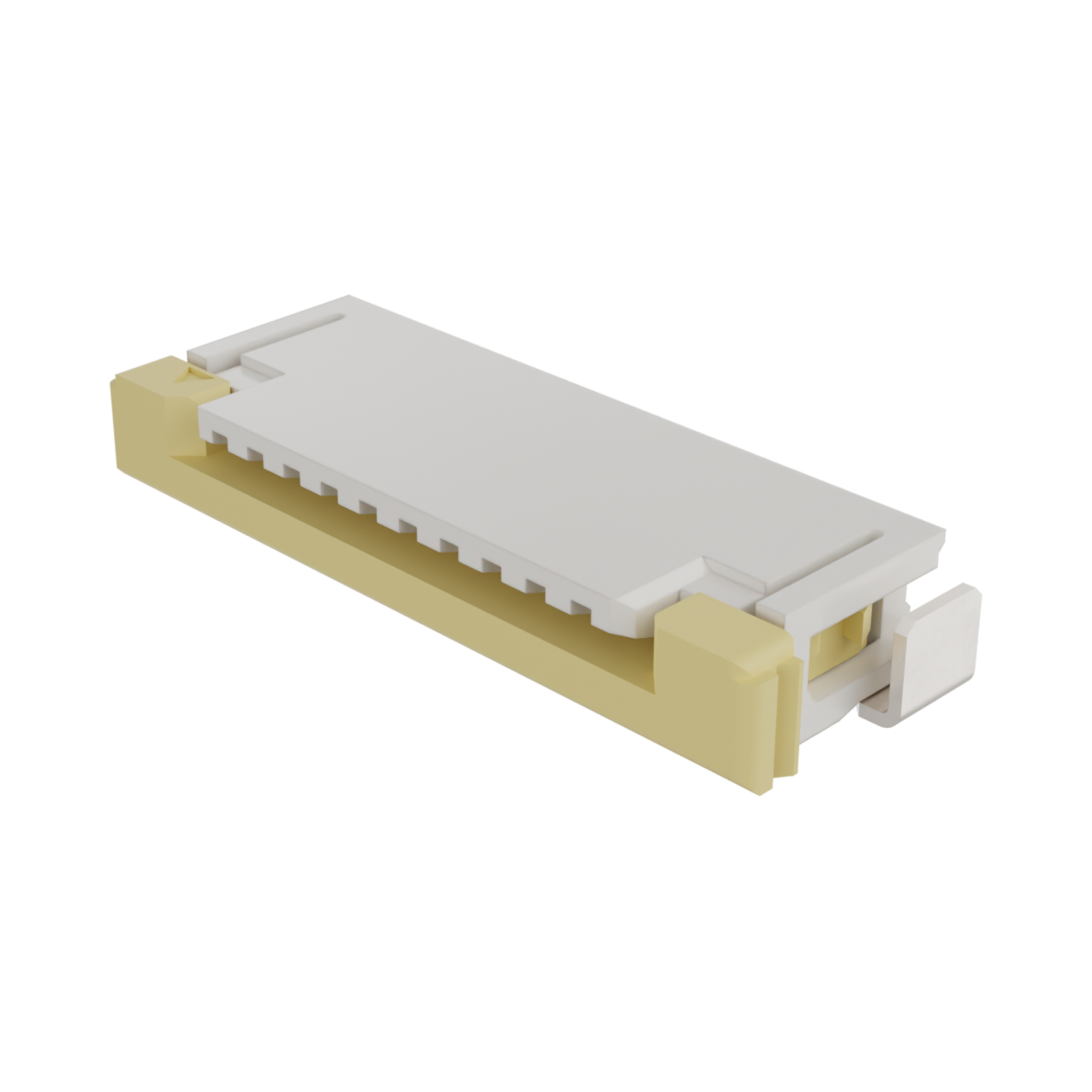

Easy-On FFC/FPC Connector, 1.00mm Pitch, Slider Series, Right-Angle, Top Contact, 2.70mm Height, 10 Circuits, Gold Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52207-1060,
0522071060 |
Where to Buy
Prices starting from US$0.36
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Europe
from US$0.40
|
18,000
in stock
|
Buy Now |
|
TTI Europe
from US$0.73
|
8,000
in stock
|
Buy Now |
|
Newark Electronics
from US$1.19
|
6,171
in stock
|
Buy Now |
|
element14
from US$0.88
|
6,171
in stock
|
Buy Now |
|
Farnell
from US$0.98
|
6,171
in stock
|
Buy Now |
|
Conrad
from US$1.29
|
4,000
in stock
|
Buy Now |
|
Rutronik
from US$0.36
|
2,000
in stock
|
Buy Now |
|
|
Heilind Americas
from US$0.76
|
1,500
in stock
|
Buy Now |
|
TME
from US$0.63
|
777
in stock
|
Buy Now |
|
RS
from US$0.92
|
590
in stock
|
Buy Now |
|
Compona
from US$0.42
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.57
|
0
in stock
|
Buy Now |
|
EME
from US$0.50
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.0A |
| Voltage Maximum | 125V |
Physical |
|
|---|---|
| Actuator Type | Slider |
| Circuits Loaded | 10 |
| Color Resin | Natural |
| Contact Position | Top |
| Durability Mating Cycles Max | 30 |
| Flammability | 94V-0 |
| Mated Height | 2.70mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 428.620/mg |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pc Tail Length | 2.00mm |
| Pitch Mating Interface | 1.00mm |
| Pitch Termination Interface | 1.00mm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 1.0 FPC ZIFSMTHSGASSY10CKTEMB TPPKG | Heilind Europe |
| 1.00 MM FFC/FPC CONNECTOR 10CK | TTI Europe |
| Connector, Ffc/Fpc, 10Pos, 1Row, 1Mm | Newark Electronics |
| CONNECTOR, FFC/FPC, 10POS, 1ROW, 1MM | element14 |
| Molex FFC/FPC-Anschluss Polzahl Gesamt 10 Rastermaß: 1 mm 522071060 1 St. Tape on Full reel | Conrad |
| 10P FFC/FPC ZIF SMT 90° Au | Rutronik |
| Connector: FFC/FPC | TME |
| Molex 52207-1060 FPC Connector | RS |
| MOLEX 52207-1060 Plug FFC 10p SMT | Compona |
