522071260 Easy-On by Molex

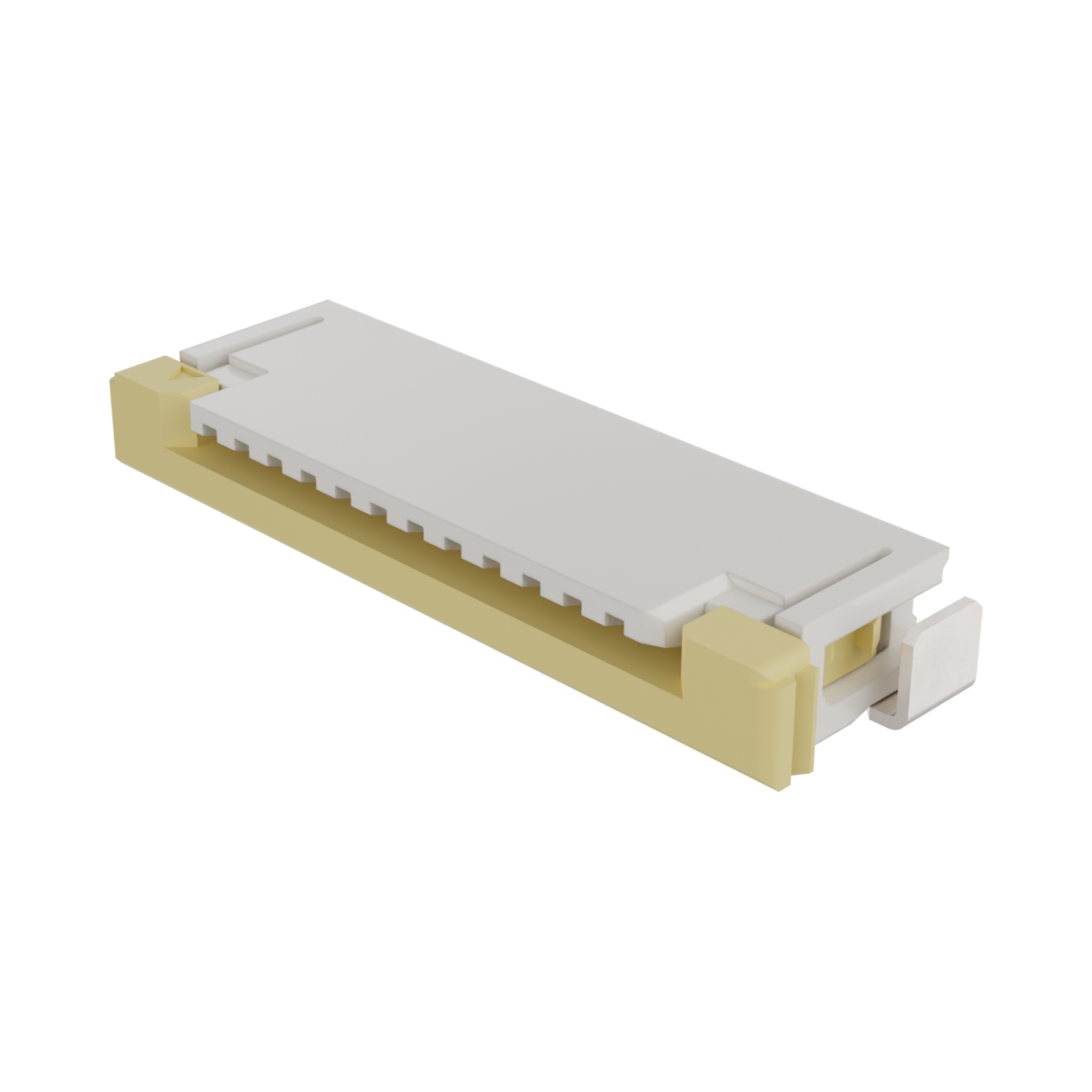

Easy-On FFC/FPC Connector, 1.00mm Pitch, Slider Series, Right-Angle, Top Contact, 2.70mm Height, 12 Circuits, Gold Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52207-1260,
0522071260 |
Where to Buy
Prices starting from US$0.45
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Europe
from US$0.72
|
10,000
in stock
|
Buy Now |
|
Newark Electronics
from US$1.42
|
2,497
in stock
|
Buy Now |
|
element14
from US$1.10
|
2,497
in stock
|
Buy Now |
|
Farnell
from US$1.16
|
2,497
in stock
|
Buy Now |
|
Conrad
from US$1.68
|
1,000
in stock
|
Buy Now |
|
RS
from US$1.43
|
820
in stock
|
Buy Now |
|
TME
from US$0.90
|
786
in stock
|
Buy Now |
|
Compona
from US$0.48
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.85
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.45
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.91
|
0
in stock
|
Buy Now |
|
EME
from US$0.57
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.0A |
| Voltage Maximum | 125V |
Physical |
|
|---|---|
| Actuator Type | Slider |
| Circuits Loaded | 12 |
| Color Resin | Natural |
| Contact Position | Top |
| Durability Mating Cycles Max | 30 |
| Flammability | 94V-0 |
| Mated Height | 2.70mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 487.524/mg |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pc Tail Length | 2.00mm |
| Pitch Mating Interface | 1.00mm |
| Pitch Termination Interface | 1.00mm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 1.00 MM FFC/FPC CONNECTOR 12CK | TTI Europe |
| Connector, Ffc/Fpc, 12Pos, 1Row, 1Mm | Newark Electronics |
| CONNECTOR, FFC/FPC, 12POS, 1ROW, 1MM | element14 |
| Molex FFC/FPC-Anschluss Polzahl Gesamt 12 Rastermaß: 1 mm 522071260 1 St. Tape on Full reel | Conrad |
| Molex 52207-1260 FPC Connector | RS |
| Connector: FFC/FPC | TME |
| MOLEX 52207-1260 Plug FFC 12p SMT | Compona |
| 1.0 FPC ZIFSMTHSGASSY12CKTEMB TPPKG | Heilind Americas |
| 1.00MM REC 12P RA SMT TOP | TTI Asia |
