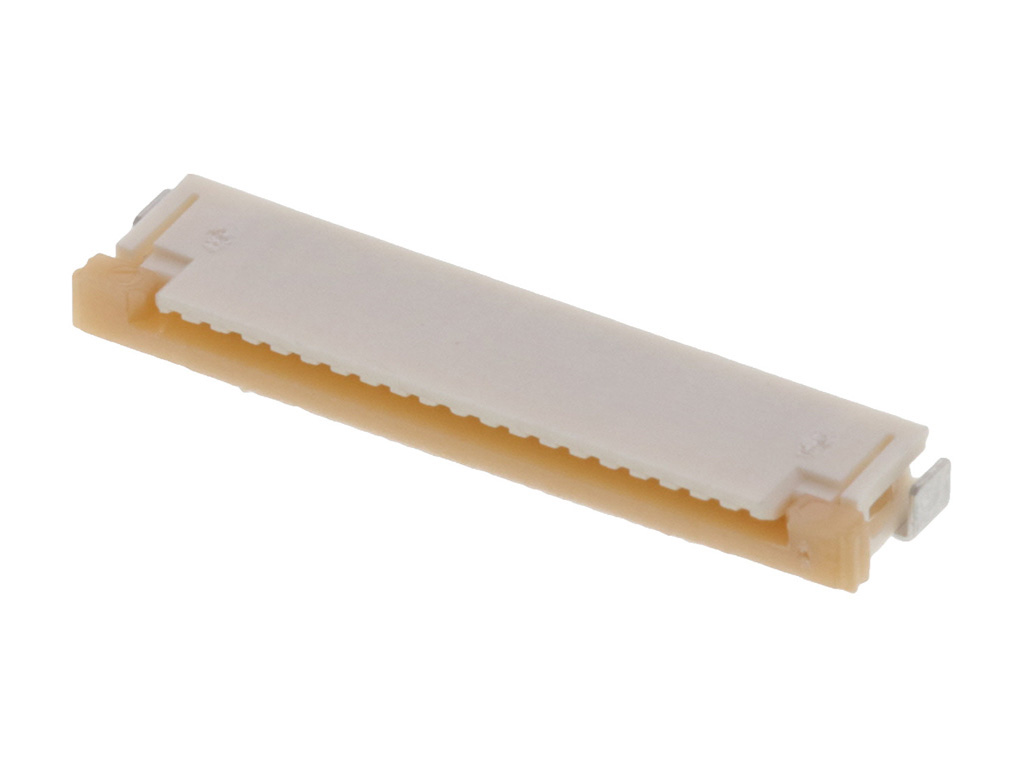

522072033 Easy-On by Molex
Easy-On FFC/FPC Connector, 1.00mm Pitch, Slider Series, Right-Angle, Top Contact, 2.70mm Height, 20 Circuits, Tin-Silver-Bismuth Plating
| Status: | Obsolete |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52207-2033,
0522072033 |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.0A |
| Voltage Maximum | 125V |
Physical |
|
|---|---|
| Actuator Type | Slider |
| Circuits Loaded | 20 |
| Color Resin | Natural |
| Contact Position | Top |
| Durability Mating Cycles Max | 30 |
| Flammability | 94V-0 |
| Mated Height | 2.70mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin-Silver-Bismuth |
| Material Plating Termination | Tin-Silver-Bismuth |
| Material Resin | Nylon |
| Net Weight | 725.000/mg |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | Yes |
| Pc Tail Length | 2.00mm |
| Pitch Mating Interface | 1.00mm |
| Pitch Termination Interface | 1.00mm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| RECEPTACLE 1.0MM FFC/FPC RIGHT ANGLE,20W | RS Americas |
| Molex FFC/FPC-Anschluss Polzahl Gesamt 20 Rastermaß: 1 mm 52207-2033 1 St. Tape on Mini reel | Conrad |
| CONNECTOR, FFC/FPC, 20POS, 1ROW, 1MM | Farnell |
| Ffc/Fpc Board Connector, 52207 Series, Surface Mount, Receptacle, 20, Top, 1 Mm Rohs Compliant: Yes |Molex 52207-2033 | Newark Electronics |
| Conn FFC/FPC Connector SKT 20 POS 1mm Solder RA SMD Embossed T/R | Avnet Abacus |
| 1.0 FPC HSG ASSY ZIF SMT 20CKT | TTI Asia |
