522072460 Easy-On by Molex

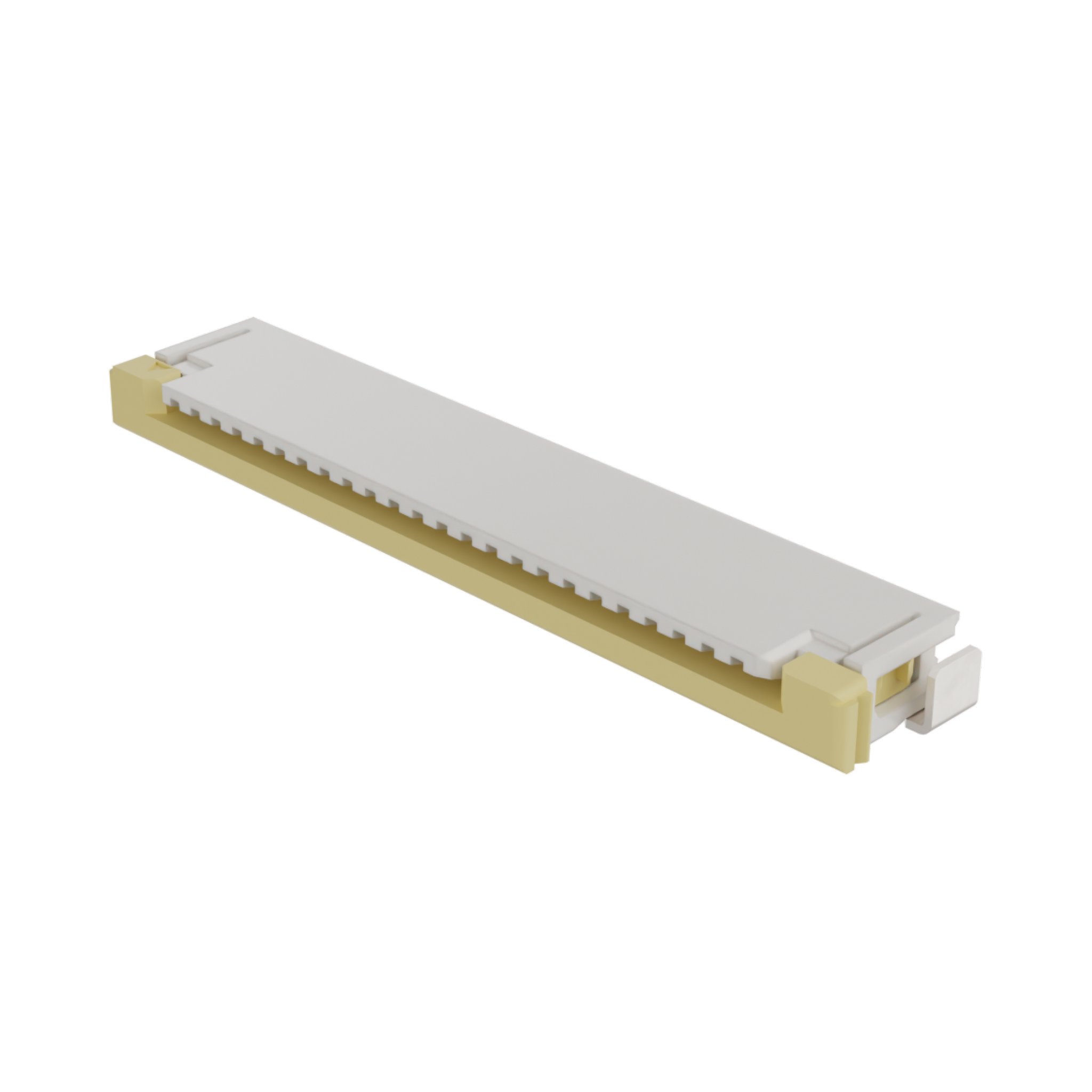

Easy-On FFC/FPC Connector, 1.00mm Pitch, Slider Series, Right-Angle, Top Contact, 2.70mm Height, 24 Circuits, Gold Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52207-2460,
0522072460 |
Where to Buy
Prices starting from US$0.97
| Distributor | Stock | ||
|---|---|---|---|
|
TME
from US$1.16
|
3,000
in stock
|
Buy Now |
|
element14
from US$1.76
|
3,000
in stock
|
Buy Now |
|
Conrad
from US$2.69
|
3,000
in stock
|
Buy Now |
|
Farnell
from US$1.84
|
3,000
in stock
|
Buy Now |
|
Rutronik
from US$1.07
|
2,000
in stock
|
Buy Now |
|
RS
from US$2.01
|
60
in stock
|
Buy Now |
|
Newark Electronics
from US$1.60
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$1.19
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.68
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.97
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.65
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.0A |
| Voltage Maximum | 125V |
Physical |
|
|---|---|
| Actuator Type | Slider |
| Circuits Loaded | 24 |
| Color Resin | Natural |
| Contact Position | Top |
| Durability Mating Cycles Max | 30 |
| Flammability | 94V-0 |
| Mated Height | 2.70mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 840.748/mg |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pc Tail Length | 2.00mm |
| Pitch Mating Interface | 1.00mm |
| Pitch Termination Interface | 1.00mm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Connector: FFC/FPC | TME |
| FFC/FPC CONN, R/A RCPT, 24POS, 1ROW | element14 |
| Molex FFC/FPC-Anschluss Polzahl Gesamt 24 Rastermaß: 1 mm 522072460 1 St. Tape on Full reel | Conrad |
| 24P FFC/FPC ZIF SMT 90° Au | Rutronik |
| Molex 52207-2460 FPC Connector | RS |
| 1.0 Fpc Zifsmthsgassy24Cktembstppkg Rohs Compliant: Yes |Molex 52207-2460 | Newark Electronics |
| EASY-ON FFC/FPC CONNECTOR | TTI Europe |
| 1.0 FPC ZIFSMTHSGASSY24CKTEMB TPPKG | Heilind Americas |
| 1.00MM REC 24P RA SMT TOP AU | TTI Asia |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 522072460?
Additional datasheets, footprints and schematics for 522072460 are listed on our Part Details page. You can also find images and similar parts to 522072460 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 522072460 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 522072460 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 522072460 fall under?
The 522072460 is listed under FFC / FPC Connectors.
Can I view similar or alternative parts?
You can view similar parts to 522072460 when available in the FFC / FPC Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 522072460 you can contact the distributor directly for product support, shipping queries etc.
Is the 522072460 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 522072460 have stock available?
Authorised distributors including TME, element14, Conrad, Farnell and Rutronik have stock available or on a lead time for 522072460.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 522072460 often in real-time on the comparison pages.
What if I can't find stock of 522072460?
You can fill out our help required form which you can use to request a quote for 522072460 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
