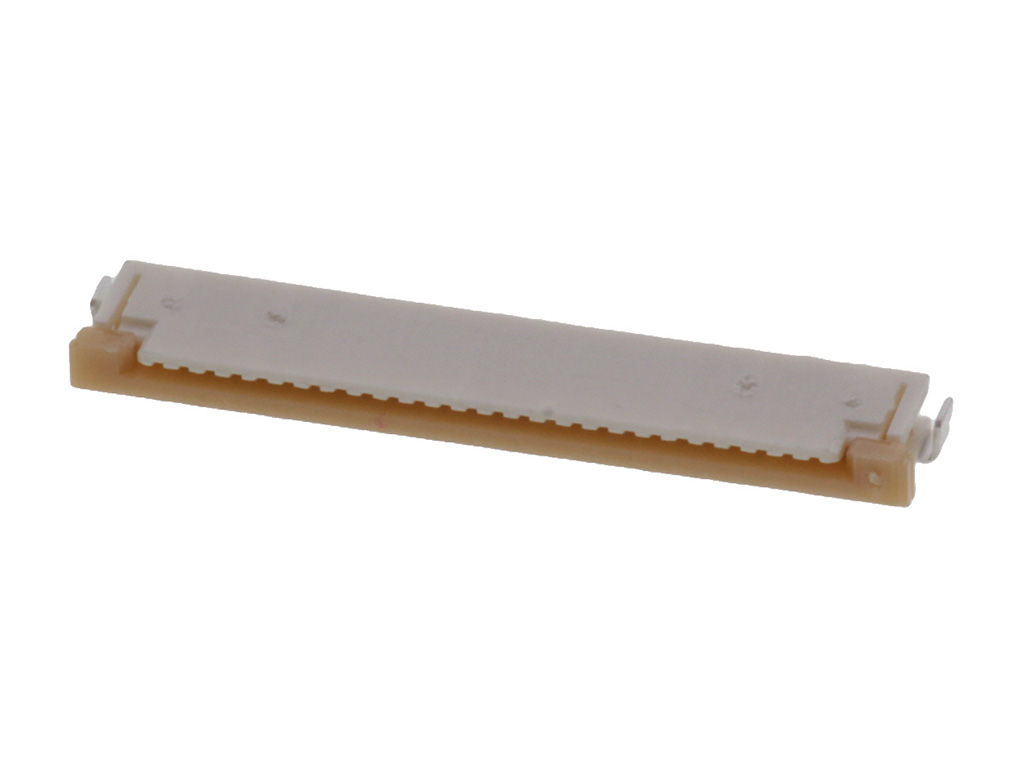

522072633 Easy-On by Molex
Easy-On FFC/FPC Connector, 1.00mm Pitch, Slider Series, Right-Angle, Top Contact, 2.70mm Height, 26 Circuits, Tin-Silver-Bismuth Plating
| Status: | Obsolete |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52207-2633,
0522072633 |
Where to Buy
Prices starting from US$1.33
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$1.47
|
14,000
in stock
|
Buy Now |
|
Conrad
from US$2.55
|
14,000
in stock
|
Buy Now |
|
Farnell
from US$1.63
|
14,000
in stock
|
Buy Now |
|
element14
from US$1.45
|
1,000
in stock
|
Buy Now |
|
Offical Electronic
-
|
200
in stock
|
Buy Now |
|
Avnet America
from US$1.33
|
0
in stock
|
Buy Now |
|
TME
from US$1.60
|
0
in stock
|
Buy Now |
|
RS Americas
from US$2.15
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.0A |
| Voltage Maximum | 125V |
Physical |
|
|---|---|
| Actuator Type | Slider |
| Circuits Loaded | 26 |
| Color Resin | Natural |
| Contact Position | Top |
| Durability Mating Cycles Max | 30 |
| Flammability | 94V-0 |
| Mated Height | 2.70mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin-Silver-Bismuth |
| Material Plating Termination | Tin-Silver-Bismuth |
| Material Resin | Nylon |
| Net Weight | 902.200/mg |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | Yes |
| Pc Tail Length | 2.00mm |
| Pitch Mating Interface | 1.00mm |
| Pitch Termination Interface | 1.00mm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Easy-On Ffc/Fpc Connector, 1.00Mm Pitch, Slider Series, Right-Angle, Top Contact, 2.70Mm Height, 26 Circuits, Tin-Silver-Bismuth Plating |Molex 52207-2633 | Newark Electronics |
| Molex FFC/FPC-Anschluss Polzahl Gesamt 26 Rastermaß: 1 mm 522072633 1 St. Tape on Full reel | Conrad |
| FPC CONN, RCPT, 26POS, 1ROW, 1MM | Farnell |
| CONNECTOR, FFC/FPC, 26POS, 1ROW, 1MM | element14 |
| Conn FFC/FFP Connector RCP 26 POS 1mm Solder RA SMD | Avnet America |
| Connector: FFC/FPC | TME |
| 52207 SERIES 1MM PITCH 26 WAY RIGHT ANGLE FEMALE FPC CONNECTOR, ZIF TOP CONTACT | RS Americas |
