522072660 Easy-On by Molex

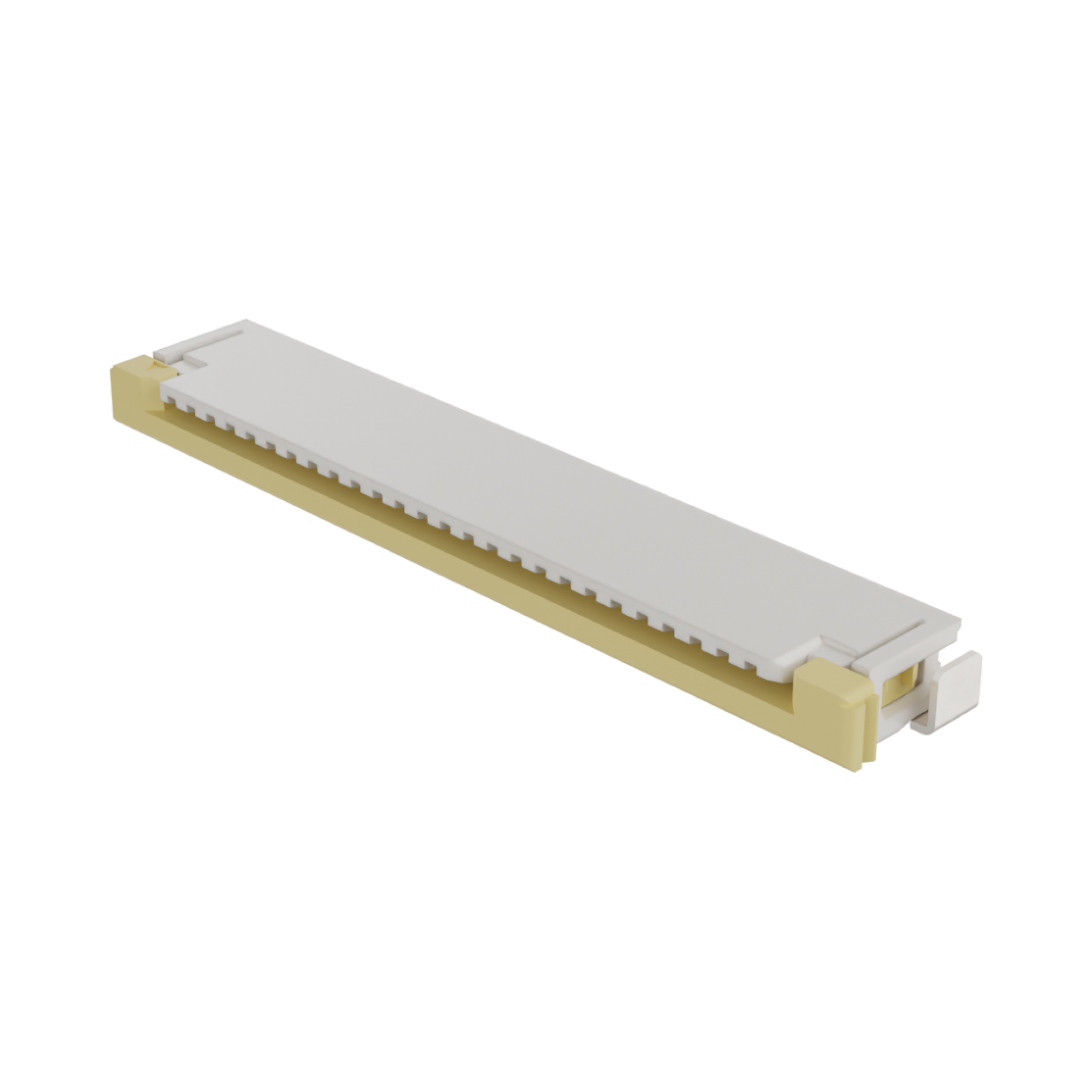

Easy-On FFC/FPC Connector, 1.00mm Pitch, Slider Series, Right-Angle, Top Contact, 2.70mm Height, 26 Circuits, Gold Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52207-2660,
0522072660 |
Where to Buy
Prices starting from US$1.26
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$1.96
|
1,000
in stock
|
Buy Now |
|
Farnell
from US$2.00
|
1,000
in stock
|
Buy Now |
|
Conrad
from US$2.71
|
152
in stock
|
Buy Now |
|
Rutronik
from US$1.28
|
0
in stock
|
Buy Now |
|
Avnet America
from US$1.26
|
0
in stock
|
Buy Now |
|
RS Americas
from US$2.34
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$1.64
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$1.34
|
0
in stock
|
Buy Now |
|
Sager
from US$1.77
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.70
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.0A |
| Voltage Maximum | 125V |
Physical |
|
|---|---|
| Actuator Type | Slider |
| Circuits Loaded | 26 |
| Color Resin | Natural |
| Contact Position | Top |
| Durability Mating Cycles Max | 30 |
| Flammability | 94V-0 |
| Mated Height | 2.70mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 899.652/mg |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pc Tail Length | 2.00mm |
| Pitch Mating Interface | 1.00mm |
| Pitch Termination Interface | 1.00mm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Fpc Connector, Rcpt, 26Pos, 0.3Mm, Smd | Newark Electronics |
| FPC CONNECTOR, RCPT, 26POS, 0.3MM, SMD | Farnell |
| Molex FFC/FPC-Anschluss Polzahl Gesamt 26 Rastermaß: 1 mm 522072660 1 St. Tape on Full reel | Conrad |
| 26P FFC/FPC ZIF SMT 90° Au | Rutronik |
| RECEPTACLE 1.0MM FFC/FPC SMT, R/A, ZIF,26W | RS Americas |
| 1.00MM REC 26P RA SMT TOP AU | TTI Americas |
| EASY-ON FFC/FPC CONNECTOR | TTI Europe |
| FFC & FPC Connectors 1.00MM REC 26P RA SMT TOP AU | Sager |
