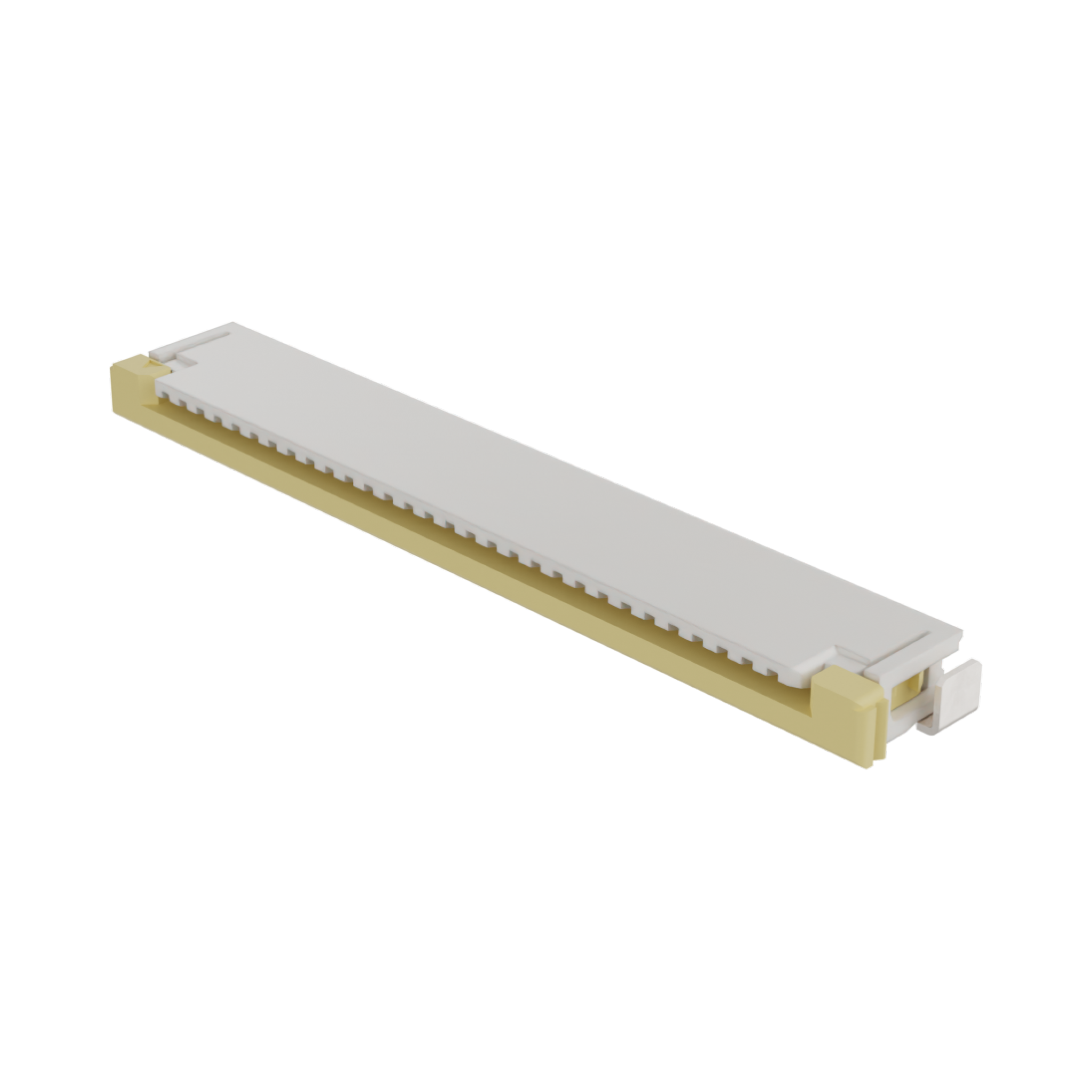

522073060 Easy-On by Molex
Easy-On FFC/FPC Connector, 1.00mm Pitch, Slider Series, Right-Angle, Top Contact, 2.70mm Height, 30 Circuits, Gold Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52207-3060,
0522073060 |
Where to Buy
Prices starting from US$1.17
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$2.04
|
12,565
in stock
|
Buy Now |
|
TME
from US$1.31
|
12,000
in stock
|
Buy Now |
|
Farnell
from US$2.20
|
11,750
in stock
|
Buy Now |
|
Newark Electronics
from US$2.32
|
2,639
in stock
|
Buy Now |
|
element14
from US$2.18
|
2,637
in stock
|
Buy Now |
|
RS
from US$1.64
|
0
in stock
|
Buy Now |
|
Avnet America
from US$1.91
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$2.72
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$1.74
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.91
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.17
|
0
in stock
|
Buy Now |
|
EME
from US$1.40
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.0A |
| Voltage Maximum | 125V |
Physical |
|
|---|---|
| Actuator Type | Slider |
| Circuits Loaded | 30 |
| Color Resin | Natural |
| Contact Position | Top |
| Durability Mating Cycles Max | 30 |
| Flammability | 94V-0 |
| Mated Height | 2.70mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 1017.360/mg |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pc Tail Length | 2.00mm |
| Pitch Mating Interface | 1.00mm |
| Pitch Termination Interface | 1.00mm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex FFC/FPC-Anschluss Polzahl Gesamt 30 Rastermaß: 1 mm 522073060 1 St. Tape on Full reel | Conrad |
| Connector: FFC/FPC | TME |
| FPC CONN, RCPT, 30POS, 1ROW, 1MM | Farnell |
| Connector, Ffc/Fpc, 30Pos, 1Row, 1Mm | Newark Electronics |
| CONNECTOR, FFC/FPC, 30POS, 1ROW, 1MM | element14 |
| Molex 52207-3060 FPC Connector | RS |
| Conn FPC Connector RCP 30 POS 1mm Solder RA SMD Embossed T/R | Avnet America |
| RECEPTACLE 1.0MM FFC/FPC SMT, R/A, ZIF,30W | RS Americas |
| 1.0MM REC SMT RA 30P | TTI Americas |
| 1.0 FPC ZIFSMTHSGASSY30CKTEMB TPPKG | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 522073060?
Additional datasheets, footprints and schematics for 522073060 are listed on our Part Details page. You can also find images and similar parts to 522073060 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 522073060 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 522073060 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 522073060 fall under?
The 522073060 is listed under FFC / FPC Connectors.
Can I view similar or alternative parts?
You can view similar parts to 522073060 when available in the FFC / FPC Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 522073060 you can contact the distributor directly for product support, shipping queries etc.
Is the 522073060 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 522073060 have stock available?
Authorised distributors including Conrad, TME, Farnell, Newark Electronics and element14 have stock available or on a lead time for 522073060.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 522073060 often in real-time on the comparison pages.
What if I can't find stock of 522073060?
You can fill out our help required form which you can use to request a quote for 522073060 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
