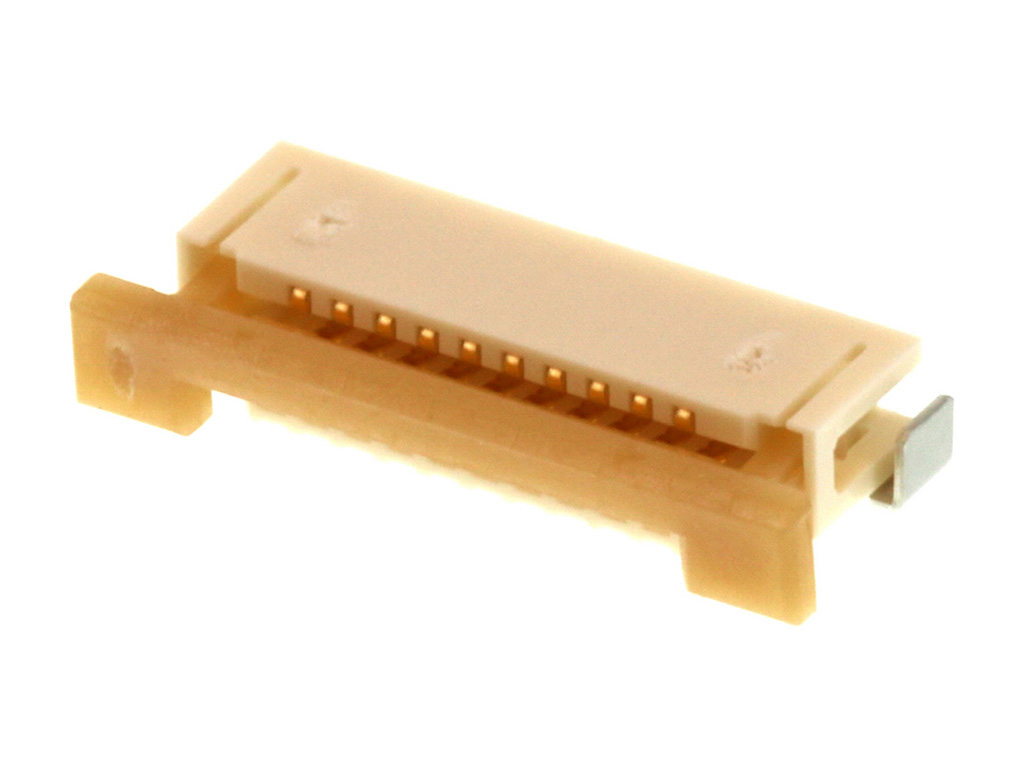

522711069 Easy-On by Molex
Easy-On FFC/FPC Connector, 1.00mm Pitch, Slider Series, Right-Angle, Bottom Contact, 3.00mm Height, 10 Circuits, Gold Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52271-1069,
0522711069 |
Where to Buy
Prices starting from US$0.25
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$1.35
|
23,000
in stock
|
Buy Now |
|
Farnell
from US$0.99
|
20,750
in stock
|
Buy Now |
|
TTI Europe
from US$0.73
|
20,000
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.49
|
10,000
in stock
|
Buy Now |
|
|
TTI Americas
from US$0.86
|
8,000
in stock
|
Buy Now |
|
Newark Electronics
from US$0.25
|
2,487
in stock
|
Buy Now |
|
RS Americas
from US$0.56
|
1,000
in stock
|
Buy Now |
|
element14
from US$0.87
|
1,000
in stock
|
Buy Now |
|
|
RS
from US$0.82
|
660
in stock
|
Buy Now |
|
Heilind Americas
from US$1.21
|
252
in stock
|
Buy Now |
|
TME
from US$0.78
|
48
in stock
|
Buy Now |
|
Avnet America
from US$0.75
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.41
|
0
in stock
|
Buy Now |
|
EME
from US$0.52
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Slider |
| Circuits Loaded | 10 |
| Color Resin | Natural |
| Contact Position | Bottom |
| Durability Mating Cycles Max | 30 |
| Flammability | 94V-0 |
| Mated Height | 3.00mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 494.450/mg |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pitch Mating Interface | 1.00mm |
| Pitch Termination Interface | 1.00mm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex FFC/FPC-Anschluss Polzahl Gesamt 10 Rastermaß: 1 mm 522711069 1 St. Tape on Full reel | Conrad |
| FPC CONN, RCPT, 10POS, 1ROW, 1MM | Farnell |
| EASY ON FFC/FPC CONNECTOR 10CK | TTI Europe |
| 1.00MM REC 10P RA SMT BOT | TTI Asia |
| Connector, Ffc/Fpc, 10Pos, 1Row, 1Mm | Newark Electronics |
| 52271 SERIES 1MM PITCH 10 WAY RIGHT ANGLE FPC CONNECTOR, ZIF BOTTOM CONTACT | RS Americas |
| CONNECTOR, FFC/FPC, 10POS, 1ROW, 1MM | element14 |
| Molex 52271-1069 FPC Connector | RS |
| CUT TAPE 1.0 FPCZIFSMTR/ABTMAU10 | Heilind Americas |
| Connector: FFC/FPC | TME |
| FFC/FPC Connector Socket 10 Position 1 mm Solder Right Angle Surface Mount Emboss T/R | Avnet America |
| 1.0 FPCZIFSMTR/ABTMAU10CKTEMB TPPKG | Heilind Europe |
