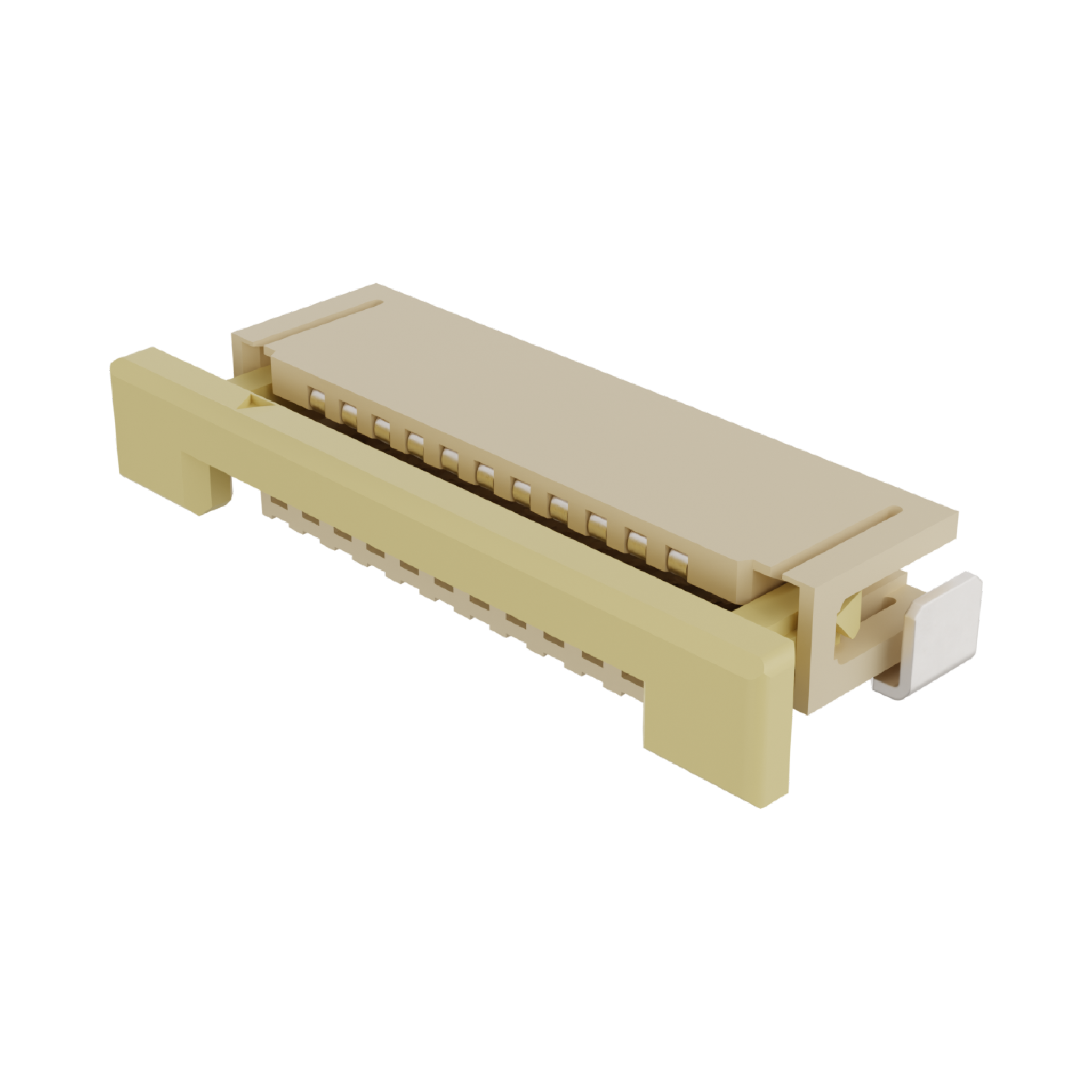

522711179 Easy-On by Molex
Easy-On FFC/FPC Connector, 1.00mm Pitch, Slider Series, Right-Angle, Bottom Contact, 3.00mm Height, 11 Circuits, Tin-Bismuth Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52271-1179,
0522711179 |
Where to Buy
Prices starting from US$0.37
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$0.77
|
23,310
in stock
|
Buy Now |
|
TME
from US$0.46
|
22,000
in stock
|
Buy Now |
|
Farnell
from US$0.77
|
21,250
in stock
|
Buy Now |
|
RS
from US$0.79
|
1,552
in stock
|
Buy Now |
|
Newark Electronics
from US$0.80
|
1,174
in stock
|
Buy Now |
|
element14
from US$0.87
|
1,174
in stock
|
Buy Now |
|
TTI Europe
from US$0.59
|
0
in stock
|
Buy Now |
|
Sager
from US$0.76
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.65
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.37
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.58
|
0
in stock
|
Buy Now |
|
EME
from US$0.46
|
0
in stock
|
Buy Now |
|
Rutronik
-
|
0
in stock
|
Buy Now |
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Slider |
| Circuits Loaded | 11 |
| Color Resin | Natural |
| Contact Position | Bottom |
| Durability Mating Cycles Max | 30 |
| Flammability | 94V-0 |
| Mated Height | 3.00mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin-Bismuth |
| Material Plating Termination | Tin-Bismuth |
| Material Resin | Nylon |
| Net Weight | 531.364/mg |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pitch Mating Interface | 1.00mm |
| Pitch Termination Interface | 1.00mm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex FFC/FPC-Anschluss Polzahl Gesamt 11 Rastermaß: 1 mm 522711179 1 St. Tape on Full reel | Conrad |
| Connector: FFC/FPC | TME |
| FPC CONN, RCPT, 11POS, 1ROW, 1MM | Farnell |
| Molex 52271-1179 FPC Connector | RS |
| Connector, Ffc/Fpc, 11Pos, 1Row, 1Mm | Newark Electronics |
| CONNECTOR, FFC/FPC, 11POS, 1ROW, 1MM | element14 |
| 1.00 MM FFC/FPC CONNECTOR 11CK | TTI Europe |
| FFC & FPC Connectors 1.00MM REC 11P RA SMT BOT | Sager |
| 1.0 FPC ZIF FOR SMT EMBSTP PK 11CKT | Heilind Americas |
| 1.00MM REC 11P RA SMT BOT | TTI Asia |
| 11P FFC/FPC ZIF SMT 90° Bott-Con 1.00mm | Rutronik |
| Conn FPC Connector SKT 11 POS 1mm Solder RA SMD Embossed T/R | Avnet Asia |
