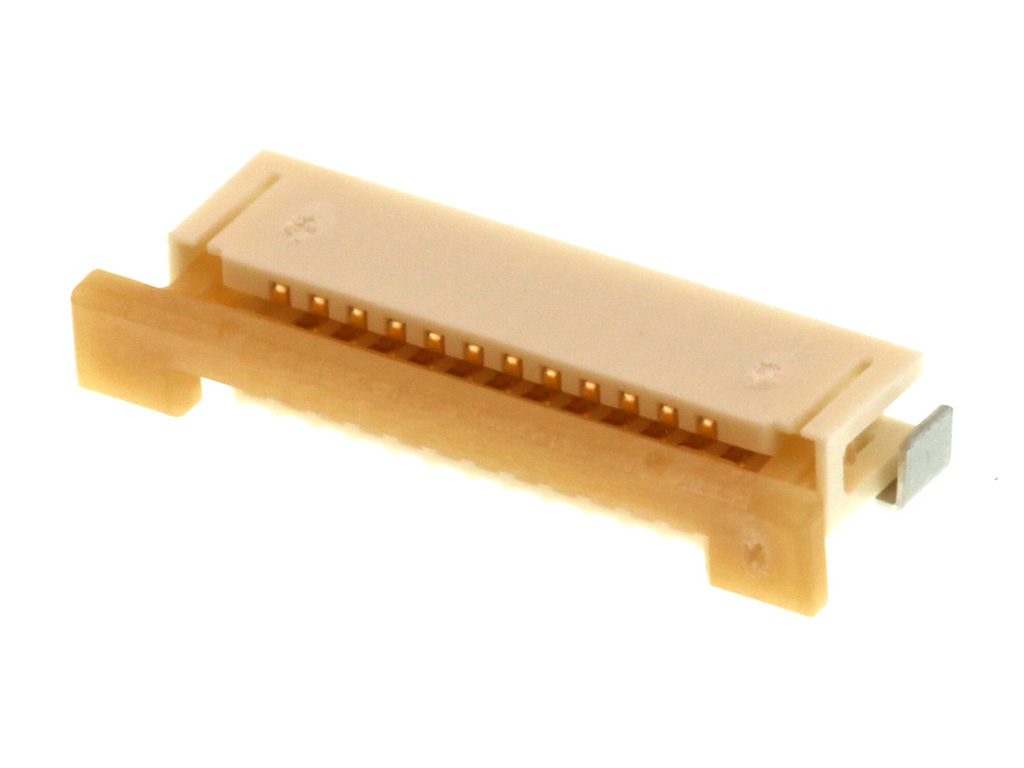

522711269 Easy-On by Molex
Easy-On FFC/FPC Connector, 1.00mm Pitch, Slider Series, Right-Angle, Bottom Contact, 3.00mm Height, 12 Circuits, Gold Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52271-1269,
0522711269 |
Where to Buy
Prices starting from US$0.46
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Europe
from US$0.64
|
51,000
in stock
|
Buy Now |
|
Newark Electronics
from US$0.56
|
12,000
in stock
|
Buy Now |
|
Conrad
from US$1.62
|
2,000
in stock
|
Buy Now |
|
|
TTI Americas
from US$0.58
|
2,000
in stock
|
Buy Now |
|
Farnell
from US$0.95
|
2,000
in stock
|
Buy Now |
|
element14
from US$0.99
|
1,188
in stock
|
Buy Now |
|
TME
from US$0.76
|
823
in stock
|
Buy Now |
|
RS
from US$0.94
|
340
in stock
|
Buy Now |
|
Avnet America
from US$0.73
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$1.16
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.62
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.46
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.47
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Slider |
| Circuits Loaded | 12 |
| Color Resin | Natural |
| Contact Position | Bottom |
| Durability Mating Cycles Max | 30 |
| Flammability | 94V-0 |
| Mated Height | 3.00mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 565.000/mg |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pitch Mating Interface | 1.00mm |
| Pitch Termination Interface | 1.00mm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 1.00 MM FFC/FPC CONNECTOR 12CK | TTI Europe |
| 1.0 Fpczifsmtr/Abtmau12Cktembstppkg Rohs Compliant: Yes |Molex 52271-1269 | Newark Electronics |
| Molex FFC/FPC-Anschluss Polzahl Gesamt 12 Rastermaß: 1 mm 522711269 1 St. Tape on Full reel | Conrad |
| 1.00MM REC 12P RA SMT BOT | TTI Americas |
| FPC CONN, RCPT, 12POS, 1ROW, 1MM | Farnell |
| CONNECTOR, FFC/FPC, 12POS, 1ROW, 1MM | element14 |
| Connector: FFC/FPC | TME |
| Molex 52271-1269 FPC Connector | RS |
| FFC / FPC Board Connector, 1 mm, 12 Contacts, Receptacle, Easy-On 52271, Surface Mount, Bottom | Avnet America |
| EASY-ON TYPE FFC/FPC CONNECTOR | RS Americas |
| 1.0 FPCZIFSMTR/ABTMAU12CKTEMB TPPKG | Heilind Americas |
