522711469 Easy-On by Molex

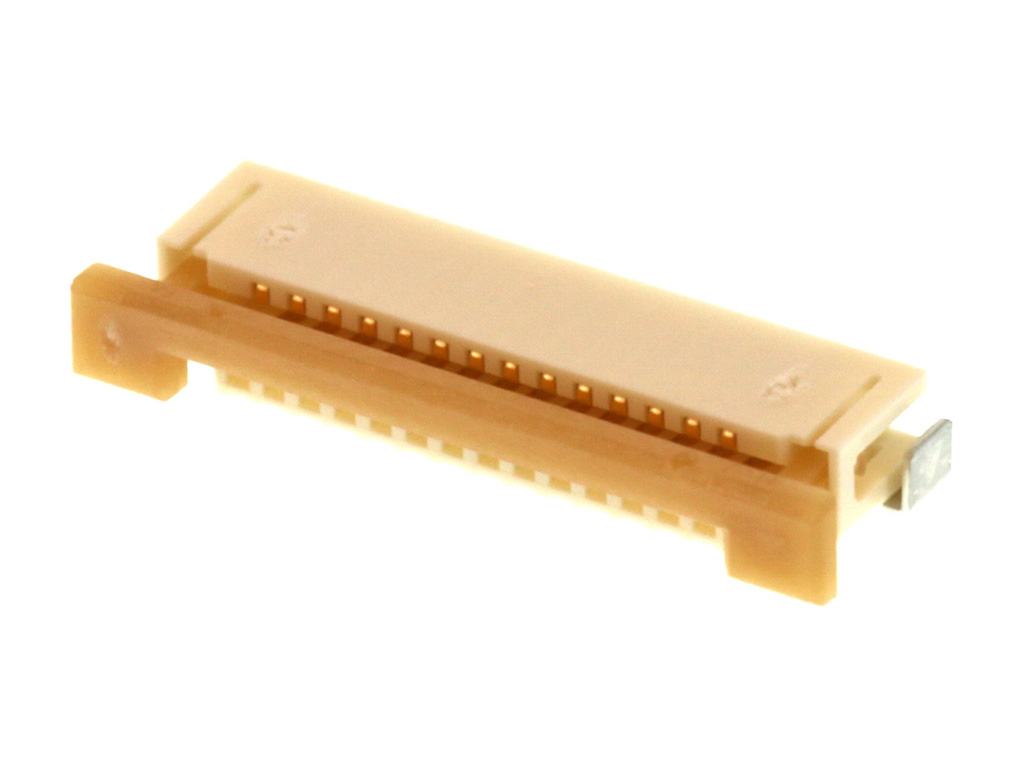

Easy-On FFC/FPC Connector, 1.00mm Pitch, Slider Series, Right-Angle, Bottom Contact, 3.00mm Height, 14 Circuits, Gold Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52271-1469,
0522711469 |
Where to Buy
Prices starting from US$0.52
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$1.39
|
15,000
in stock
|
Buy Now |
|
Farnell
from US$1.34
|
13,750
in stock
|
Buy Now |
|
Heilind Americas
from US$0.86
|
10,500
in stock
|
Buy Now |
|
Newark Electronics
from US$0.81
|
4,000
in stock
|
Buy Now |
|
element14
from US$1.27
|
4,000
in stock
|
Buy Now |
|
RS
from US$0.77
|
3,838
in stock
|
Buy Now |
|
TME
from US$1.15
|
0
in stock
|
Buy Now |
|
Compona
from US$0.63
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$0.80
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.52
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.66
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Slider |
| Circuits Loaded | 14 |
| Color Resin | Natural |
| Contact Position | Bottom |
| Durability Mating Cycles Max | 30 |
| Flammability | 94V-0 |
| Mated Height | 3.00mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 635.550/mg |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pitch Mating Interface | 1.00mm |
| Pitch Termination Interface | 1.00mm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex FFC/FPC-Anschluss Polzahl Gesamt 14 Rastermaß: 1 mm 522711469 1 St. Tape on Full reel | Conrad |
| FFC-FPC CONNNECTORS | Farnell |
| 1.0 FPCZIFSMTR/ABTMAU14CKTEMB TPPKG | Heilind Americas |
| Ffc/Fpc Conn, R/A Rcpt, 14Pos, 1Row Rohs Compliant: Yes |Molex 52271-1469 | Newark Electronics |
| FFC/FPC CONN, R/A RCPT, 14POS, 1ROW | element14 |
| Molex 52271-1469 FPC Connector | RS |
| Connector: FFC/FPC | TME |
| MOLEX 52271-1469 Plug FFC 14p SMT | Compona |
| 1.00 MM FFC/FPC CONNECTOR 14CK | TTI Europe |
| 1.00MM REC 14P RA SMT BOT AU | TTI Asia |
