522711479 Easy-On by Molex

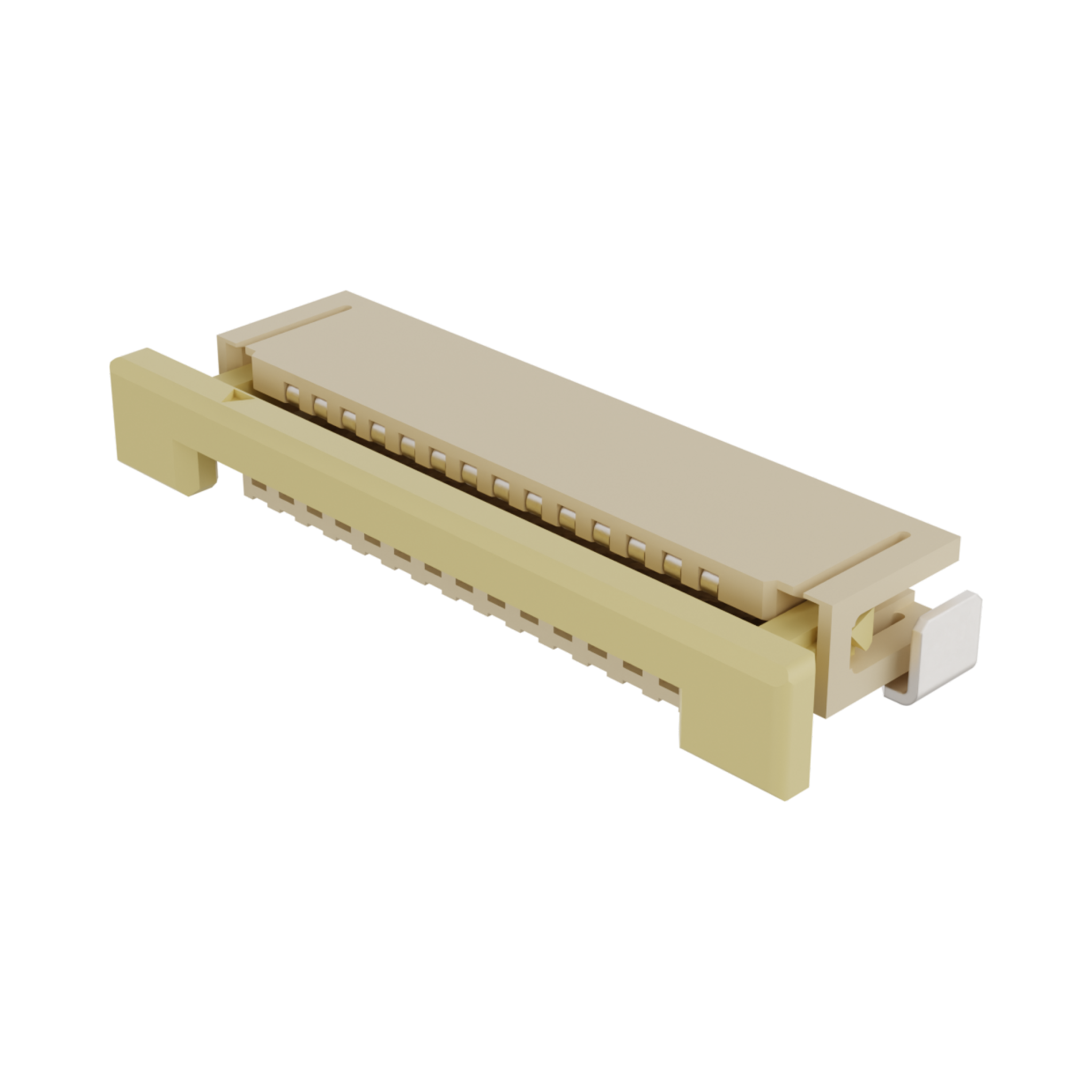

Easy-On FFC/FPC Connector, 1.00mm Pitch, Slider Series, Right-Angle, Bottom Contact, 3.00mm Height, 14 Circuits, Tin-Bismuth Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52271-1479,
0522711479 |
Where to Buy
Prices starting from US$0.34
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$1.27
|
46,000
in stock
|
Buy Now |
|
Farnell
from US$0.98
|
41,400
in stock
|
Buy Now |
|
Rutronik
from US$0.48
|
23,000
in stock
|
Buy Now |
|
TTI Europe
from US$0.68
|
14,000
in stock
|
Buy Now |
|
Newark Electronics
from US$1.28
|
1,062
in stock
|
Buy Now |
|
element14
from US$0.90
|
1,062
in stock
|
Buy Now |
|
CoreStaff
from US$0.41
|
758
in stock
|
Buy Now |
|
TME
from US$0.51
|
240
in stock
|
Buy Now |
|
RS
from US$1.59
|
40
in stock
|
Buy Now |
|
Compona
from US$0.41
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.84
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.44
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.34
|
0
in stock
|
Buy Now |
|
EME
from US$0.50
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Slider |
| Circuits Loaded | 14 |
| Color Resin | Natural |
| Contact Position | Bottom |
| Durability Mating Cycles Max | 30 |
| Flammability | 94V-0 |
| Mated Height | 3.00mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin-Bismuth |
| Material Plating Termination | Tin-Bismuth |
| Material Resin | Nylon |
| Net Weight | 637.636/mg |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pitch Mating Interface | 1.00mm |
| Pitch Termination Interface | 1.00mm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex FFC/FPC-Anschluss Polzahl Gesamt 14 Rastermaß: 1 mm 522711479 1 St. Tape on Full reel | Conrad |
| FPC CONN, RCPT, 14POS, 1ROW, 1MM | Farnell |
| 14P FFC/FPC ZIF SMT 90° Bott-Con 1.00mm | Rutronik |
| 1.00 MM FFC/FPC CONNECTOR 14CK | TTI Europe |
| Ffc/Fpc Board Connector, Zif, 52271 Series, Surface Mount, Receptacle, 14, Bottom, 1 Mm Rohs Compliant: Yes |Molex 52271-1479 | Newark Electronics |
| CONNECTOR, FFC/FPC, 14POS, 1ROW, 1MM | element14 |
| Connector: FFC/FPC | TME |
| Molex 52271-1479 FPC Connector | RS |
| MOLEX 52271-1479 Plug FFC 14p SMT | Compona |
| 1.0 FPC ZIF FOR SMT EMBSTP PK 14CKT | Heilind Americas |
| 1.00MM REC 14P RA BOT SMT | TTI Asia |
