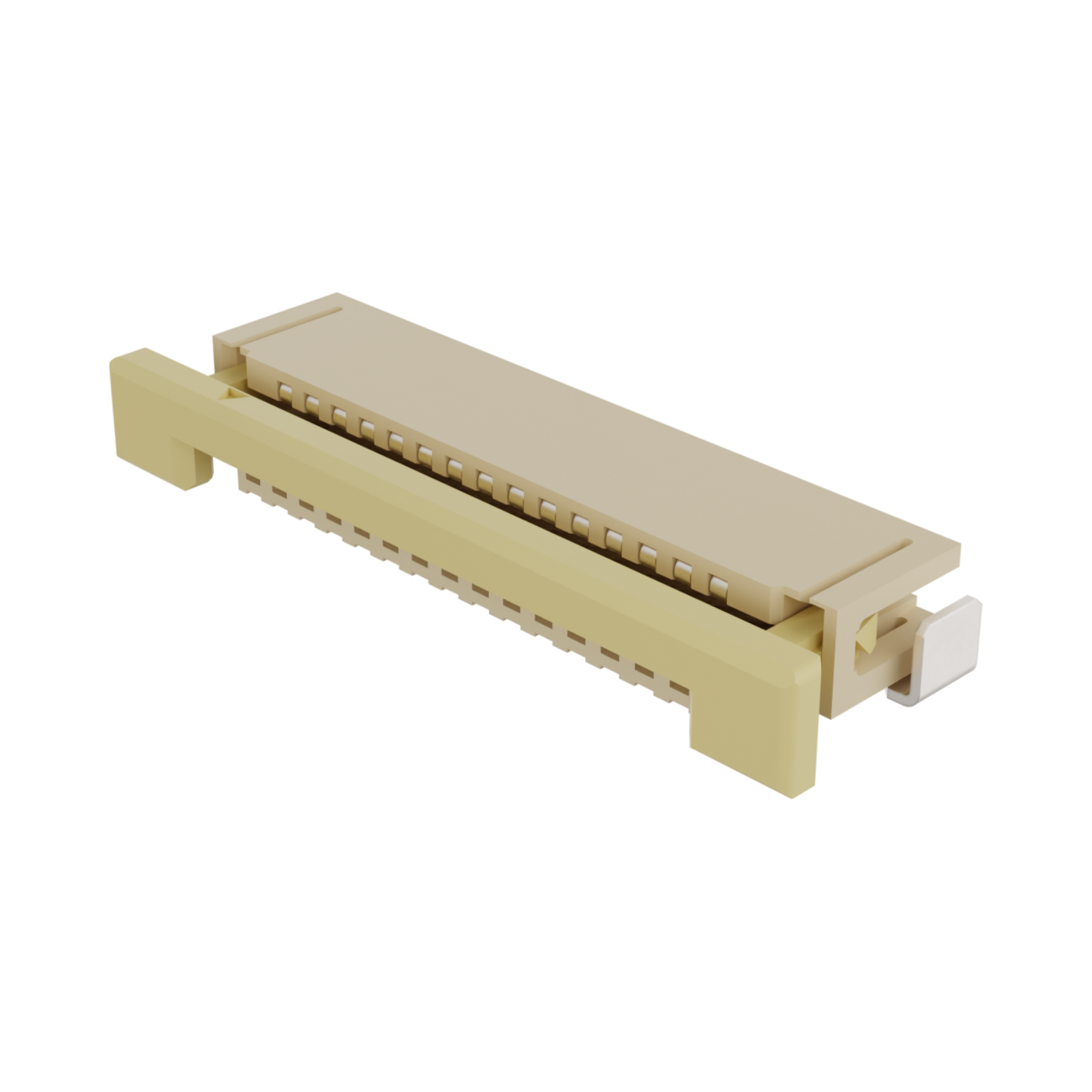

522711579 Easy-On by Molex
Easy-On FFC/FPC Connector, 1.00mm Pitch, Slider Series, Right-Angle, Bottom Contact, 3.00mm Height, 15 Circuits, Tin-Bismuth Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52271-1579,
0522711579 |
Where to Buy
Prices starting from US$0.44
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$1.65
|
73,000
in stock
|
Buy Now |
|
Farnell
from US$1.14
|
66,000
in stock
|
Buy Now |
|
TME
from US$0.44
|
49,000
in stock
|
Buy Now |
|
CoreStaff
from US$1.08
|
2,447
in stock
|
Buy Now |
|
Newark Electronics
from US$1.14
|
1,458
in stock
|
Buy Now |
|
element14
from US$1.01
|
1,458
in stock
|
Buy Now |
|
RS
from US$1.03
|
20
in stock
|
Buy Now |
|
TTI Europe
from US$0.82
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.84
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.45
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.62
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Slider |
| Circuits Loaded | 15 |
| Color Resin | Natural |
| Contact Position | Bottom |
| Durability Mating Cycles Max | 30 |
| Flammability | 94V-0 |
| Mated Height | 3.00mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin-Bismuth |
| Material Plating Termination | Tin-Bismuth |
| Material Resin | Nylon |
| Net Weight | 673.060/mg |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pitch Mating Interface | 1.00mm |
| Pitch Termination Interface | 1.00mm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex FFC/FPC-Anschluss Polzahl Gesamt 15 Rastermaß: 1 mm 522711579 1 St. Tape on Full reel | Conrad |
| FPC CONN, RCPT, 15POS, 1ROW, 1MM | Farnell |
| Connector: FFC/FPC | TME |
| Fpc Connector, Rcpt, 15Pos, 0.3Mm, Smd | Newark Electronics |
| FPC CONNECTOR, RCPT, 15POS, 0.3MM, SMD | element14 |
| Molex 52271-1579 FPC Connector | RS |
| 1.00 MM FFC/FPC CONNECTOR 15CK | TTI Europe |
| 1.0 FPC ZIF FOR SMT EMBST 15CKT 1000/REEL | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 522711579?
Additional datasheets, footprints and schematics for 522711579 are listed on our Part Details page. You can also find images and similar parts to 522711579 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 522711579 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 522711579 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 522711579 fall under?
The 522711579 is listed under FFC / FPC Connectors.
Can I view similar or alternative parts?
You can view similar parts to 522711579 when available in the FFC / FPC Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 522711579 you can contact the distributor directly for product support, shipping queries etc.
Is the 522711579 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 522711579 have stock available?
Authorised distributors including Conrad, Farnell, TME, CoreStaff and Newark Electronics have stock available or on a lead time for 522711579.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 522711579 often in real-time on the comparison pages.
What if I can't find stock of 522711579?
You can fill out our help required form which you can use to request a quote for 522711579 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
