522711669 Easy-On by Molex

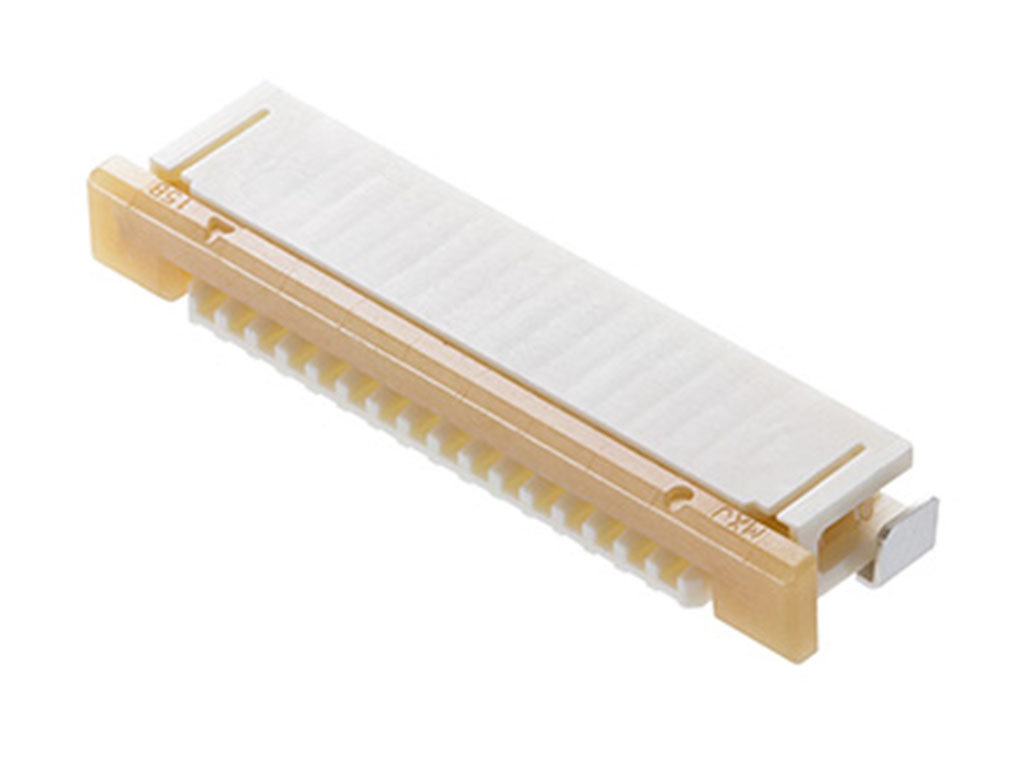

Easy-On FFC/FPC Connector, 1.00mm Pitch, Slider Series, Right-Angle, Bottom Contact, 3.00mm Height, 16 Circuits, Gold Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52271-1669,
0522711669 |
Where to Buy
Prices starting from US$0.52
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$2.00
|
14,995
in stock
|
Buy Now |
|
Farnell
from US$1.40
|
13,750
in stock
|
Buy Now |
|
TTI Europe
from US$0.89
|
5,000
in stock
|
Buy Now |
|
Newark Electronics
from US$1.67
|
951
in stock
|
Buy Now |
|
element14
from US$1.20
|
921
in stock
|
Buy Now |
|
Offical Electronic
-
|
164
in stock
|
Buy Now |
|
RS
from US$1.87
|
0
in stock
|
Buy Now |
|
Avnet America
from US$1.03
|
0
in stock
|
Buy Now |
|
TME
from US$0.62
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$1.70
|
0
in stock
|
Buy Now |
|
|
TTI Americas
from US$1.01
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.03
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.52
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.57
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Slider |
| Circuits Loaded | 16 |
| Color Resin | Natural |
| Contact Position | Bottom |
| Durability Mating Cycles Max | 30 |
| Flammability | 94V-0 |
| Mated Height | 3.00mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 706.100/mg |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pitch Mating Interface | 1.00mm |
| Pitch Termination Interface | 1.00mm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex FFC/FPC-Anschluss Polzahl Gesamt 16 Rastermaß: 1 mm 522711669 1 St. Tape on Full reel | Conrad |
| FPC CONN, RCPT, 16POS, 1ROW, 1MM | Farnell |
| 1.00 MM FFC/FPC CONNECTOR 16CK | TTI Europe |
| Ffc/Fpc Board Connector, 52271 Series, Surface Mount, Receptacle, 16, Bottom, 1 Mm Rohs Compliant: Yes |Molex 52271-1669 | Newark Electronics |
| CONNECTOR, FFC/FPC, 16POS, 1ROW, 1MM | element14 |
| Molex 52271-1669 FPC Connector | RS |
| Conn FPC Connector SKT 16 POS 1mm Solder RA SMD Embossed T/R | Avnet America |
| Connector: FFC/FPC | TME |
| CONNECTOR 1.0MM, FFC/FPC R/A, SMT, ZIF,16W | RS Americas |
| 1.00MM REC 16P RA SMT BOT | TTI Americas |
| 1.0 FPCZIFSMTR/ABTMAU16CKTEMB TPPKG | Heilind Americas |
