522712079 Easy-On by Molex

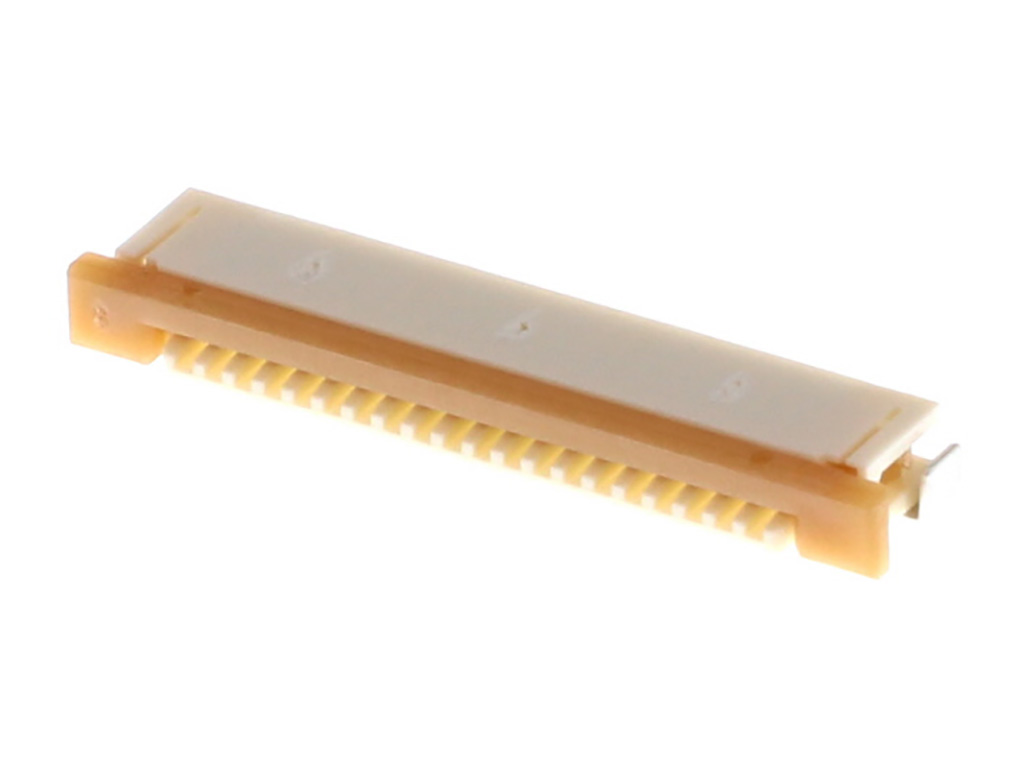

Easy-On FFC/FPC Connector, 1.00mm Pitch, Slider Series, Right-Angle, Bottom Contact, 3.00mm Height, 20 Circuits, Tin-Bismuth Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52271-2079,
0522712079 |
Where to Buy
Prices starting from US$0.44
| Distributor | Stock | ||
|---|---|---|---|
|
Rutronik
from US$0.72
|
21,000
in stock
|
Buy Now |
|
TTI Europe
from US$0.97
|
18,000
in stock
|
Buy Now |
|
|
TTI Americas
from US$1.02
|
12,000
in stock
|
Buy Now |
|
Sager
from US$1.14
|
12,000
in stock
|
Buy Now |
|
Newark Electronics
from US$1.66
|
5,845
in stock
|
Buy Now |
|
Farnell
from US$1.22
|
5,845
in stock
|
Buy Now |
|
Conrad
from US$1.65
|
3,000
in stock
|
Buy Now |
|
Heilind Americas
from US$0.88
|
1,500
in stock
|
Buy Now |
|
TME
from US$0.81
|
756
in stock
|
Buy Now |
|
RS
from US$0.95
|
50
in stock
|
Buy Now |
|
|
RS Americas
from US$0.44
|
5
in stock
|
Buy Now |
|
EME
from US$0.68
|
2
in stock
|
Buy Now |
|
Avnet Abacus
-
|
10,000
in stock
|
Buy Now |
|
Avnet America
from US$0.81
|
0
in stock
|
Buy Now |
|
Compona
from US$0.53
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.54
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.44
|
0
in stock
|
Buy Now |
|
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Slider |
| Circuits Loaded | 20 |
| Color Resin | Natural |
| Contact Position | Bottom |
| Durability Mating Cycles Max | 30 |
| Flammability | 94V-0 |
| Mated Height | 3.00mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin-Bismuth |
| Material Plating Termination | Tin-Bismuth |
| Material Resin | Nylon |
| Net Weight | 850.280/mg |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pitch Mating Interface | 1.00mm |
| Pitch Termination Interface | 1.00mm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 20P FFC/FPC ZIF SMT 90° Bott-Con 1.00mm | Rutronik |
| 1.00 MM FFC/FPC CONNECTOR 20CK | TTI Europe |
| 1.00MM REC 20P RA SMT BOT | TTI Americas |
| FFC & FPC Connectors 1.00MM REC 20P RA SMT BOT | Sager |
| Ffc/Fpc Board Connector, Zif, Easy-On 52271 Series, Surface Mount, Receptacle, 20, Bottom, 1 Mm Rohs Compliant: Yes |Molex 52271-2079 | Newark Electronics |
| CONNECTOR, FFC/FPC, 20POS, 1ROW, 1MM | Farnell |
| Molex FFC/FPC-Anschluss Polzahl Gesamt 20 Rastermaß: 1 mm 522712079 1 St. Tape on Full reel | Conrad |
| 1.0 FPC ZIF FOR SMT EMBSTP PK 20CKT | Heilind Americas |
| Connector: FFC/FPC | TME |
| Molex 52271-2079 FPC Connector | RS |
| 20 WAY R/A BOTTOM FFC ZIF CONNECTOR,1MM | RS Americas |
| FFC / FPC Board Connector, ZIF, 1 mm, 20 Contacts, Receptacle, 52271, Surface Mount, Bottom | Avnet Abacus |
| MOLEX 52271-2079 Plug FFC 20p SMT | Compona |
