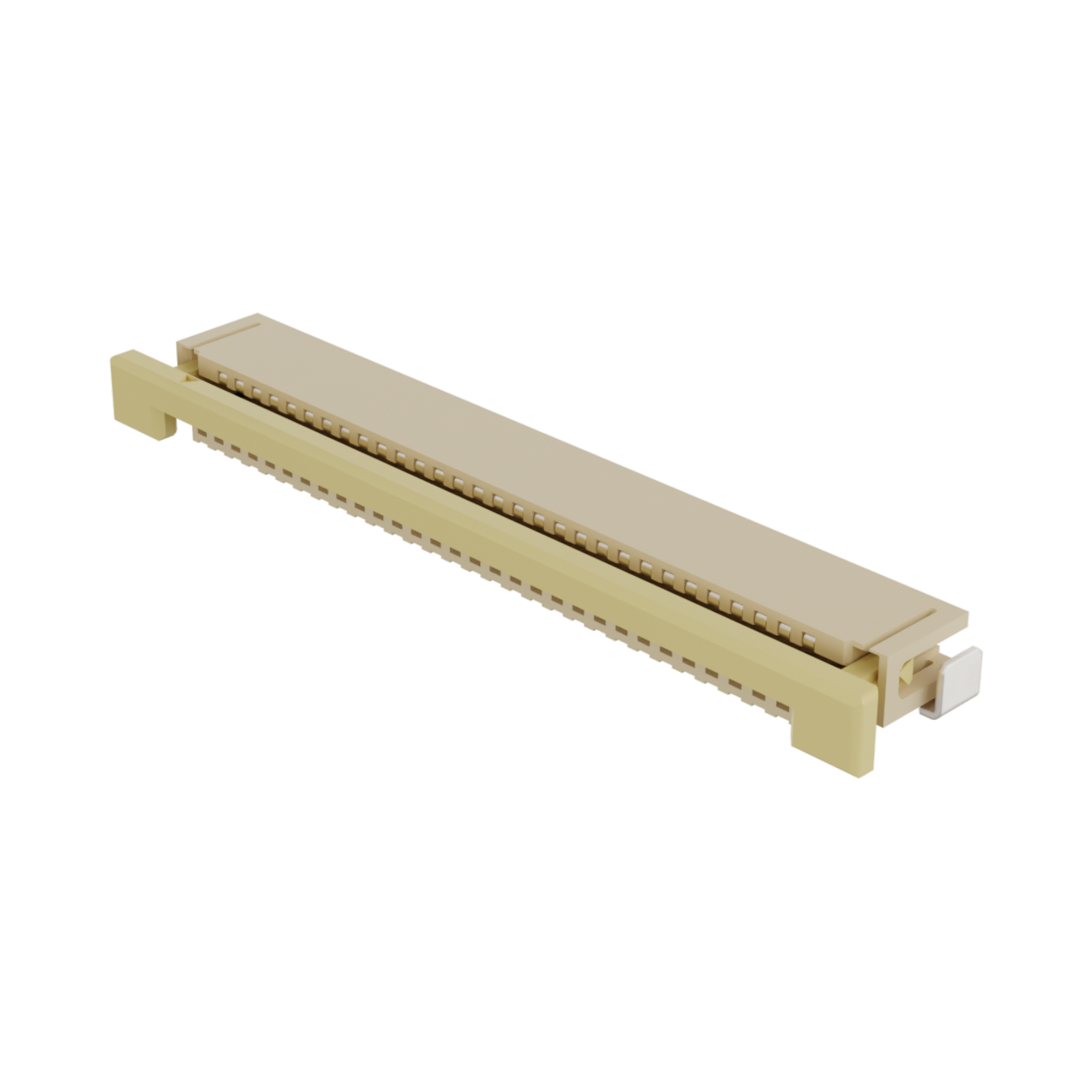

522713079 Easy-On by Molex
Easy-On FFC/FPC Connector, 1.00mm Pitch, Slider Series, Right-Angle, Bottom Contact, 3.00mm Height, 30 Circuits, Tin-Bismuth Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52271-3079,
0522713079 |
Where to Buy
Prices starting from US$0.78
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Americas
from US$1.34
|
8,000
in stock
|
Buy Now |
|
|
TTI Europe
from US$1.24
|
3,000
in stock
|
Buy Now |
|
Heilind Americas
from US$1.40
|
2,250
in stock
|
Buy Now |
|
Conrad
from US$2.37
|
750
in stock
|
Buy Now |
|
RS
from US$1.44
|
310
in stock
|
Buy Now |
|
element14
from US$1.79
|
193
in stock
|
Buy Now |
|
Farnell
from US$1.98
|
193
in stock
|
Buy Now |
|
Newark Electronics
from US$1.76
|
0
in stock
|
Buy Now |
|
Avnet America
from US$1.60
|
0
in stock
|
Buy Now |
|
TME
from US$1.25
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$1.92
|
0
in stock
|
Buy Now |
|
Compona
from US$0.88
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.78
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.09
|
0
in stock
|
Buy Now |
|
EME
from US$0.98
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Slider |
| Circuits Loaded | 30 |
| Color Resin | Natural |
| Contact Position | Bottom |
| Durability Mating Cycles Max | 30 |
| Flammability | 94V-0 |
| Mated Height | 3.00mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin-Bismuth |
| Material Plating Termination | Tin-Bismuth |
| Material Resin | Nylon |
| Net Weight | 1374.672/mg |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pitch Mating Interface | 1.00mm |
| Pitch Termination Interface | 1.00mm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 1.00MM REC 30P RA SMT BOT | TTI Americas |
| 1.00 MM FFC/FPC CONNECTOR 30CK | TTI Europe |
| 1.0 FPC ZIF FOR SMT EMBSTP PK 30CKT | Heilind Americas |
| Molex FFC/FPC-Anschluss Polzahl Gesamt 30 Rastermaß: 1 mm 522713079 1 St. Tape on Full reel | Conrad |
| Molex 52271-3079 FPC Connector | RS |
| CONNECTOR, FFC/FPC, 30POS, 1ROW, 1MM | element14 |
| Connector, Ffc/Fpc, 30Pos, 1Row, 1Mm | Newark Electronics |
| Conn FFC/FPC Socket 30 POS 1mm Solder RA Surface Mount | Avnet America |
| Connector: FFC/FPC | TME |
| 30 WAY R/A BOTTOM FFC ZIF CONNECTOR,1MM | RS Americas |
| MOLEX 52271-3079 Plug FFC 30p SMT | Compona |
