524180410 SlimStack by Molex

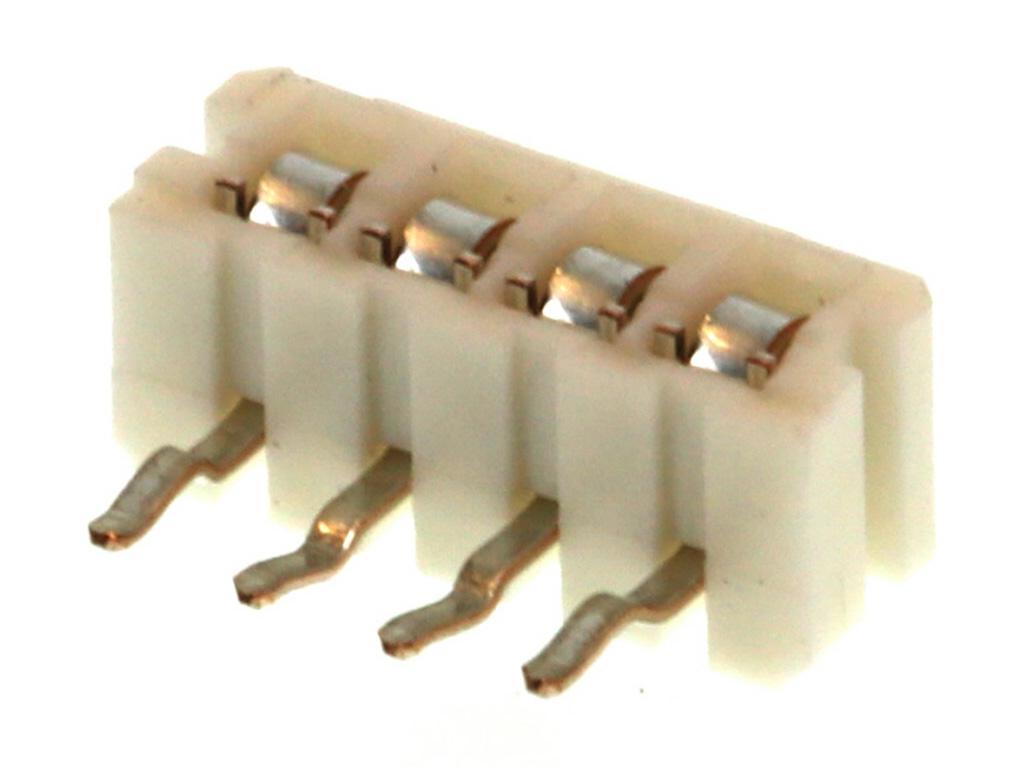

2.00mm Pitch SlimStack Board-to-Board Receptacle, Right-Angle, Single Row, Friction Lock, 4 Circuits
| Status: | Not Recommended For New Design |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52418-0410,
0524180410 |
Where to Buy
Prices starting from US$0.0390
| Distributor | Stock | ||
|---|---|---|---|
|
Farnell
from US$0.43
|
151,462
in stock
|
Buy Now |
|
Newark Electronics
from US$0.0390
|
257
in stock
|
Buy Now |
|
Avnet Abacus
-
|
6,000
in stock
|
Buy Now |
|
RS
from US$0.26
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.21
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.54
|
0
in stock
|
Buy Now |
|
element14
from US$0.33
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$0.25
|
0
in stock
|
Buy Now |
|
Sager
from US$0.30
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.30
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.11
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.08
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | SlimStack |
|---|---|
| Application | Board-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Voltage Maximum | 125V |
Physical |
|
|---|---|
| Circuits Loaded | 4 |
| Circuits Maximum | 4 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 30 |
| Glow Wire Capable | No |
| Mated Height | 3.95mm |
| Mated Width | 6.00mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Polyester |
| Net Weight | 200.600/mg |
| Number Of Rows | 1 |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 2.00mm |
| Plating Min Mating | 0.914µm |
| Plating Min Termination | 0.914µm |
| Polarized To Pcb | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole - Kinked Pin |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| CONN, R/A RCPT, 4POS, 1ROW, 2MM | Farnell |
| Connector, Rcpt, 4Pos, 1Row, 2Mm | Newark Electronics |
| PCB Receptacle, Board-to-Board, Signal, 2 mm, 1 Rows, 4 Contacts, Through Hole Mount Right Angle | Avnet Abacus |
| Molex 52418-0410 PCB Socket | RS |
| 4CKT R/A B-B HOUS ASSY | RS Americas |
| CONNECTOR, RCPT, 4POS, 1ROW, 2MM | element14 |
| B/B R/A ASSY 2MM 04CKT | TTI Americas |
| Board to Board & Mezzanine Connectors 2.00MM REC 04P RA | Sager |
