524181010 SlimStack by Molex

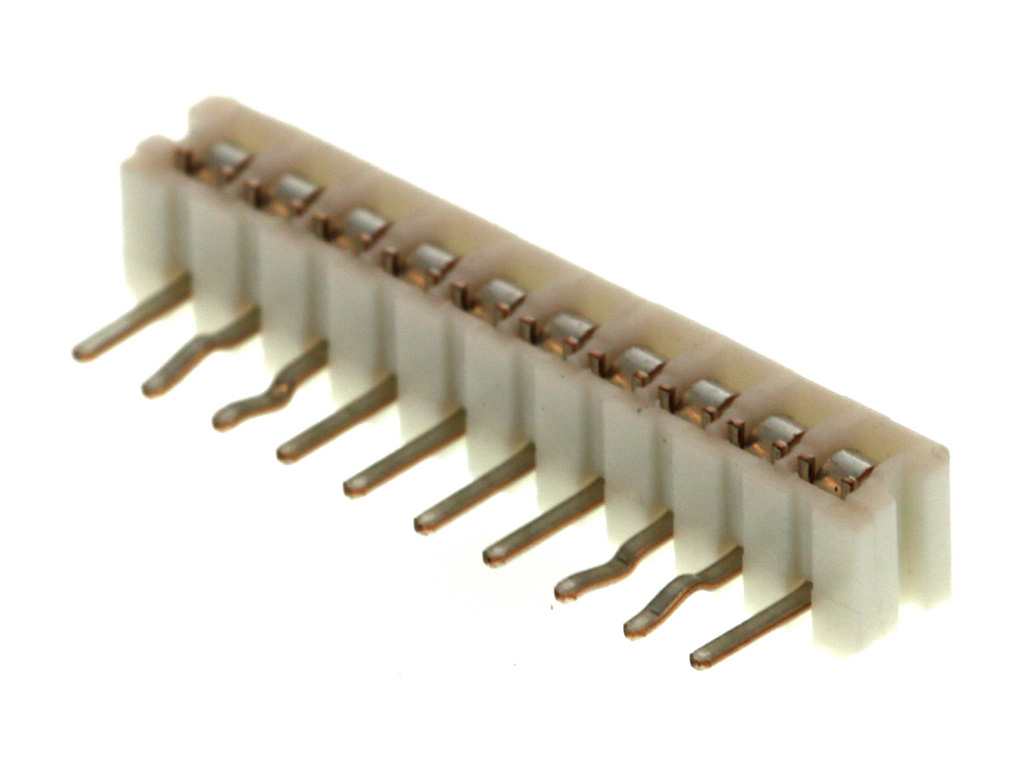

2.00mm Pitch SlimStack Board-to-Board Receptacle, Right-Angle, Single Row, Friction Lock, 10 Circuits
| Status: | Not Recommended For New Design |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52418-1010,
0524181010 |
Where to Buy
Prices starting from US$0.13
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$0.65
|
17,340
in stock
|
Buy Now |
|
TME
from US$0.23
|
17,300
in stock
|
Buy Now |
|
Farnell
from US$0.73
|
15,720
in stock
|
Buy Now |
|
RS
from US$0.76
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.49
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.18
|
0
in stock
|
Buy Now |
|
TTI Asia
from US$0.13
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | SlimStack |
|---|---|
| Application | Board-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Voltage Maximum | 125V |
Physical |
|
|---|---|
| Circuits Loaded | 10 |
| Circuits Maximum | 10 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 30 |
| Glow Wire Capable | No |
| Mated Height | 3.95mm |
| Mated Width | 6.00mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Polyester |
| Net Weight | 465.600/mg |
| Number Of Rows | 1 |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 2.00mm |
| Plating Min Mating | 0.914µm |
| Plating Min Termination | 0.914µm |
| Polarized To Pcb | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole - Kinked Pin |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Board-Board Connector Receptacle, 10 Position, 1Row | Newark Electronics |
| Connector: wire-board | TME |
| CONN, R/A RCPT, 10POS, 1ROW, 2MM | Farnell |
| Molex 52418-1010 PCB Socket | RS |
| 10CKT R/A B-B HOUS ASSY | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 524181010?
Additional datasheets, footprints and schematics for 524181010 are listed on our Part Details page. You can also find images and similar parts to 524181010 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 524181010 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 524181010 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 524181010 fall under?
The 524181010 is listed under Board-to-Board Connectors.
Can I view similar or alternative parts?
You can view similar parts to 524181010 when available in the Board-to-Board Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 524181010 you can contact the distributor directly for product support, shipping queries etc.
Is the 524181010 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 524181010 have stock available?
Authorised distributors including Newark Electronics, TME, Farnell, RS and Heilind Americas have stock available or on a lead time for 524181010.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 524181010 often in real-time on the comparison pages.
What if I can't find stock of 524181010?
You can fill out our help required form which you can use to request a quote for 524181010 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
