524352471 Easy-On by Molex

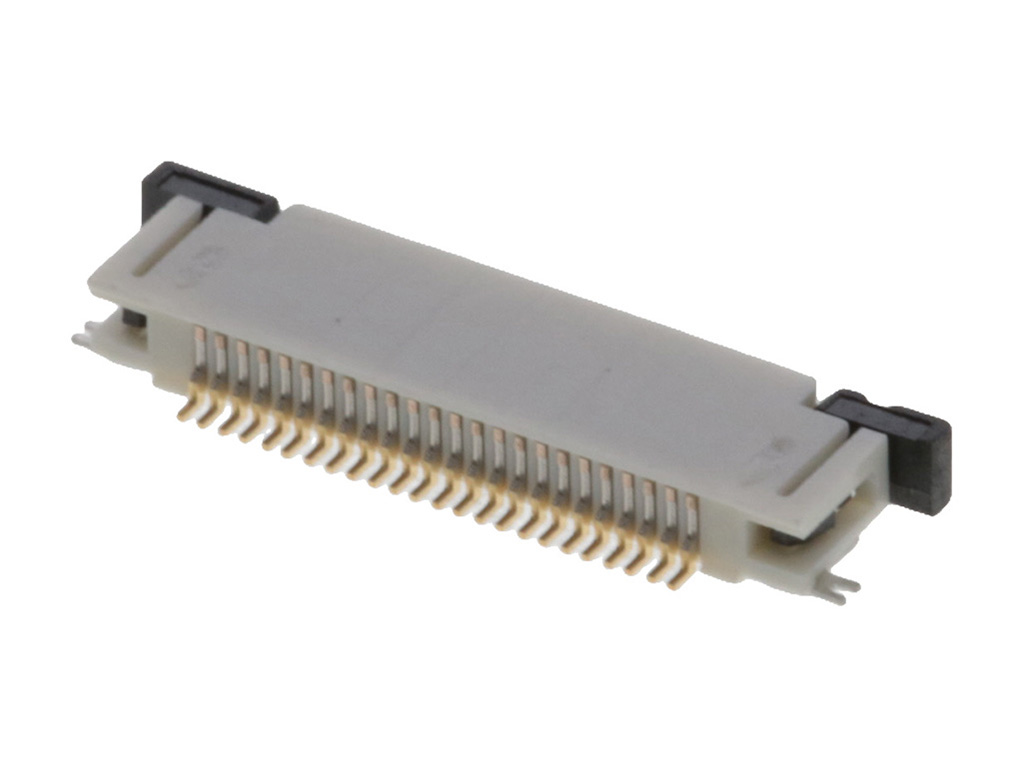

Easy-On FFC/FPC Connector, 0.50mm Pitch, Slider Series, Right-Angle, Top Contact, 2.00mm Height, 24 Circuits, Gold Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52435-2471,
0524352471 |
Where to Buy
Prices starting from US$0.57
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$2.65
|
57,060
in stock
|
Buy Now |
|
Conrad
from US$2.33
|
57,060
in stock
|
Buy Now |
|
Farnell
from US$1.72
|
51,750
in stock
|
Buy Now |
|
TTI Europe
from US$0.90
|
10,000
in stock
|
Buy Now |
|
Rutronik
from US$0.68
|
3,000
in stock
|
Buy Now |
|
element14
from US$1.58
|
620
in stock
|
Buy Now |
|
TME
from US$1.09
|
361
in stock
|
Buy Now |
|
RS
from US$1.25
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.28
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.57
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.60
|
0
in stock
|
Buy Now |
|
EME
from US$0.74
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Slider |
| Circuits Loaded | 24 |
| Contact Position | Top |
| Durability Mating Cycles Max | 20 |
| Flammability | 94V-0 |
| Mated Height | 2.00mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Material Resin | Nylon |
| Net Weight | 322.724/mg |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pitch Mating Interface | 0.50mm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Easy-On Ffc/Fpc Connector 0.50Mm Pitch Slider Ser |Molex 52435-2471 | Newark Electronics |
| Molex FFC/FPC-Anschluss Polzahl Gesamt 24 Rastermaß: 0.5 mm 524352471 1 St. Tape on Full reel | Conrad |
| FPC CONN, RCPT, 24POS, 1ROW, 0.5MM | Farnell |
| .50 MM FFC/FPC CONNECTOR 24CKT | TTI Europe |
| 24P FFC/FPC ZIF SMT 90° Top-Con 0.50mm | Rutronik |
| CONNECTOR, FFC/FPC, 24POS, 1ROW, 0.5MM | element14 |
| Connector: FFC/FPC | TME |
| Molex 52435-2471 FPC Connector | RS |
| 0.5 FPC ZIF SMT RA ASSY 24CKT EMBSTP PKG | Heilind Americas |
| .5MM REC 24P RA SMT TOP AU | TTI Asia |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 524352471?
Additional datasheets, footprints and schematics for 524352471 are listed on our Part Details page. You can also find images and similar parts to 524352471 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 524352471 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 524352471 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 524352471 fall under?
The 524352471 is listed under FFC / FPC Connectors.
Can I view similar or alternative parts?
You can view similar parts to 524352471 when available in the FFC / FPC Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 524352471 you can contact the distributor directly for product support, shipping queries etc.
Is the 524352471 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 524352471 have stock available?
Authorised distributors including Newark Electronics, Conrad, Farnell, TTI Europe and Rutronik have stock available or on a lead time for 524352471.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 524352471 often in real-time on the comparison pages.
What if I can't find stock of 524352471?
You can fill out our help required form which you can use to request a quote for 524352471 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
