524352871 Easy-On by Molex

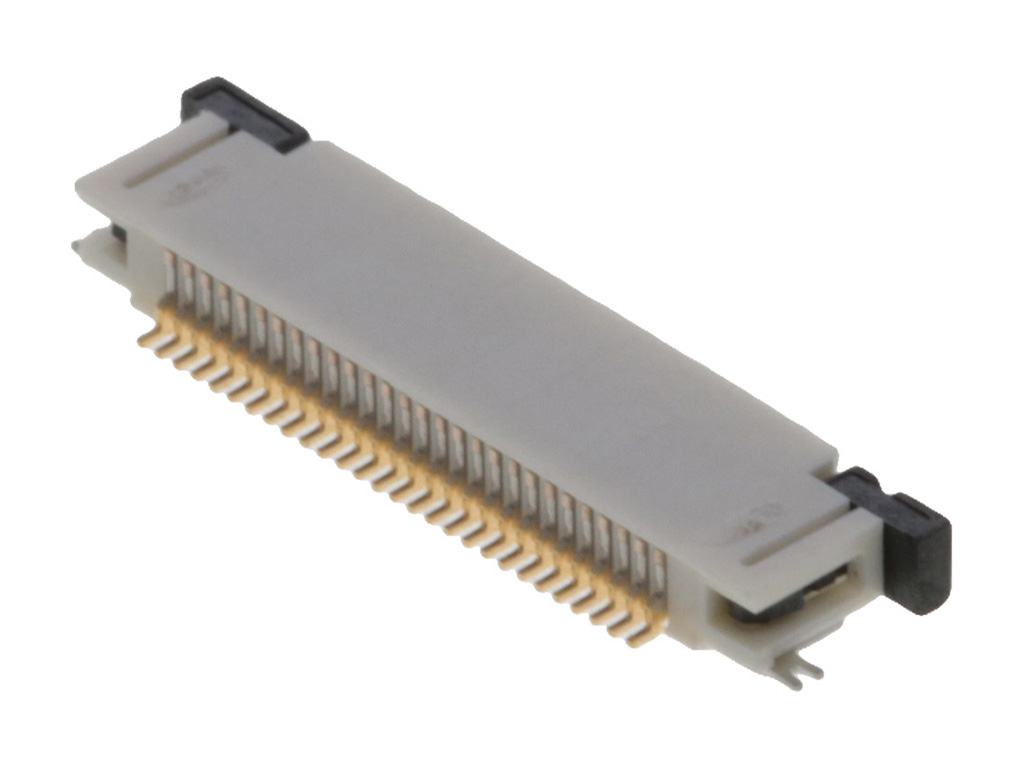

Easy-On FFC/FPC Connector, 0.50mm Pitch, Slider Series, Right-Angle, Top Contact, 2.00mm Height, 28 Circuits, Gold Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52435-2871,
0524352871 |
Where to Buy
Prices starting from US$0.65
| Distributor | Stock | ||
|---|---|---|---|
|
Farnell
from US$1.94
|
8,000
in stock
|
Buy Now |
|
Newark Electronics
from US$1.85
|
758
in stock
|
Buy Now |
|
element14
from US$1.75
|
758
in stock
|
Buy Now |
|
RS
from US$2.82
|
365
in stock
|
Buy Now |
|
TME
from US$0.97
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$0.78
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.39
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.65
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.92
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Slider |
| Circuits Loaded | 28 |
| Contact Position | Top |
| Durability Mating Cycles Max | 20 |
| Flammability | 94V-0 |
| Mated Height | 2.00mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Material Resin | Nylon |
| Net Weight | 369.868/mg |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pitch Mating Interface | 0.50mm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| FPC CONN, RCPT, 28POS, 1ROW, 0.5MM | Farnell |
| Connector, Ffc/Fpc, 28Pos, 1Row, 0.5Mm | Newark Electronics |
| CONNECTOR, FFC/FPC, 28POS, 1ROW, 0.5MM | element14 |
| Molex 52435-2871 FPC Connector | RS |
| Connector: FFC/FPC | TME |
| .50 MM FFC/FPC CONNECTOR 28CKT | TTI Europe |
| 0.5 FPC ZIF SMT RA ASSY 2 EMBSTP PKG | Heilind Americas |
