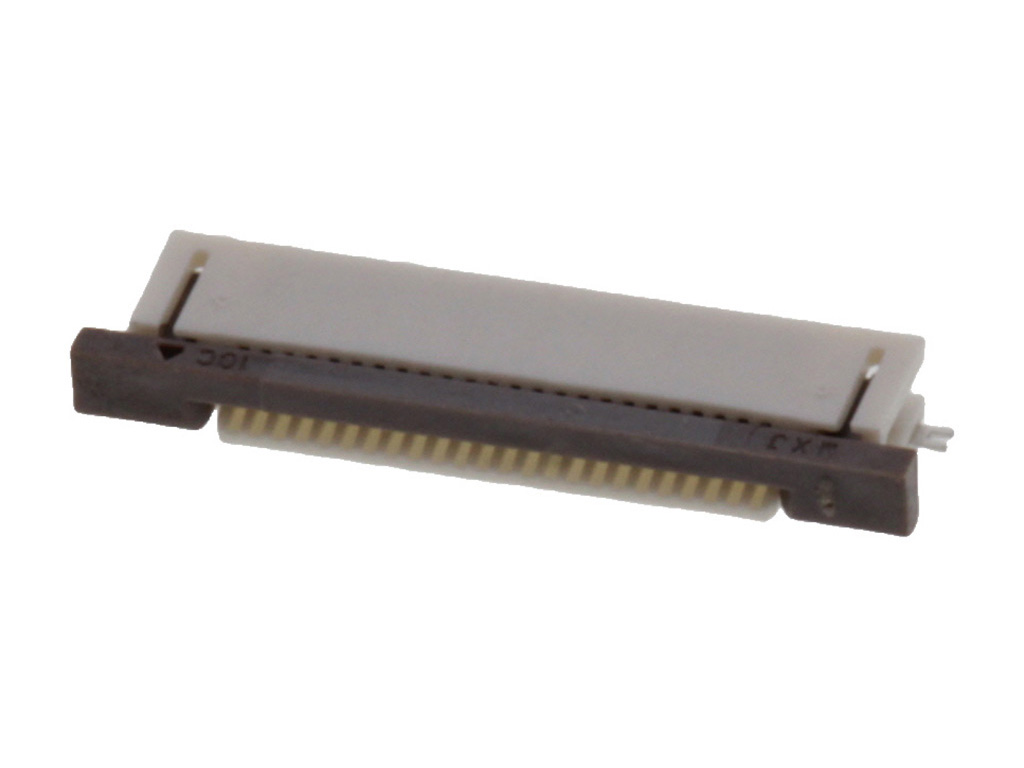

524372433 Easy-On by Molex
Easy-On FFC/FPC Connector, 0.50mm Pitch, Slider Series, Right-Angle, Bottom Contact, 2.00mm Height, 24 Circuits, Tin-Silver-Bismuth Plating
| Status: | Obsolete |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52437-2433,
0524372433 |
Where to Buy
Prices starting from US$1.09
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$1.32
|
22,000
in stock
|
Buy Now |
|
TME
from US$1.25
|
22,000
in stock
|
Buy Now |
|
Conrad
from US$2.35
|
22,000
in stock
|
Buy Now |
|
Farnell
from US$1.42
|
20,000
in stock
|
Buy Now |
|
RS
from US$1.74
|
0
in stock
|
Buy Now |
|
Avnet America
from US$1.09
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$1.82
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Slider |
| Circuits Loaded | 24 |
| Color Resin | Natural |
| Contact Position | Bottom |
| Durability Mating Cycles Max | 20 |
| Flammability | 94V-0 |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin-Silver-Bismuth |
| Material Plating Termination | Tin-Silver-Bismuth |
| Material Resin | Nylon |
| Net Weight | 317.720/mg |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pc Tail Length | 2.00mm |
| Pitch Mating Interface | 0.50mm |
| Pitch Termination Interface | 0.50mm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Easy-On Ffc/Fpc Connector, 0.50Mm Pitch, Slider Series, Right-Angle, Bottom Contact, 2.00Mm Height, 24 Circuits, Tin-Silver-Bismuth Plating |Molex 52437-2433 | Newark Electronics |
| Connector: FFC/FPC | TME |
| Molex FFC/FPC-Anschluss Polzahl Gesamt 24 Rastermaß: 0.50 mm 524372433 1 St. Tape on Full reel | Conrad |
| FPC CONN, RCPT, 24POS, 1ROW, 0.5MM | Farnell |
| Molex 52437-2433 FPC Connector | RS |
| EASY-ON FFC/FPC CONNECTOR 0.50MM PITCH | Avnet America |
| 0.5 FPC ZIF RA SMT ASSY 24CKT EMBSTP PKG | RS Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 524372433?
Additional datasheets, footprints and schematics for 524372433 are listed on our Part Details page. You can also find images and similar parts to 524372433 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 524372433 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 524372433 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 524372433 fall under?
The 524372433 is listed under FFC / FPC Connectors.
Can I view similar or alternative parts?
You can view similar parts to 524372433 when available in the FFC / FPC Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 524372433 you can contact the distributor directly for product support, shipping queries etc.
Is the 524372433 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 524372433 have stock available?
Authorised distributors including Newark Electronics, TME, Conrad, Farnell and RS have stock available or on a lead time for 524372433.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 524372433 often in real-time on the comparison pages.
What if I can't find stock of 524372433?
You can fill out our help required form which you can use to request a quote for 524372433 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
