524373071 Easy-On by Molex

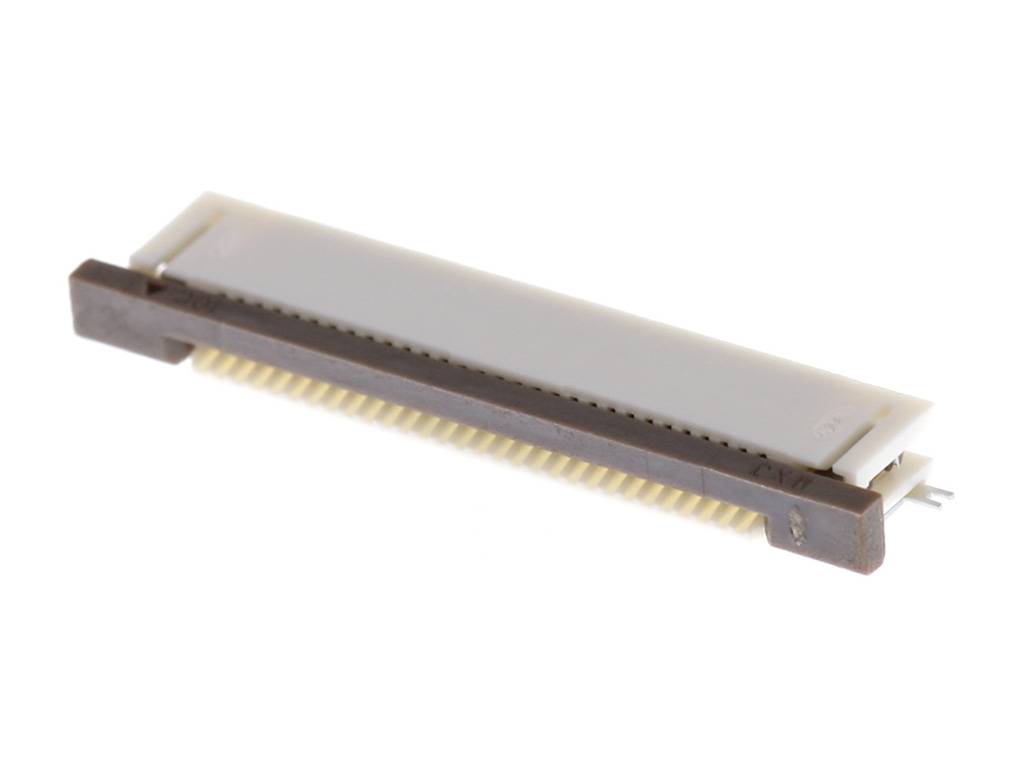

Easy-On FFC/FPC Connector, 0.50mm Pitch, Slider Series, Right-Angle, Bottom Contact, 2.00mm Height, 30 Circuits, Gold Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52437-3071,
0524373071 |
Where to Buy
Prices starting from US$0.34
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$3.12
|
10,000
in stock
|
Buy Now |
|
Farnell
from US$2.36
|
9,250
in stock
|
Buy Now |
|
element14
from US$2.20
|
881
in stock
|
Buy Now |
|
Heilind Americas
from US$1.87
|
750
in stock
|
Buy Now |
|
Newark Electronics
from US$0.34
|
38
in stock
|
Buy Now |
|
Avnet Abacus
-
|
5,000
in stock
|
Buy Now |
|
Avnet America
from US$1.91
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.76
|
0
in stock
|
Buy Now |
|
EME
from US$0.96
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Slider |
| Circuits Loaded | 30 |
| Color Resin | Natural |
| Contact Position | Bottom |
| Durability Mating Cycles Max | 20 |
| Flammability | 94V-0 |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 377.100/mg |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pitch Mating Interface | 0.50mm |
| Plating Min Mating | 0.102µm |
| Plating Min Termination | 0.051µm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex FFC/FPC-Anschluss Polzahl Gesamt 30 Rastermaß: 0.5 mm 524373071 1 St. Tape on Full reel | Conrad |
| FPC CONN, RCPT, 30POS, 1ROW, 0.5MM | Farnell |
| CONNECTOR, FFC/FPC, 30POS, 1ROW, 0.5MM | element14 |
| 0.5 FPC ZIF SMT R/A 30CKT EMBS TP PKG | Heilind Americas |
| Connector, Ffc/Fpc, 30Pos, 1Row, 0.5Mm | Newark Electronics |
| Conn FFC/FPC Socket 30 POS 0.5mm Solder RA SMD | Avnet Abacus |
