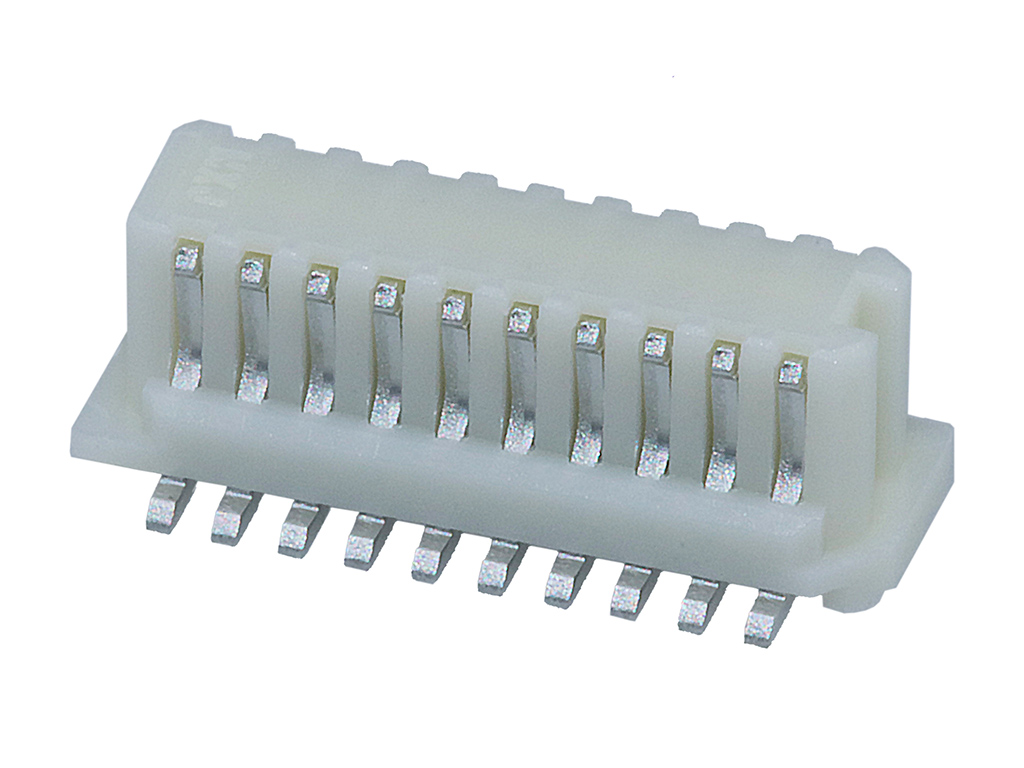

SlimStack Board-to-Board Connector, 0.80mm Pitch, Rigid Type Receptacle, 4.50 or 5.65mm Mated Height, Vertical, 20 Circuits, without Boss
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52465-2071,
0524652071 |
Where to Buy
Prices starting from US$0.86
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$1.22
|
46,000
in stock
|
Buy Now |
|
Conrad
from US$1.53
|
46,000
in stock
|
Buy Now |
|
Farnell
from US$1.38
|
41,500
in stock
|
Buy Now |
|
TTI Europe
from US$1.11
|
2,000
in stock
|
Buy Now |
|
Heilind Americas
from US$1.14
|
1,500
in stock
|
Buy Now |
|
Avnet Abacus
-
|
19,000
in stock
|
Buy Now |
|
RS
from US$1.36
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.94
|
0
in stock
|
Buy Now |
|
TME
from US$1.22
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$1.84
|
0
in stock
|
Buy Now |
|
|
TTI Americas
from US$0.86
|
0
in stock
|
Buy Now |
|
Sager
from US$1.20
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.98
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.86
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | SlimStack |
|---|---|
| Application | Board-to-Board, Signal |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Circuits Loaded | 20 |
| Circuits Maximum | 20 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 30 |
| Glow Wire Capable | No |
| Keying To Mating Part | Yes |
| Lock To Mating Part | No |
| Mated Height | 4.50mm, 5.65mm |
| Mated Width | 4.70mm, 5.10mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 207.400/mg |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 0.80mm |
| Plating Min Mating | 1.016µm |
| Plating Min Termination | 1.016µm |
| Polarized To Pcb | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Surface Mount |
