525590834 Easy-On by Molex

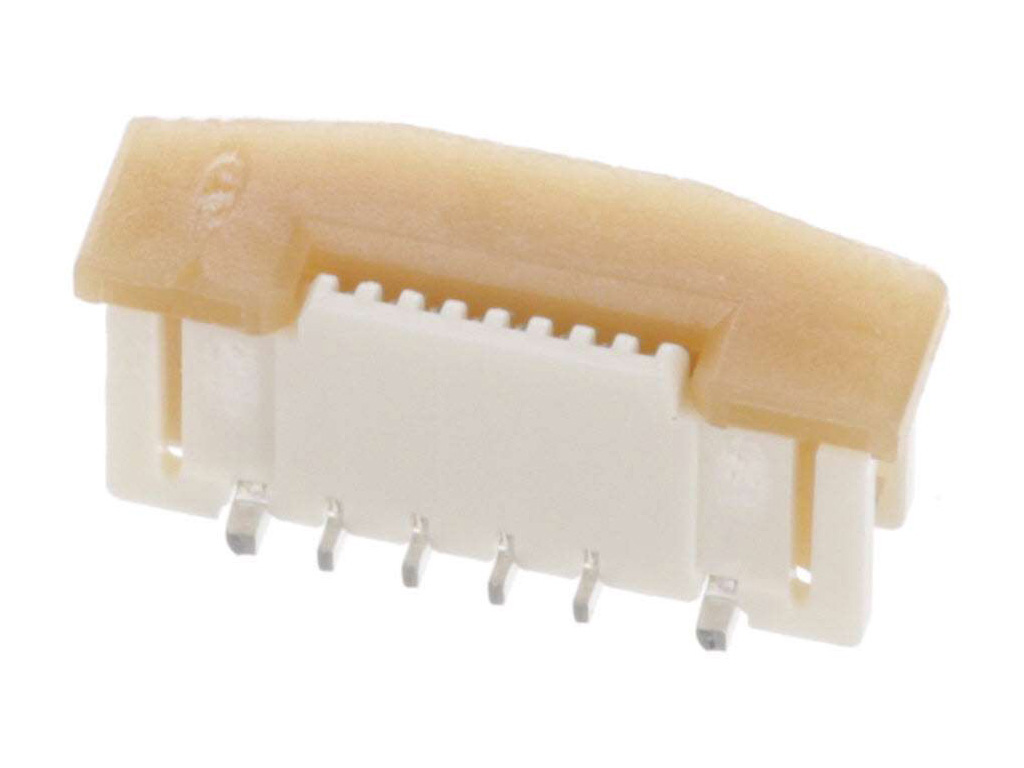

Easy-On FFC/FPC Connector, 0.50mm Pitch, Slider Series, Vertical, 3.90mm Height, 8 Circuits, Tin-Silver-Bismuth Plating
| Status: | Obsolete |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52559-0834,
0525590834 |
Where to Buy
Prices starting from US$0.64
| Distributor | Stock | ||
|---|---|---|---|
|
TME
from US$0.80
|
60,000
in stock
|
Buy Now |
|
Farnell
from US$0.87
|
57,000
in stock
|
Buy Now |
|
element14
from US$0.83
|
3,000
in stock
|
Buy Now |
|
Newark Electronics
from US$0.68
|
2,802
in stock
|
Buy Now |
|
TTI Americas
from US$0.90
|
2,000
in stock
|
Buy Now |
|
RS
from US$1.11
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.64
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$1.03
|
0
in stock
|
Buy Now |
|
|
TTI Europe
-
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Slider |
| Circuits Loaded | 8 |
| Color Resin | Natural |
| Contact Position | N/A |
| Durability Mating Cycles Max | 20 |
| Flammability | 94V-0 |
| Mated Height | 3.90mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin-Silver-Bismuth |
| Material Plating Termination | Tin-Silver-Bismuth |
| Material Resin | Nylon |
| Net Weight | 153.750/mg |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | Yes |
| Pc Tail Length | 2.00mm |
| Pitch Mating Interface | 0.50mm |
| Pitch Termination Interface | 0.50mm |
| Polarized To Pcb | No |
| Stackable | No |
| Temperature Range Operating | -40° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Connector: FFC/FPC | TME |
| FFC AND FPC CONNECTORS 0.5 FPC ZIF 8CKT | Farnell |
| FPC CONNECTOR, RCPT, 8POS, 0.3MM, SMD | element14 |
| Easy-On Ffc/Fpc Connector, 0.50Mm Pitch, Slider Series, Vertical, 3.90Mm Height, 8 Circuits, Tin-Silver-Bismuth Plating |Molex 52559-0834 | Newark Electronics |
| .5MM REC 08P VT SMT | TTI Americas |
| Molex 52559-0834 FPC Connector | RS |
| Conn FFC/FPC Connector SKT 8 POS 0.5mm Solder ST SMD Embossed T/R | Avnet America |
| .50 MM FFC/FPC CONNECTOR 8CKT | TTI Europe |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 525590834?
Additional datasheets, footprints and schematics for 525590834 are listed on our Part Details page. You can also find images and similar parts to 525590834 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 525590834 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 525590834 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 525590834 fall under?
The 525590834 is listed under FFC / FPC Connectors.
Can I view similar or alternative parts?
You can view similar parts to 525590834 when available in the FFC / FPC Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 525590834 you can contact the distributor directly for product support, shipping queries etc.
Is the 525590834 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 525590834 have stock available?
Authorised distributors including TME, Farnell, element14, Newark Electronics and TTI Americas have stock available or on a lead time for 525590834.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 525590834 often in real-time on the comparison pages.
What if I can't find stock of 525590834?
You can fill out our help required form which you can use to request a quote for 525590834 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
