525591252 Easy-On by Molex

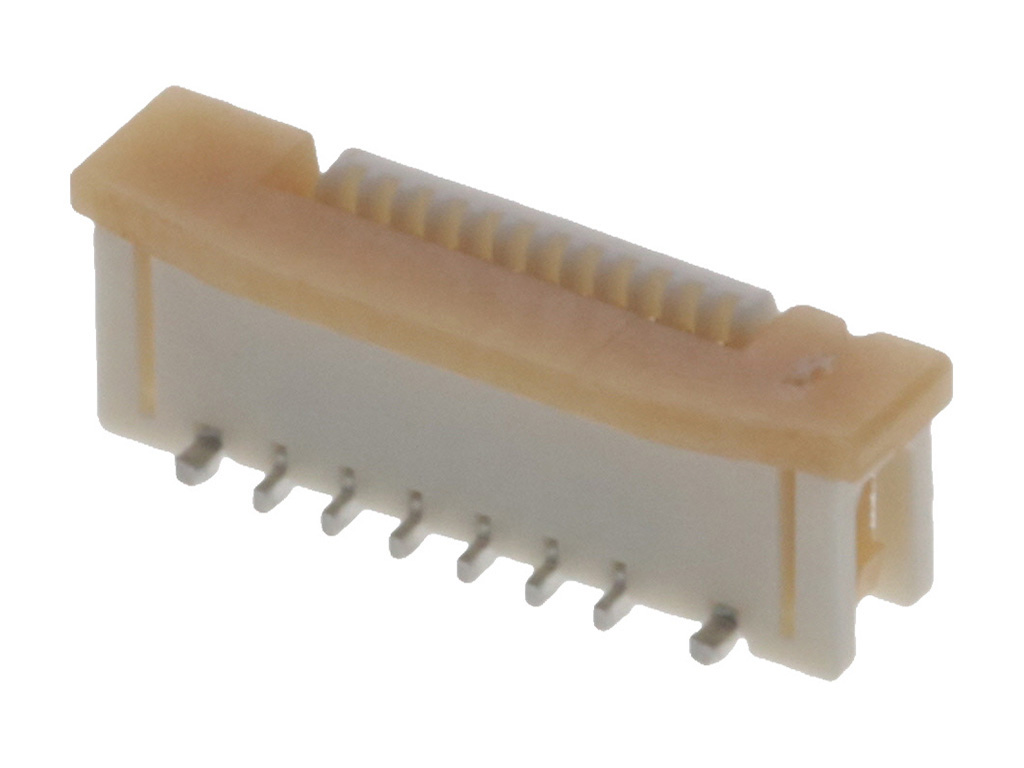

Easy-On FFC/FPC Connector, 0.50mm Pitch, Slider Series, Vertical, 3.90mm Height, 12 Circuits, Gold Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52559-1252,
0525591252 |
Where to Buy
Prices starting from US$0.45
| Distributor | Stock | ||
|---|---|---|---|
|
Farnell
from US$1.01
|
63,500
in stock
|
Buy Now |
|
Heilind Europe
from US$0.58
|
18,000
in stock
|
Buy Now |
|
TTI Europe
from US$0.60
|
12,000
in stock
|
Buy Now |
|
|
Heilind Americas
from US$0.67
|
5,250
in stock
|
Buy Now |
|
CoreStaff
from US$0.45
|
3,201
in stock
|
Buy Now |
|
Newark Electronics
from US$1.08
|
2,351
in stock
|
Buy Now |
|
element14
from US$1.21
|
2,351
in stock
|
Buy Now |
|
Rapid Electronics
from US$1.33
|
982
in stock
|
Buy Now |
|
Conrad
from US$1.67
|
982
in stock
|
Buy Now |
|
RS
from US$1.24
|
370
in stock
|
Buy Now |
|
TME
from US$0.83
|
0
in stock
|
Buy Now |
|
Compona
from US$0.61
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.70
|
0
in stock
|
Buy Now |
|
EME
from US$0.76
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Slider |
| Circuits Loaded | 12 |
| Contact Position | N/A |
| Durability Mating Cycles Max | 20 |
| Flammability | 94V-0 |
| Mated Height | 3.90mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 192.610/mg |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pitch Mating Interface | 0.50mm |
| Polarized To Pcb | No |
| Stackable | No |
| Temperature Range Operating | -40° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| FPC CONN, RCPT, 12POS, 1ROW, 0.5MM | Farnell |
| 0.5 FPC ZIF SMT ST 12CKT EMBS P PKG | Heilind Europe |
| .50 MM FFC/FPC CONNECTOR 12CKT | TTI Europe |
| Ffc/Fpc Board Connector, Housing, 52559 Series, Surface Mount, Receptacle, 12, 0.5 Mm Rohs Compliant: Yes |Molex 52559-1252 | Newark Electronics |
| CONNECTOR, FFC/FPC, 12POS, 1ROW, 0.5MM | element14 |
| Molex 525591252 Easy-on Connector 12 Pins 0.5mm Pitch Gold Plated | Rapid Electronics |
| Molex FFC/FPC-Anschluss Polzahl Gesamt 12 Rastermaß: 0.5 mm 525591252 1 St. Tape on Full reel | Conrad |
| Molex 52559-1252 FPC Connector | RS |
| Connector: FFC/FPC | TME |
| MOLEX 52559-1252 Plug FFC 12p SMT | Compona |
| .5MM REC 12P VT SMT AU | TTI Asia |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 525591252?
Additional datasheets, footprints and schematics for 525591252 are listed on our Part Details page. You can also find images and similar parts to 525591252 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 525591252 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 525591252 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 525591252 fall under?
The 525591252 is listed under FFC / FPC Connectors.
Can I view similar or alternative parts?
You can view similar parts to 525591252 when available in the FFC / FPC Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 525591252 you can contact the distributor directly for product support, shipping queries etc.
Is the 525591252 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 525591252 have stock available?
Authorised distributors including Farnell, Heilind Europe, TTI Europe, Heilind Americas and CoreStaff have stock available or on a lead time for 525591252.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 525591252 often in real-time on the comparison pages.
What if I can't find stock of 525591252?
You can fill out our help required form which you can use to request a quote for 525591252 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
