525591452 Easy-On by Molex

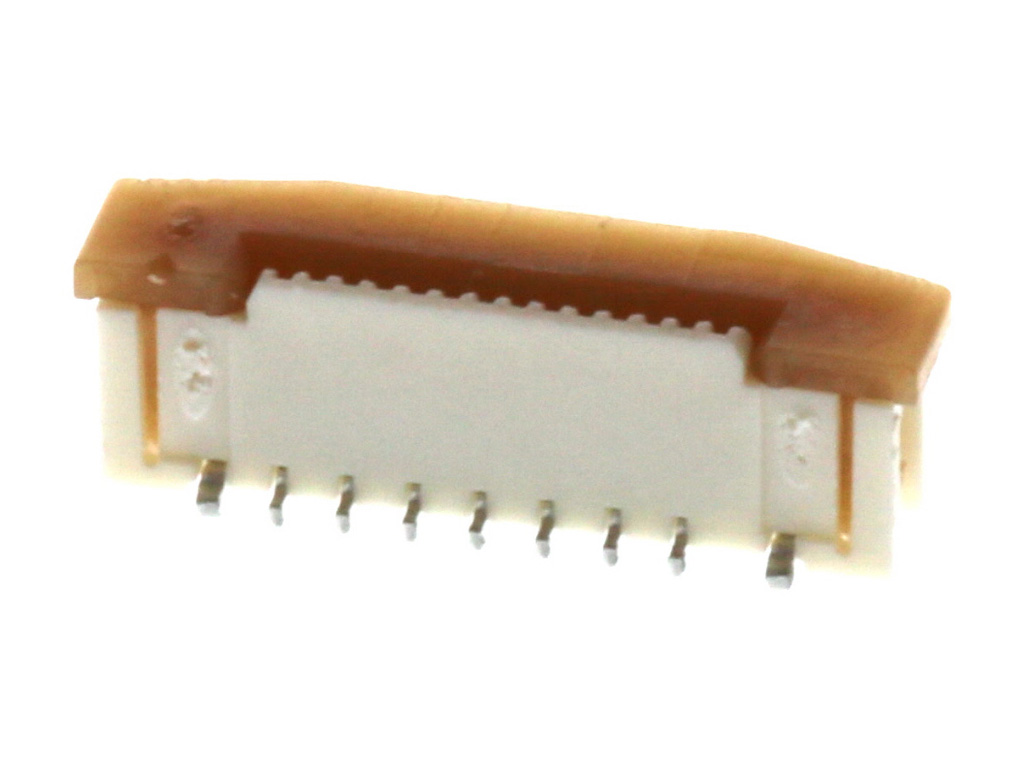

Easy-On FFC/FPC Connector, 0.50mm Pitch, Slider Series, Vertical, 3.90mm Height, 14 Circuits, Gold Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52559-1452,
0525591452 |
Where to Buy
Prices starting from US$0.39
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Europe
from US$0.94
|
20,000
in stock
|
Buy Now |
|
Heilind Americas
from US$1.04
|
7,500
in stock
|
Buy Now |
|
CoreStaff
from US$0.56
|
5,846
in stock
|
Buy Now |
|
RS
from US$1.87
|
1,385
in stock
|
Buy Now |
|
TME
from US$1.02
|
728
in stock
|
Buy Now |
|
Newark Electronics
from US$1.60
|
343
in stock
|
Buy Now |
|
element14
from US$1.61
|
343
in stock
|
Buy Now |
|
Farnell
from US$1.80
|
343
in stock
|
Buy Now |
|
Compona
from US$0.65
|
0
in stock
|
Buy Now |
|
Conrad
from US$2.09
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.65
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.39
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Slider |
| Circuits Loaded | 14 |
| Contact Position | N/A |
| Durability Mating Cycles Max | 20 |
| Flammability | 94V-0 |
| Mated Height | 3.90mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 212.328/mg |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pitch Mating Interface | 0.50mm |
| Polarized To Pcb | No |
| Stackable | No |
| Temperature Range Operating | -40° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| .50 MM FFC/FPC CONNECTOR 14CKT | TTI Europe |
| 0.5 FPC ZIF SMT ST 14CKT EMBS P PKG | Heilind Americas |
| Molex 52559-1452 FPC Connector | RS |
| Connector: FFC/FPC | TME |
| Connector, Ffc/Fpc, 14Pos, 1Row, 0.5Mm | Newark Electronics |
| CONNECTOR, FFC/FPC, 14POS, 1ROW, 0.5MM | element14 |
| MOLEX 52559-1452 Plug FFC 14p SMT | Compona |
| Molex FFC/FPC-Anschluss Polzahl Gesamt 14 Rastermaß: 0.5 mm 525591452 1 St. Tape on Full reel | Conrad |
| .5MM REC 14P VT SMT AU | TTI Asia |
