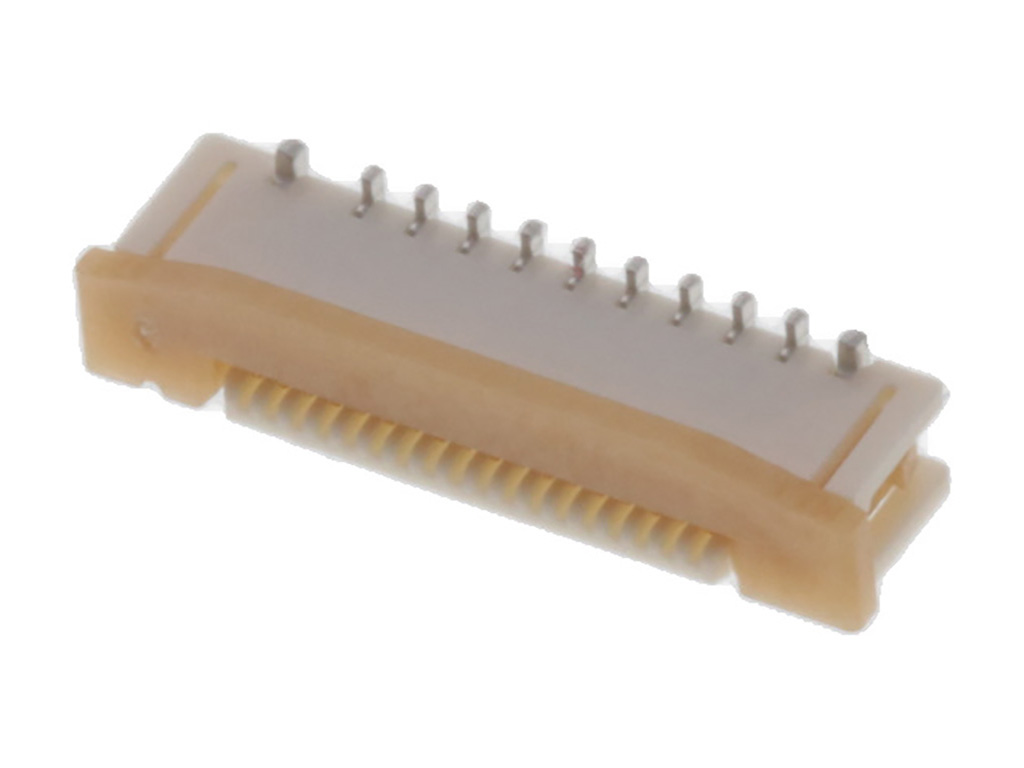

525591853 Easy-On by Molex
Easy-On FFC/FPC Connector, 0.50mm Pitch, Slider Series, Vertical, 3.90mm Height, 18 Circuits, Gold Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52559-1853,
0525591853 |
Where to Buy
Prices starting from US$0.64
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$2.57
|
12,000
in stock
|
Buy Now |
|
CoreStaff
from US$0.64
|
4,305
in stock
|
Buy Now |
|
RS
from US$1.61
|
1,000
in stock
|
Buy Now |
|
element14
from US$1.68
|
1,000
in stock
|
Buy Now |
|
Farnell
from US$1.84
|
1,000
in stock
|
Buy Now |
|
TME
from US$1.08
|
375
in stock
|
Buy Now |
|
Newark Electronics
from US$2.01
|
4
in stock
|
Buy Now |
|
Rutronik
from US$0.93
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$2.13
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$1.42
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$1.00
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.62
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.84
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Slider |
| Circuits Loaded | 18 |
| Color Resin | Natural |
| Contact Position | N/A |
| Durability Mating Cycles Max | 20 |
| Flammability | 94V-0 |
| Mated Height | 3.90mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 251.764/mg |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pitch Mating Interface | 0.50mm |
| Plating Min Mating | 0.102µm |
| Plating Min Termination | 1.016µm |
| Polarized To Pcb | No |
| Stackable | No |
| Temperature Range Operating | -40° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex FFC/FPC-Anschluss Polzahl Gesamt 18 Rastermaß: 0.5 mm 525591853 1 St. Tape on Full reel | Conrad |
| Molex 52559-1853 FPC Connector | RS |
| CONNECTOR, FFC/FPC, 18POS, 1ROW, 0.5MM | element14 |
| Connector: FFC/FPC | TME |
| Connector, Ffc/Fpc, 18Pos, 1Row, 0.5Mm | Newark Electronics |
| 18P FFC/FPC ZIF SMT Au | Rutronik |
| CONNECTOR 0.5MM, FFC/FPC, SMT, VERT,18W, AU | RS Americas |
| .5MM REC 18P VT SMT AU | TTI Americas |
| EASY-ON FFC/FPC CONNECTOR,18CK | TTI Europe |
| 0.5 MM FPC CONNECTOR | Heilind Americas |
