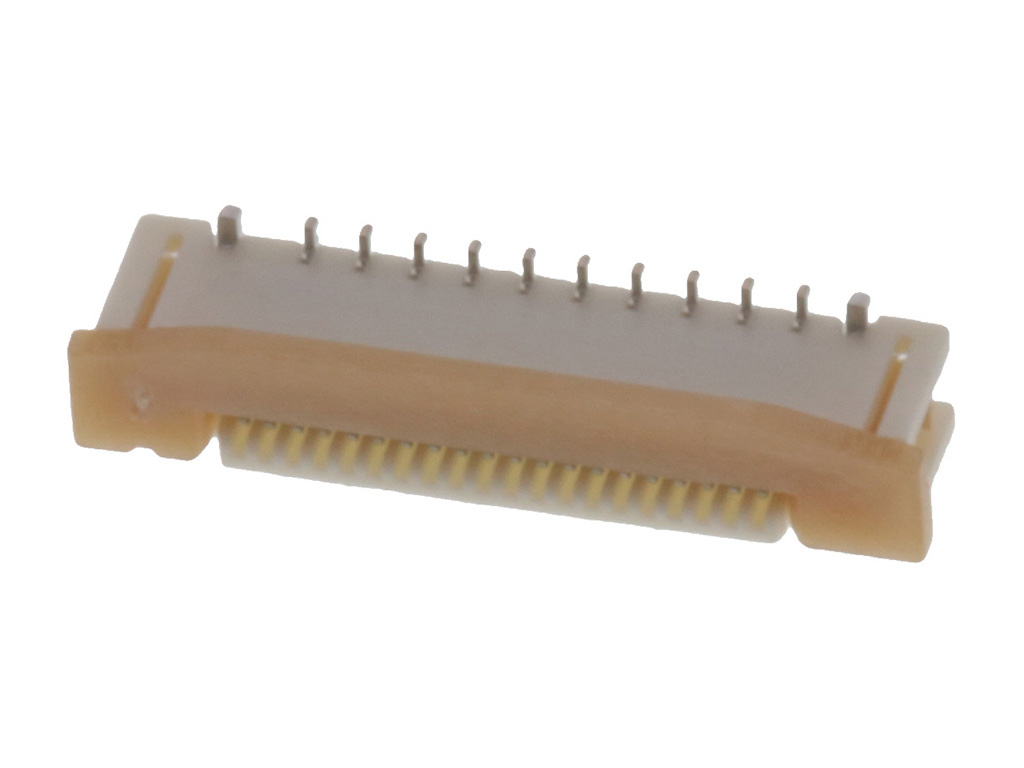

525592033 Easy-On by Molex
Easy-On FFC/FPC Connector, 0.50mm Pitch, Slider Series, Vertical, 3.90mm Height, 20 Circuits, Tin-Silver-Bismuth Plating
| Status: | Obsolete |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52559-2033,
0525592033 |
Where to Buy
Prices starting from US$1.29
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$2.53
|
41,000
in stock
|
Buy Now |
|
Farnell
from US$1.56
|
39,000
in stock
|
Buy Now |
|
Newark Electronics
from US$1.45
|
36,000
in stock
|
Buy Now |
|
TTI Americas
from US$1.81
|
2,000
in stock
|
Buy Now |
|
element14
from US$2.11
|
325
in stock
|
Buy Now |
|
Heilind Americas
from US$1.74
|
23
in stock
|
Buy Now |
|
RS
from US$1.74
|
0
in stock
|
Buy Now |
|
Avnet America
from US$1.29
|
0
in stock
|
Buy Now |
|
TME
from US$1.51
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$1.80
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Slider |
| Circuits Loaded | 20 |
| Color Resin | Natural |
| Contact Position | N/A |
| Durability Mating Cycles Max | 20 |
| Flammability | 94V-0 |
| Mated Height | 3.90mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin-Silver-Bismuth |
| Material Plating Termination | Tin-Silver-Bismuth |
| Material Resin | Nylon |
| Net Weight | 272.922/mg |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | Yes |
| Pc Tail Length | 2.00mm |
| Pitch Mating Interface | 0.50mm |
| Pitch Termination Interface | 0.50mm |
| Polarized To Pcb | No |
| Stackable | No |
| Temperature Range Operating | -40° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex FFC/FPC-Anschluss Polzahl Gesamt 20 Rastermaß: 0.5 mm 525592033 1 St. Tape on Full reel | Conrad |
| FPC CONN, RCPT, 20POS, 1ROW, 0.5MM | Farnell |
| 0.5 Fpc Zif Hsg Assy Smt 20Ckt Embstppkg |Molex 52559-2033 | Newark Electronics |
| .5MM REC SMT VT 20P | TTI Americas |
| FPC CONNECTOR, RCPT, 20POS, 0.3MM, SMD | element14 |
| CUT TAPE 0.5 FPC ZIF HSG ASSY | Heilind Americas |
| Molex 52559-2033 FPC Connector | RS |
| Conn FFC/FPC Connector SKT 20 POS 0.5mm Solder ST SMD Embossed T/R | Avnet America |
| Connector: FFC/FPC | TME |
| 0.5 FPC ZIF HSG ASSY SMT 20CKT EMBSTPPKG | RS Americas |
