525592652 Easy-On by Molex

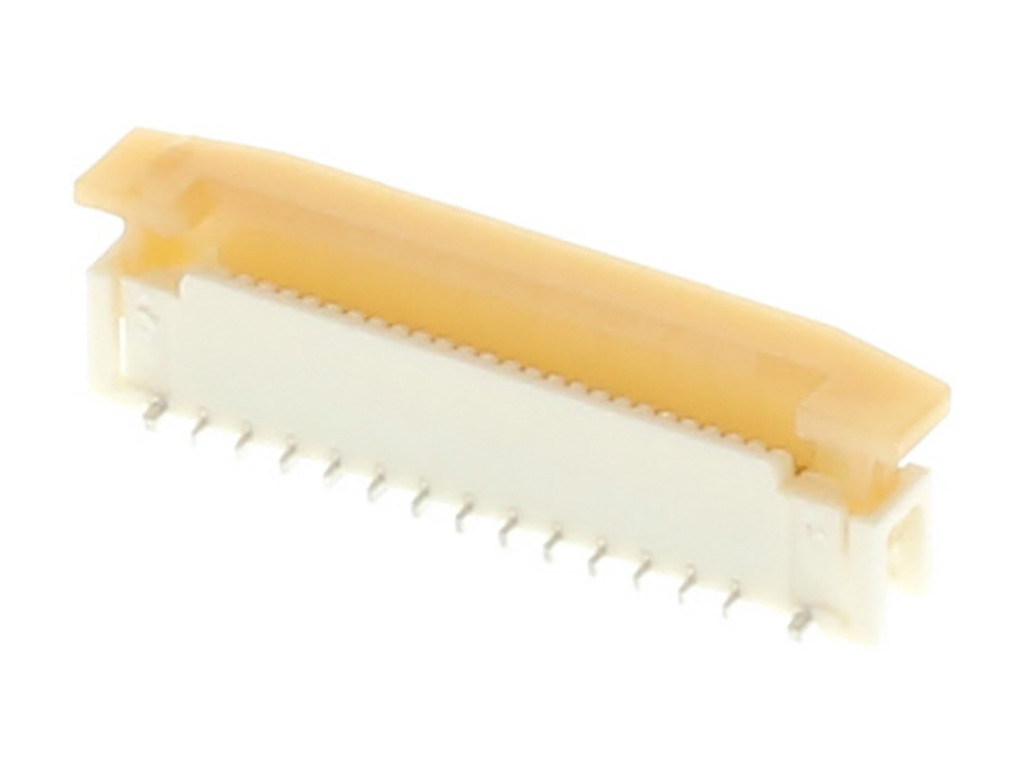

Easy-On FFC/FPC Connector, 0.50mm Pitch, Slider Series, Vertical, 3.90mm Height, 26 Circuits, Gold Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52559-2652,
0525592652 |
Where to Buy
Prices starting from US$1.06
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$2.74
|
12,344
in stock
|
Buy Now |
|
Farnell
from US$2.43
|
11,464
in stock
|
Buy Now |
|
Newark Electronics
from US$2.33
|
2,000
in stock
|
Buy Now |
|
element14
from US$2.32
|
2,000
in stock
|
Buy Now |
|
TTI Europe
from US$1.88
|
1,000
in stock
|
Buy Now |
|
RS
from US$2.52
|
164
in stock
|
Buy Now |
|
TME
from US$2.16
|
69
in stock
|
Buy Now |
|
Heilind Americas
from US$2.23
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.06
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.08
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Slider |
| Circuits Loaded | 26 |
| Contact Position | N/A |
| Durability Mating Cycles Max | 20 |
| Flammability | 94V-0 |
| Mated Height | 3.90mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 330.636/mg |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pitch Mating Interface | 0.50mm |
| Polarized To Pcb | No |
| Stackable | No |
| Temperature Range Operating | -40° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex FFC/FPC-Anschluss Polzahl Gesamt 26 Rastermaß: 0.5 mm 525592652 1 St. Tape on Full reel | Conrad |
| FPC CONN, RCPT, 26POS, 1ROW, 0.5MM | Farnell |
| Fpc Connector, Rcpt, 26Pos, 0.3Mm, Smd | Newark Electronics |
| FPC CONNECTOR, RCPT, 26POS, 0.3MM, SMD | element14 |
| EASY-ON FFC/FPC 0.50MM PITCH | TTI Europe |
| Molex 52559-2652 FPC Connector | RS |
| Connector: FFC/FPC | TME |
| 0.5 FPC ZIF SMT ST 26CKT EMBS P PKG | Heilind Americas |
| .5MM REC 26P VT SMT AU | TTI Asia |
