525592752 Easy-On by Molex

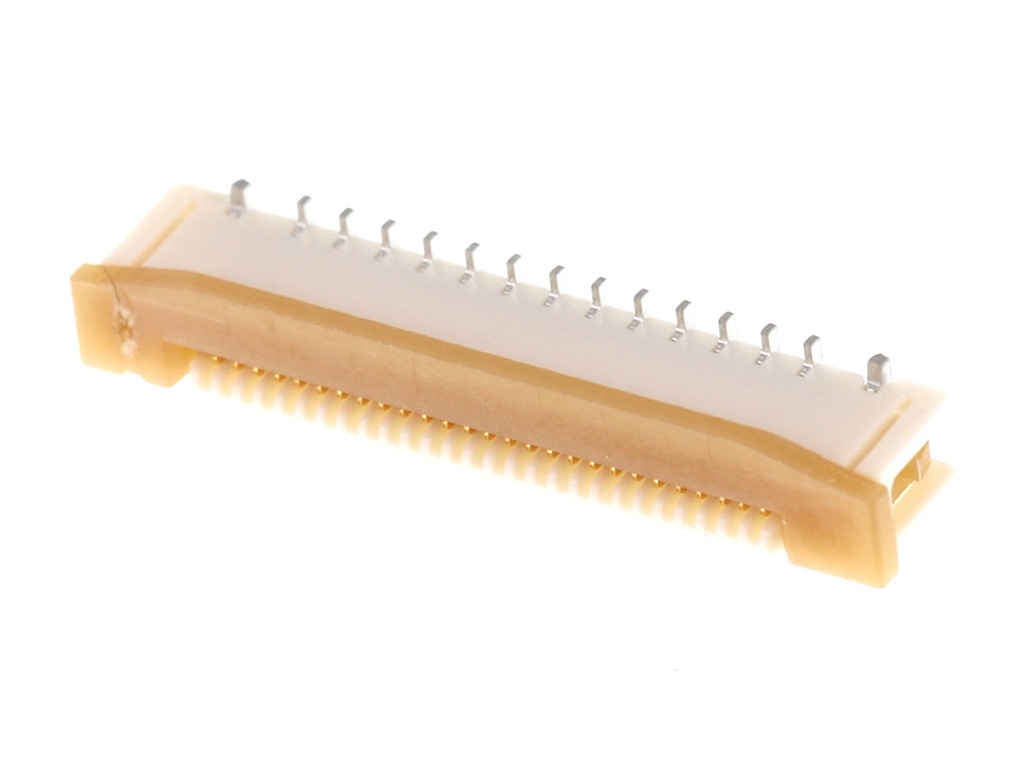

Easy-On FFC/FPC Connector, 0.50mm Pitch, Slider Series, Vertical, 3.90mm Height, 27 Circuits, Gold Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52559-2752,
0525592752 |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Slider |
| Circuits Loaded | 27 |
| Contact Position | N/A |
| Durability Mating Cycles Max | 20 |
| Flammability | 94V-0 |
| Mated Height | 3.90mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 340.495/mg |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pitch Mating Interface | 0.50mm |
| Polarized To Pcb | No |
| Stackable | No |
| Temperature Range Operating | -40° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 0.5 Fpc Zif Smt St 27Ckt Embstp Pkg Rohs Compliant: Yes |Molex 52559-2752 | Newark Electronics |
| Molex FFC/FPC-Anschluss Polzahl Gesamt 27 Rastermaß: 0.50 mm 525592752 1 St. Tape on Full reel | Conrad |
| 0.5 FPC ZIF SMT ST 27CKT EMBS P PKG | Heilind Americas |
| 0.5 FPC ZIF SMT ST 27CKT EMBSTP PKG | Farnell |
