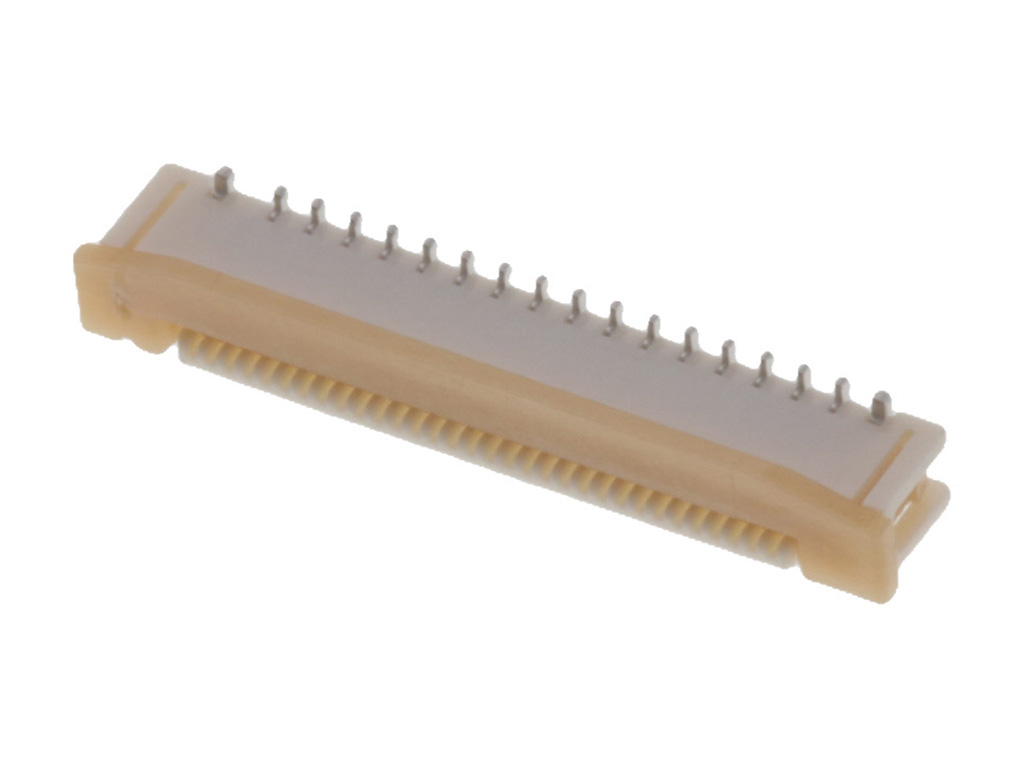

525593252 Easy-On by Molex
Easy-On FFC/FPC Connector, 0.50mm Pitch, Slider Series, Vertical, 3.90mm Height, 32 Circuits, Gold Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52559-3252,
0525593252 |
Where to Buy
Prices starting from US$1.15
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$2.47
|
22,000
in stock
|
Buy Now |
|
Conrad
from US$3.18
|
22,000
in stock
|
Buy Now |
|
Farnell
from US$3.12
|
20,000
in stock
|
Buy Now |
|
RS
from US$2.92
|
140
in stock
|
Buy Now |
|
Avnet America
from US$1.83
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$3.21
|
0
in stock
|
Buy Now |
|
Compona
from US$1.27
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$1.69
|
0
in stock
|
Buy Now |
|
Sager
from US$2.58
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$2.54
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.15
|
0
in stock
|
Buy Now |
|
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Slider |
| Circuits Loaded | 32 |
| Contact Position | N/A |
| Durability Mating Cycles Max | 20 |
| Flammability | 94V-0 |
| Mated Height | 3.90mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 389.790/mg |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pitch Mating Interface | 0.50mm |
| Polarized To Pcb | No |
| Stackable | No |
| Temperature Range Operating | -40° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Ffc/Fpc Board Connector, Zif, Surface Mount, Receptacle, 32, Top, 0.5 Mm Rohs Compliant: Yes |Molex 52559-3252 | Newark Electronics |
| Molex FFC/FPC-Anschluss Polzahl Gesamt 32 Rastermaß: 0.5 mm 525593252 1 St. Tape on Full reel | Conrad |
| FPC CONN, RCPT, 32POS, 1ROW, 0.5MM | Farnell |
| Molex 52559-3252 FPC Connector | RS |
| Conn FPC Connector SKT 32 POS 1mm Solder ST SMD Embossed T/R | Avnet America |
| MOLEX 52559-3252 Plug FFC 32p SMT | Compona |
| EASY FFC/FPC CONN.SMT 0.50MM | TTI Europe |
| FFC & FPC Connectors .5MM REC 32P VT SMT AU | Sager |
| 0.5 FPC ZIF SMT ST 32CKT EMBS P PKG | Heilind Americas |
