525593652 Easy-On by Molex

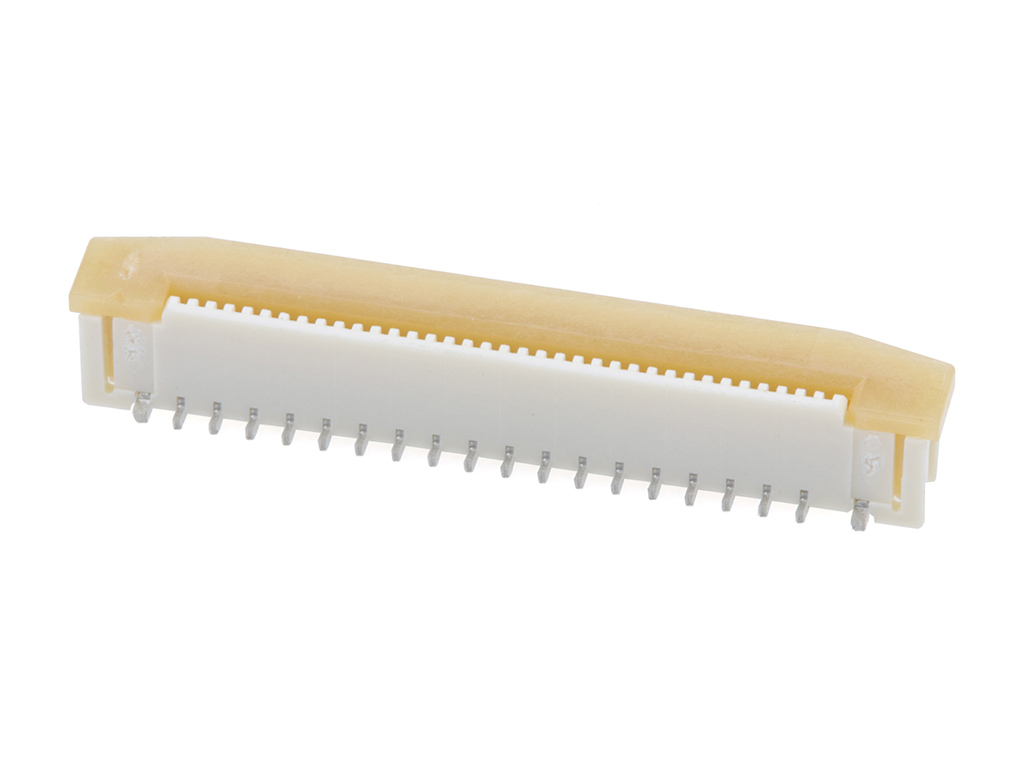

Easy-On FFC/FPC Connector, 0.50mm Pitch, Slider Series, Vertical, 3.90mm Height, 36 Circuits, Gold Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52559-3652,
0525593652 |
Where to Buy
Prices starting from US$2.59
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$3.66
|
6,000
in stock
|
Buy Now |
|
Heilind Americas
from US$2.59
|
2,250
in stock
|
Buy Now |
|
RS
from US$3.87
|
0
in stock
|
Buy Now |
|
Avnet America
from US$2.85
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$3.58
|
0
in stock
|
Buy Now |
|
element14
from US$2.64
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Slider |
| Circuits Loaded | 36 |
| Contact Position | N/A |
| Durability Mating Cycles Max | 20 |
| Flammability | 94V-0 |
| Mated Height | 3.90mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 429.226/mg |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pitch Mating Interface | 0.50mm |
| Polarized To Pcb | No |
| Stackable | No |
| Temperature Range Operating | -40° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex FFC/FPC-Anschluss Polzahl Gesamt 36 Rastermaß: 0.5 mm 525593652 1 St. Tape on Full reel | Conrad |
| 0.5 FPC ZIF SMT ST 36CKT EMBS P PKG | Heilind Americas |
| Molex 52559-3652 FPC Connector | RS |
| Conn FFC/FPC Socket 36 POS 0.5mm Solder ST Surface Mount | Avnet America |
| 0.5 FPC ZIF SMT ST 36CKT EMBSTP PKG | RS Americas |
| CONNECTOR, FFC/FPC, 36POS, 1ROW, 0.5MM | element14 |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 525593652?
Additional datasheets, footprints and schematics for 525593652 are listed on our Part Details page. You can also find images and similar parts to 525593652 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 525593652 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 525593652 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 525593652 fall under?
The 525593652 is listed under FFC / FPC Connectors.
Can I view similar or alternative parts?
You can view similar parts to 525593652 when available in the FFC / FPC Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 525593652 you can contact the distributor directly for product support, shipping queries etc.
Is the 525593652 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 525593652 have stock available?
Authorised distributors including Conrad, Heilind Americas, RS, Avnet America and RS Americas have stock available or on a lead time for 525593652.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 525593652 often in real-time on the comparison pages.
What if I can't find stock of 525593652?
You can fill out our help required form which you can use to request a quote for 525593652 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
