526100533 Easy-On by Molex

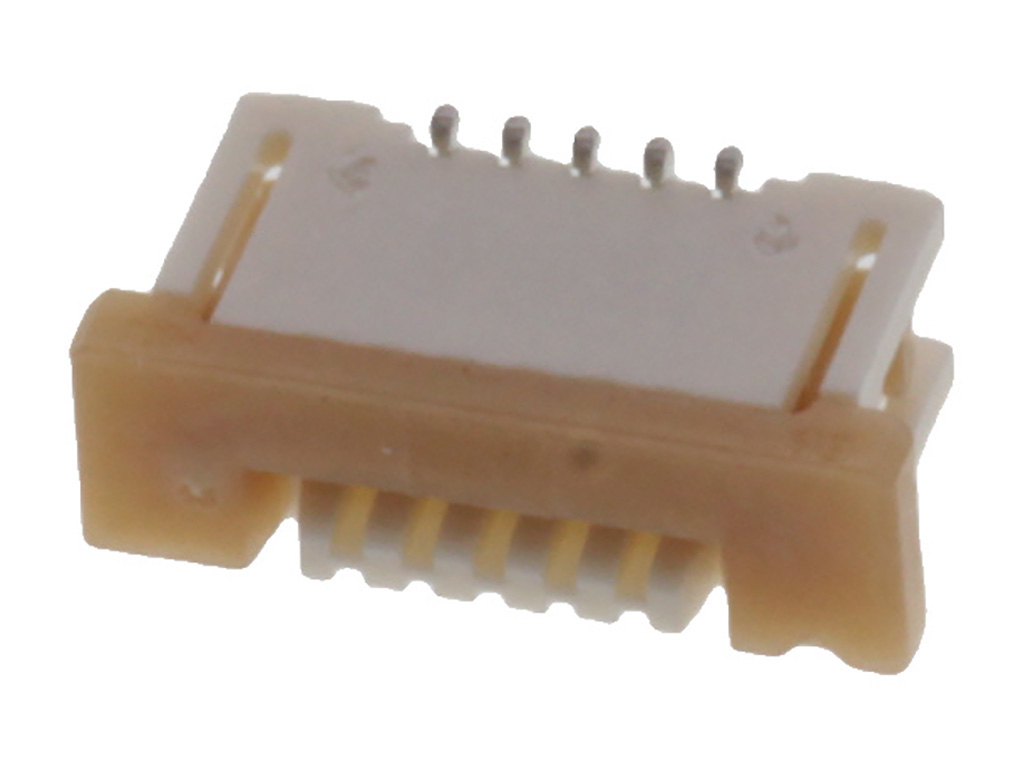

Easy-On FFC/FPC Connector, 1.00mm Pitch, Slider Series, Vertical, 5.75mm Height, 5 Circuits, Tin-Silver-Bismuth Plating
| Status: | Obsolete |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52610-0533,
0526100533 |
Where to Buy
Prices starting from US$0.11
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$1.21
|
42,000
in stock
|
Buy Now |
|
Farnell
from US$1.07
|
38,000
in stock
|
Buy Now |
|
Newark Electronics
from US$0.11
|
235
in stock
|
Buy Now |
|
element14
from US$0.84
|
125
in stock
|
Buy Now |
|
RS
from US$0.81
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.61
|
0
in stock
|
Buy Now |
|
TME
from US$0.72
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.92
|
0
in stock
|
Buy Now |
|
TTI Asia
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.0A |
| Voltage Maximum | 125V |
Physical |
|
|---|---|
| Actuator Type | Slider |
| Circuits Loaded | 5 |
| Color Resin | Natural |
| Contact Position | N/A |
| Durability Mating Cycles Max | 30 |
| Flammability | 94V-0 |
| Mated Height | 5.75mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin-Silver-Bismuth |
| Material Plating Termination | Tin-Silver-Bismuth |
| Material Resin | Nylon |
| Net Weight | 334.300/mg |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pc Tail Length | 2.00mm |
| Pitch Mating Interface | 1.00mm |
| Pitch Termination Interface | 1.00mm |
| Polarized To Pcb | No |
| Stackable | No |
| Temperature Range Operating | -40° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex FFC/FPC-Anschluss Polzahl Gesamt 5 Rastermaß: 1 mm 526100533 1 St. Tape on Full reel | Conrad |
| FPC CONN, RCPT, 5POS, 1ROW, 1MM | Farnell |
| Connector, Ffc/Fpc, 5Pos, 1Row, 1Mm Rohs Compliant: Yes |Molex 52610-0533 | Newark Electronics |
| CONNECTOR, FFC/FPC, 5POS, 1ROW, 1MM | element14 |
| Molex 52610-0533 FPC Connector | RS |
| EASY-ON FFC/FPC CONNECTOR 1.00MM PITCH | Avnet America |
| Connector: FFC/FPC | TME |
| 1.0 FPC ZIF SMT ST 5CKT EMBSTP PKG | RS Americas |
| 1.00MM EASY-ON 05P SMT VT | TTI Asia |
