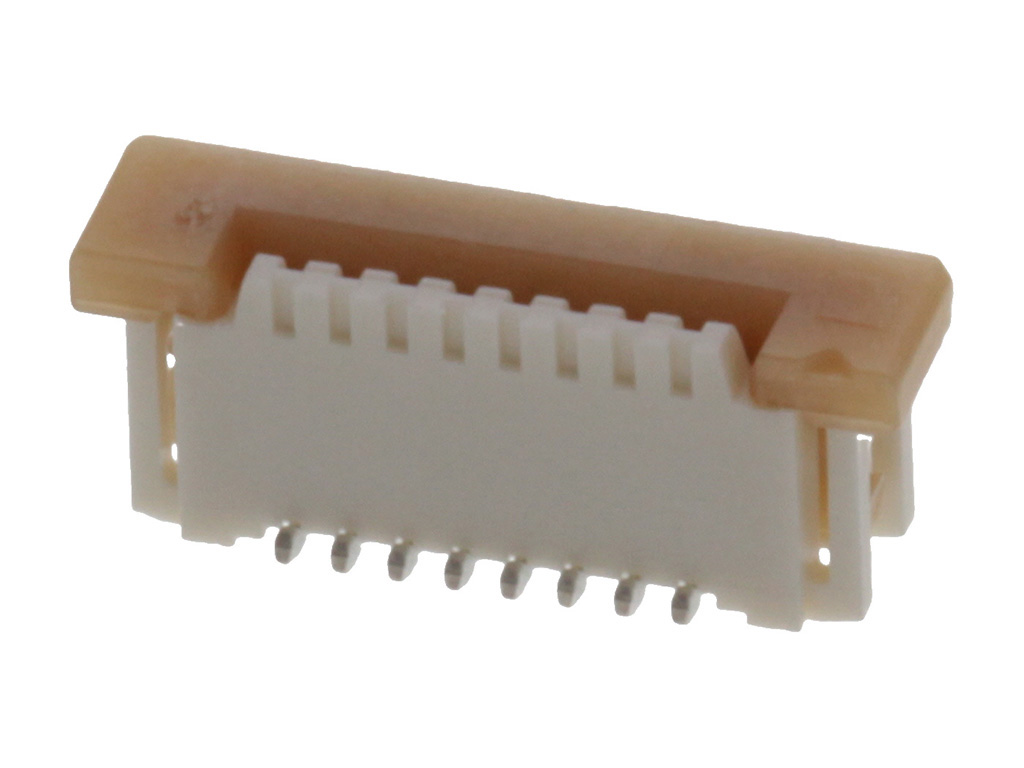

526100833 Easy-On by Molex
Easy-On FFC/FPC Connector, 1.00mm Pitch, Slider Series, Vertical, 5.75mm Height, 8 Circuits, Tin-Silver-Bismuth Plating
| Status: | Obsolete |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52610-0833,
0526100833 |
Where to Buy
Prices starting from US$0.47
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$1.26
|
1,000
in stock
|
Buy Now |
|
Farnell
from US$1.26
|
1,000
in stock
|
Buy Now |
|
TME
from US$0.91
|
7
in stock
|
Buy Now |
|
RS Americas
from US$1.55
|
0
in stock
|
Buy Now |
|
EME
from US$0.47
|
0
in stock
|
Buy Now |
|
Newark Electronics
-
|
0
in stock
|
Buy Now |
|
Avnet America
-
|
0
in stock
|
Buy Now |
|
TTI Asia
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.0A |
| Voltage Maximum | 125V |
Physical |
|
|---|---|
| Actuator Type | Slider |
| Circuits Loaded | 8 |
| Color Resin | Natural |
| Contact Position | N/A |
| Durability Mating Cycles Max | 30 |
| Flammability | 94V-0 |
| Mated Height | 5.75mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin-Silver-Bismuth |
| Material Plating Termination | Tin-Silver-Bismuth |
| Material Resin | Nylon |
| Net Weight | 453.700/mg |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pc Tail Length | 2.00mm |
| Pitch Mating Interface | 1.00mm |
| Pitch Termination Interface | 1.00mm |
| Polarized To Pcb | No |
| Stackable | No |
| Temperature Range Operating | -40° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex FFC/FPC-Anschluss Polzahl Gesamt 8 Rastermaß: 1 mm 526100833 1 St. Tape on Full reel | Conrad |
| FPC CONN, RCPT, 8POS, 1ROW, 1MM | Farnell |
| Connector: FFC/FPC | TME |
| RECEPTACLE 1.0MM FFC/FPC STRAIGHT,8W | RS Americas |
| Ffc/Fpc Board Connector, Easy-On Series, Surface Mount, Receptacle, 8, Top, 1 Mm Rohs Compliant: Yes |Molex 52610-0833 | Newark Electronics |
| 1.00MM REC 08P VT SMT | TTI Asia |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 526100833?
Additional datasheets, footprints and schematics for 526100833 are listed on our Part Details page. You can also find images and similar parts to 526100833 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 526100833 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 526100833 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 526100833 fall under?
The 526100833 is listed under FFC / FPC Connectors.
Can I view similar or alternative parts?
You can view similar parts to 526100833 when available in the FFC / FPC Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 526100833 you can contact the distributor directly for product support, shipping queries etc.
Is the 526100833 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 526100833 have stock available?
Authorised distributors including Conrad, Farnell, TME, RS Americas and EME have stock available or on a lead time for 526100833.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 526100833 often in real-time on the comparison pages.
What if I can't find stock of 526100833?
You can fill out our help required form which you can use to request a quote for 526100833 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
