526100872 Easy-On by Molex

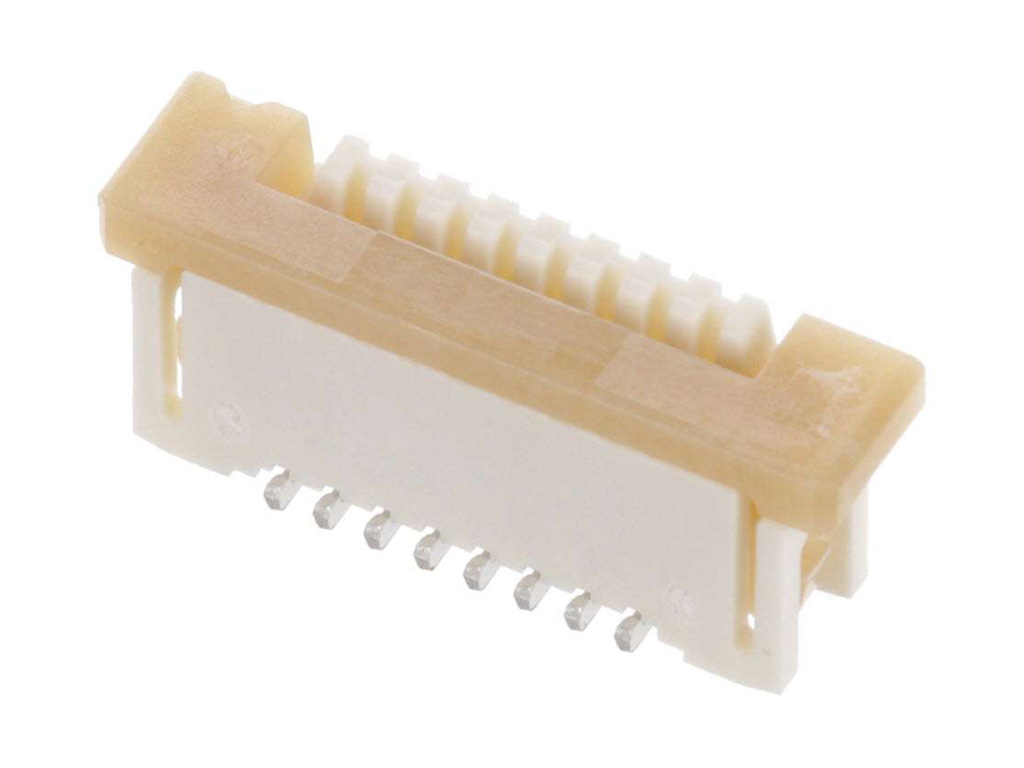

Easy-On FFC/FPC Connector, 1.00mm Pitch, Slider Series, Vertical, 5.75mm Height, 8 Circuits, Gold Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52610-0872,
0526100872 |
Where to Buy
Prices starting from US$0.38
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$1.36
|
5,138
in stock
|
Buy Now |
|
element14
from US$0.68
|
5,138
in stock
|
Buy Now |
|
Farnell
from US$0.65
|
5,138
in stock
|
Buy Now |
|
TME
from US$0.96
|
974
in stock
|
Buy Now |
|
CoreStaff
from US$1.06
|
611
in stock
|
Buy Now |
|
RS
from US$0.90
|
580
in stock
|
Buy Now |
|
Compona
from US$0.74
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$0.68
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.38
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.69
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.45
|
0
in stock
|
Buy Now |
|
EME
from US$0.82
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.0A |
| Voltage Maximum | 125V |
Physical |
|
|---|---|
| Actuator Type | Slider |
| Circuits Loaded | 8 |
| Color Resin | Natural |
| Contact Position | N/A |
| Durability Mating Cycles Max | 30 |
| Flammability | 94V-0 |
| Mated Height | 5.75mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 452.844/mg |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pc Tail Length | 2.00mm |
| Pitch Mating Interface | 1.00mm |
| Pitch Termination Interface | 1.00mm |
| Polarized To Pcb | No |
| Stackable | No |
| Temperature Range Operating | -40° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Ffc/Fpc Board Connector, Surface Mount, Receptacle, 8, 1 Mm Rohs Compliant: Yes |Molex 52610-0872 | Newark Electronics |
| CONNECTOR, FFC/FPC, 8POS, 1ROW, 1MM | element14 |
| Connector: FFC/FPC | TME |
| Molex 52610-0872 FPC Connector | RS |
| MOLEX 52610-0872 Plug FFC 8p SMT | Compona |
| 1.00 MM FFC/FPC CONNECTOR 8CKT | TTI Europe |
| 1.0 FPC ZIF SMT HSG ASSY 8CKT EMBSTPPKG | Heilind Americas |
| 1.0 FPC ZIF SMT HSG ASSY 8CKT | TTI Asia |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 526100872?
Additional datasheets, footprints and schematics for 526100872 are listed on our Part Details page. You can also find images and similar parts to 526100872 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 526100872 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 526100872 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 526100872 fall under?
The 526100872 is listed under FFC / FPC Connectors.
Can I view similar or alternative parts?
You can view similar parts to 526100872 when available in the FFC / FPC Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 526100872 you can contact the distributor directly for product support, shipping queries etc.
Is the 526100872 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 526100872 have stock available?
Authorised distributors including Newark Electronics, element14, Farnell, TME and CoreStaff have stock available or on a lead time for 526100872.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 526100872 often in real-time on the comparison pages.
What if I can't find stock of 526100872?
You can fill out our help required form which you can use to request a quote for 526100872 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
