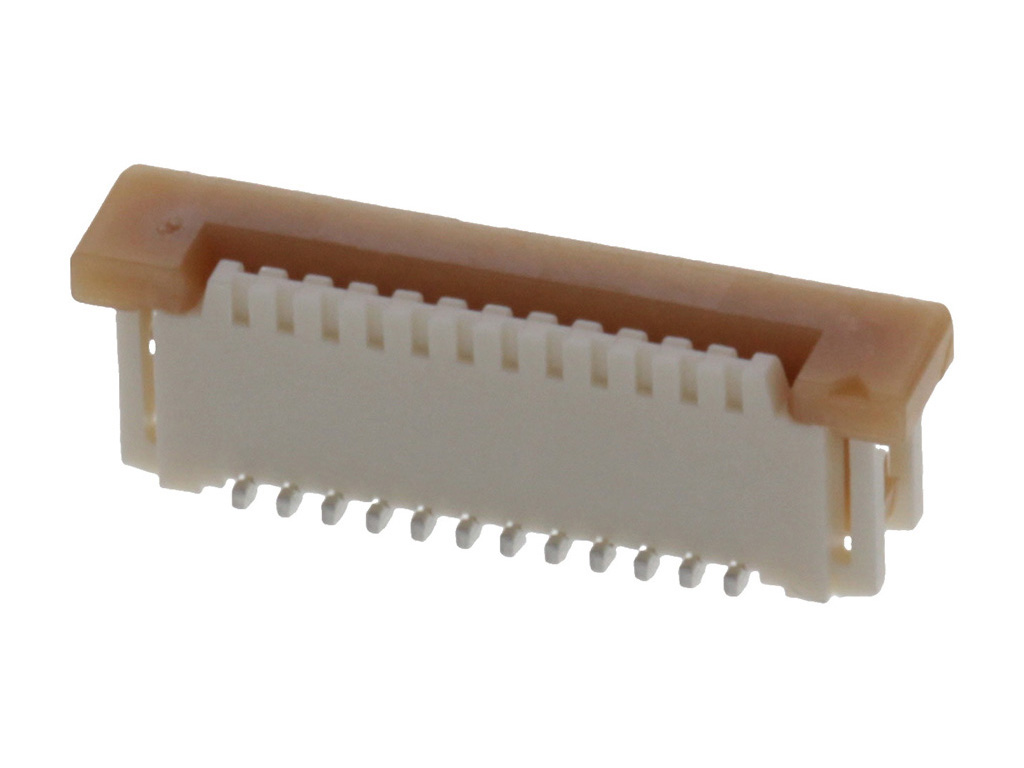

526101272 Easy-On by Molex
Easy-On FFC/FPC Connector, 1.00mm Pitch, Slider Series, Vertical, 5.75mm Height, 12 Circuits, Gold Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52610-1272,
0526101272 |
Where to Buy
Prices starting from US$0.67
| Distributor | Stock | ||
|---|---|---|---|
|
Farnell
from US$1.01
|
3,500
in stock
|
Buy Now |
|
Conrad
from US$1.35
|
3,438
in stock
|
Buy Now |
|
RS
from US$0.94
|
1,710
in stock
|
Buy Now |
|
element14
from US$1.01
|
856
in stock
|
Buy Now |
|
TME
from US$1.04
|
367
in stock
|
Buy Now |
|
Newark Electronics
from US$1.09
|
25
in stock
|
Buy Now |
|
Compona
from US$0.89
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$0.84
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.77
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.79
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.67
|
0
in stock
|
Buy Now |
|
EME
from US$0.99
|
0
in stock
|
Buy Now |
|
Rutronik
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.0A |
| Voltage Maximum | 125V |
Physical |
|
|---|---|
| Actuator Type | Slider |
| Circuits Loaded | 12 |
| Color Resin | Natural |
| Contact Position | N/A |
| Durability Mating Cycles Max | 30 |
| Flammability | 94V-0 |
| Mated Height | 5.75mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 612.040/mg |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pc Tail Length | 2.00mm |
| Pitch Mating Interface | 1.00mm |
| Pitch Termination Interface | 1.00mm |
| Polarized To Pcb | No |
| Stackable | No |
| Temperature Range Operating | -40° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| FPC CONN, RCPT, 12POS, 1ROW, 1MM | Farnell |
| Molex FFC/FPC-Anschluss Polzahl Gesamt 12 Rastermaß: 1 mm 526101272 1 St. Tape on Full reel | Conrad |
| Molex 52610-1272 FPC Connector | RS |
| CONNECTOR, FFC/FPC, 12POS, 1ROW, 1MM | element14 |
| Connector: FFC/FPC | TME |
| 1.0 Fpc Zif Smt Hsg Assy 12Ckt Embstppkg Rohs Compliant: Yes |Molex 52610-1272 | Newark Electronics |
| MOLEX 52610-1272 Plug FFC 12p SMT | Compona |
| 1.00 MM FFC/FPC CONNECTOR 12CK | TTI Europe |
| 1.0 FPC ZIF SMT HSG ASSY 12CK EMBSTPPKG | Heilind Americas |
| 1.00MM REC 12P VT SMT | TTI Asia |
| 12P FFC/FPC ZIF SMT STR Au | Rutronik |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 526101272?
Additional datasheets, footprints and schematics for 526101272 are listed on our Part Details page. You can also find images and similar parts to 526101272 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 526101272 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 526101272 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 526101272 fall under?
The 526101272 is listed under FFC / FPC Connectors.
Can I view similar or alternative parts?
You can view similar parts to 526101272 when available in the FFC / FPC Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 526101272 you can contact the distributor directly for product support, shipping queries etc.
Is the 526101272 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 526101272 have stock available?
Authorised distributors including Farnell, Conrad, RS, element14 and TME have stock available or on a lead time for 526101272.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 526101272 often in real-time on the comparison pages.
What if I can't find stock of 526101272?
You can fill out our help required form which you can use to request a quote for 526101272 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
