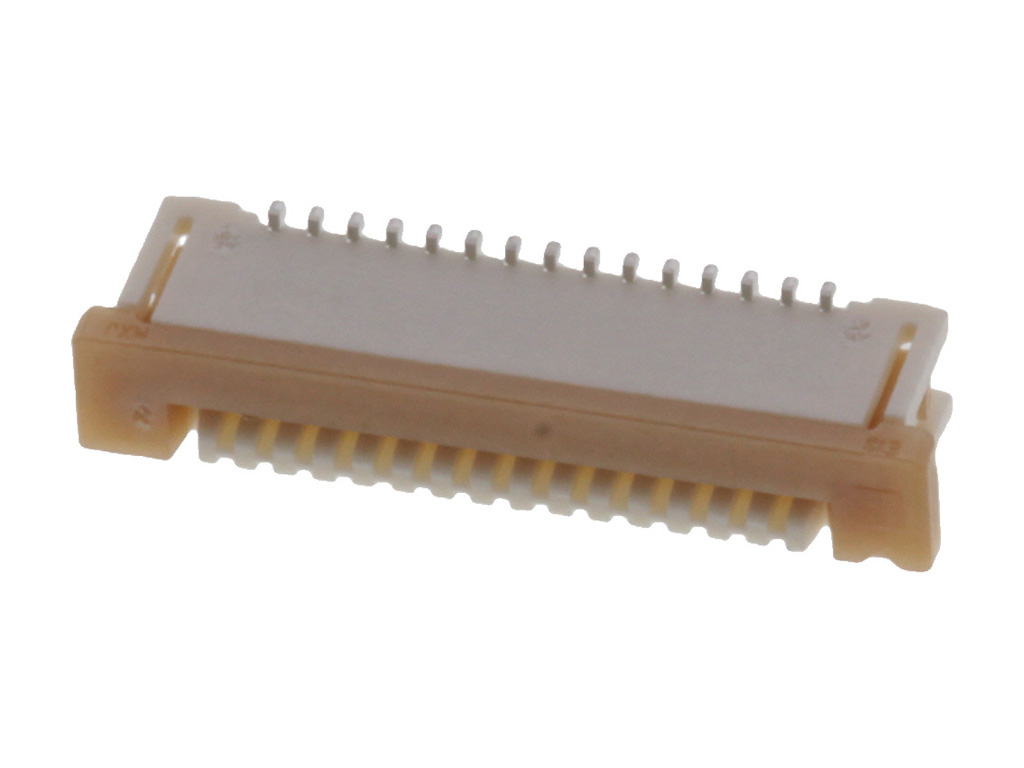

526101572 Easy-On by Molex
Easy-On FFC/FPC Connector, 1.00mm Pitch, Slider Series, Vertical, 5.75mm Height, 15 Circuits, Gold Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52610-1572,
0526101572 |
Where to Buy
Prices starting from US$0.87
| Distributor | Stock | ||
|---|---|---|---|
|
TME
from US$1.25
|
4,000
in stock
|
Buy Now |
|
Newark Electronics
from US$1.62
|
637
in stock
|
Buy Now |
|
element14
from US$1.32
|
637
in stock
|
Buy Now |
|
Farnell
from US$1.50
|
637
in stock
|
Buy Now |
|
Avnet America
from US$0.87
|
0
in stock
|
Buy Now |
|
RS Americas
from US$1.14
|
0
in stock
|
Buy Now |
|
Conrad
from US$1.16
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$0.97
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$1.14
|
0
in stock
|
Buy Now |
|
Sager
from US$1.06
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.92
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.99
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.96
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.0A |
| Voltage Maximum | 125V |
Physical |
|
|---|---|
| Actuator Type | Slider |
| Circuits Loaded | 15 |
| Color Resin | Natural |
| Contact Position | N/A |
| Durability Mating Cycles Max | 30 |
| Flammability | 94V-0 |
| Mated Height | 5.75mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 731.200/mg |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pc Tail Length | 2.00mm |
| Pitch Mating Interface | 1.00mm |
| Pitch Termination Interface | 1.00mm |
| Polarized To Pcb | No |
| Stackable | No |
| Temperature Range Operating | -40° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Connector: FFC/FPC | TME |
| Connector, Fpc, 15Pos, 1 Row, 1Mm Rohs Compliant: Yes |Molex 52610-1572 | Newark Electronics |
| CONNECTOR, FPC, 15POS, 1 ROW, 1MM | element14 |
| Conn FPC Connector RCP 15 POS 1mm Solder ST SMD Embossed T/R | Avnet America |
| 1.0 FPC ZIF SMT HSG ASSY 15CKT EMBSTPPKG | RS Americas |
| Molex FFC/FPC-Anschluss Polzahl Gesamt 15 Rastermaß: 1 mm 526101572 1 St. | Conrad |
| 1.00MM REC 16P VT SMT | TTI Americas |
| 1.0 FPC ZIF SMT HSG ASSY | TTI Europe |
| FFC & FPC Connectors 1.00MM REC 16P VT SMT | Sager |
| 1.0 FPC ZIF SMT HSG ASSY EMBSTPPKG | Heilind Americas |
