526101672 Easy-On by Molex

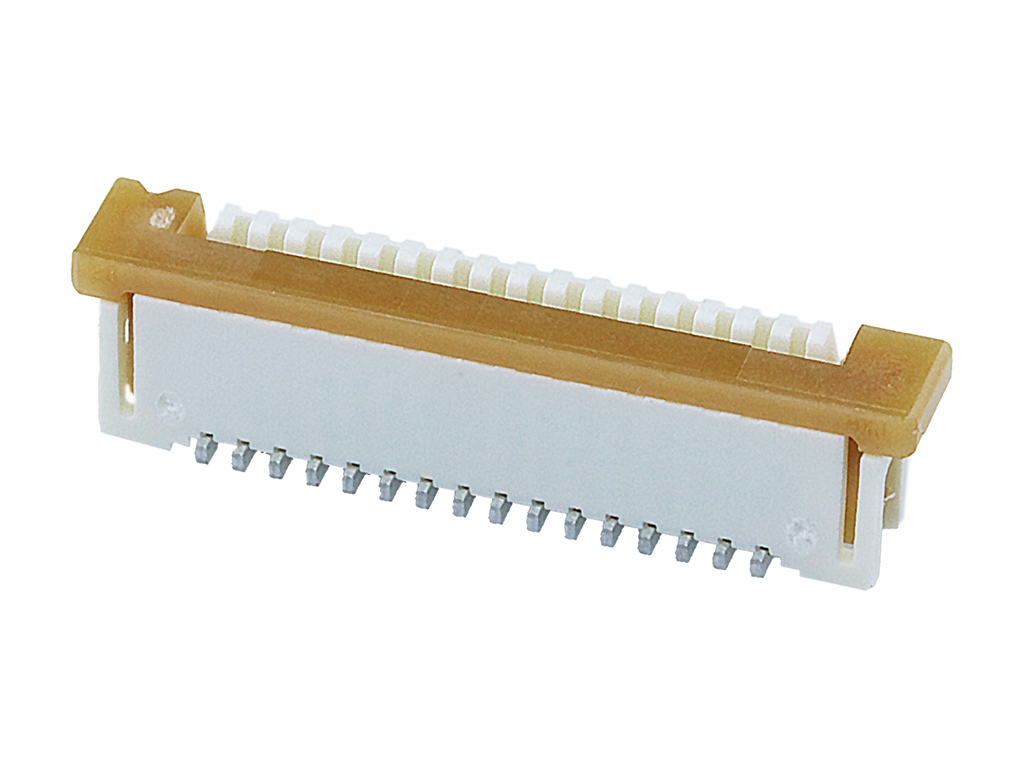

Easy-On FFC/FPC Connector, 1.00mm Pitch, Slider Series, Vertical, 5.75mm Height, 16 Circuits, Gold Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52610-1672,
0526101672 |
Where to Buy
Prices starting from US$0.79
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$1.91
|
7,000
in stock
|
Buy Now |
|
Farnell
from US$1.15
|
6,500
in stock
|
Buy Now |
|
Newark Electronics
from US$1.27
|
738
in stock
|
Buy Now |
|
element14
from US$1.16
|
738
in stock
|
Buy Now |
|
RS
from US$1.41
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.91
|
0
in stock
|
Buy Now |
|
TME
from US$1.18
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$1.31
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$1.08
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.79
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.96
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.86
|
0
in stock
|
Buy Now |
|
EME
from US$1.13
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.0A |
| Voltage Maximum | 125V |
Physical |
|
|---|---|
| Actuator Type | Slider |
| Circuits Loaded | 16 |
| Color Resin | Natural |
| Contact Position | N/A |
| Durability Mating Cycles Max | 30 |
| Flammability | 94V-0 |
| Mated Height | 5.75mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 0.780/g |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pc Tail Length | 2.00mm |
| Pitch Mating Interface | 1.00mm |
| Pitch Termination Interface | 1.00mm |
| Polarized To Pcb | No |
| Stackable | No |
| Temperature Range Operating | -40° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex FFC/FPC-Anschluss Polzahl Gesamt 16 Rastermaß: 1 mm 526101672 1 St. Tape on Full reel | Conrad |
| FPC CONN, RCPT, 16POS, 1ROW, 1MM | Farnell |
| Connector, Ffc/Fpc, 16Pos, 1Row, 1Mm | Newark Electronics |
| CONNECTOR, FFC/FPC, 16POS, 1ROW, 1MM | element14 |
| Molex 526101672 FPC Connector | RS |
| FFC / FPC Board Connector, 1 mm, 16 Contacts, Receptacle, Easy-On 52610 Series, Surface Mount | Avnet America |
| Connector: FFC/FPC | TME |
| 1.0 FPC ZIF SMT HSG ASSY 16CKT EMBSTPPKG | RS Americas |
| 1.00 MM FFC/FPC CONNECTOR 16CK | TTI Europe |
| 1.0 FPC ZIF SMT HSG ASSY 16CK EMBSTPPKG | Heilind Americas |
| 1.0 FPC ZIF SMT HSG ASSY 16CK | TTI Asia |
