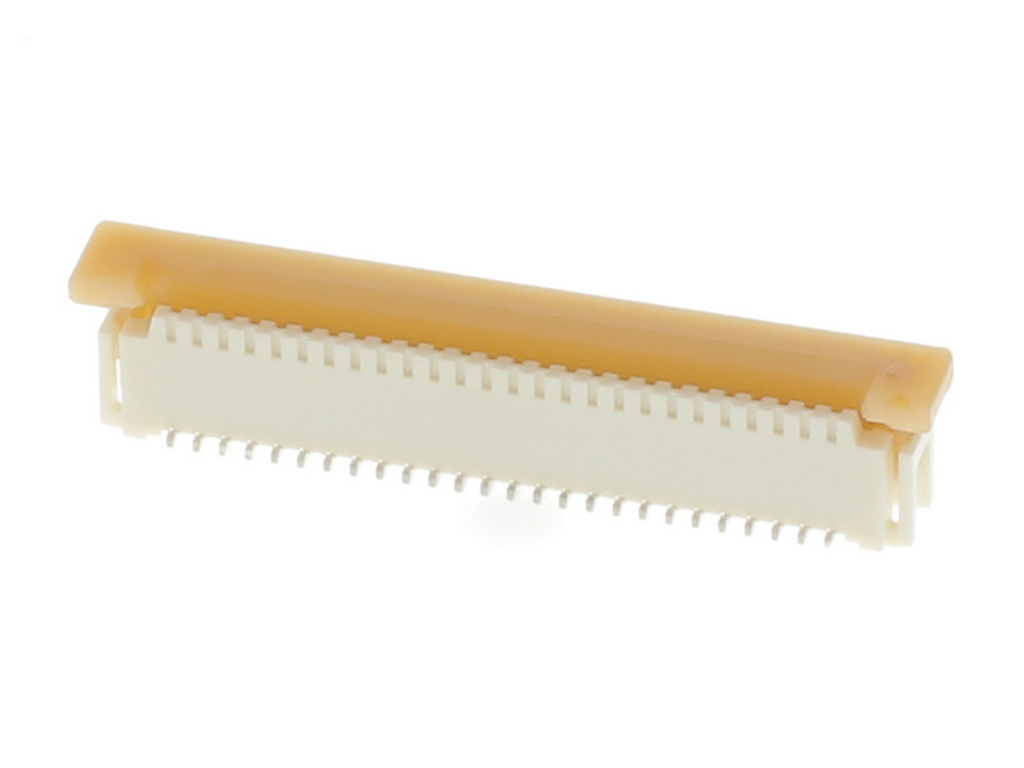

526102633 Easy-On by Molex
Easy-On FFC/FPC Connector, 1.00mm Pitch, Slider Series, Vertical, 5.75mm Height, 26 Circuits, Tin-Silver-Bismuth Plating
| Status: | Obsolete |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52610-2633,
0526102633 |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.0A |
| Voltage Maximum | 125V |
Physical |
|
|---|---|
| Actuator Type | Slider |
| Circuits Loaded | 26 |
| Color Resin | Natural |
| Contact Position | N/A |
| Durability Mating Cycles Max | 30 |
| Flammability | 94V-0 |
| Mated Height | 5.75mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin-Silver-Bismuth |
| Material Plating Termination | Tin-Silver-Bismuth |
| Material Resin | Nylon |
| Net Weight | 1170.400/mg |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pc Tail Length | 2.00mm |
| Pitch Mating Interface | 1.00mm |
| Pitch Termination Interface | 1.00mm |
| Polarized To Pcb | No |
| Stackable | No |
| Temperature Range Operating | -40° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 52610 SERIES 1MM PITCH 26 WAY STRAIGHT FEMALE FPC CONN, ZIF VERTICAL CONTACT | RS Americas |
| CONNECTOR, FFC/FPC, 26POS, 1ROW, 1MM | Farnell |
| Ffc/Fpc Board Connector, Zif, Surface Mount, Receptacle, 26, 1 Mm Rohs Compliant: Yes |Molex 52610-2633 | Newark Electronics |
| Conn FFC/FPC Connector SKT 26 POS 1mm Solder ST SMD Embossed T/R | Avnet Abacus |
| 1.00MM REC 26P VT SMT | TTI Asia |
