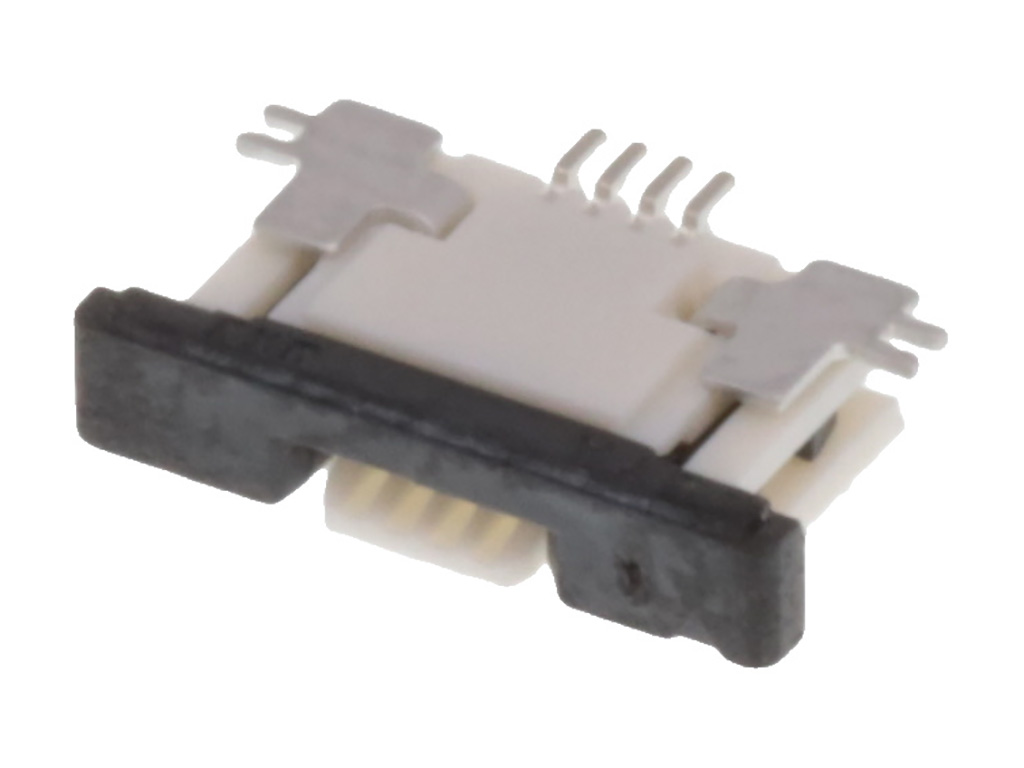

527450433 Easy-On by Molex
Easy-On FFC/FPC Connector, 0.50mm Pitch, Slider Series, Right-Angle, Top Contact, 2.00mm Height, 4 Circuits, Tin-Silver-Bismuth
| Status: | Obsolete |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52745-0433,
0527450433 |
Where to Buy
Prices starting from US$0.44
| Distributor | Stock | ||
|---|---|---|---|
|
TME
from US$0.52
|
2,000
in stock
|
Buy Now |
|
Conrad
from US$0.81
|
2,000
in stock
|
Buy Now |
|
Farnell
from US$0.75
|
2,000
in stock
|
Buy Now |
|
RS
from US$0.57
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.44
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.55
|
0
in stock
|
Buy Now |
|
element14
from US$0.53
|
0
in stock
|
Buy Now |
|
Newark Electronics
-
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Slider |
| Circuits Loaded | 4 |
| Color Resin | Black, White |
| Contact Position | Top |
| Durability Mating Cycles Max | 20 |
| Flammability | 94V-0 |
| Mated Height | 2.00mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin-Silver-Bismuth |
| Material Plating Termination | Tin-Silver-Bismuth |
| Material Resin | Nylon |
| Net Weight | 96.630/mg |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | Yes |
| Pc Tail Length | 2.00mm |
| Pitch Mating Interface | 0.50mm |
| Pitch Termination Interface | 0.50mm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Connector: FFC/FPC | TME |
| Molex FFC/FPC-Anschluss Polzahl Gesamt 4 Rastermaß: 0.50 mm 527450433 1 St. Tape on Full reel | Conrad |
| FFC-FPC CONNNECTORS | Farnell |
| Molex 52745-0433 FPC Connector | RS |
| EASY-ON FFC/FPC CONNECTOR 0.50MM PITCH | Avnet America |
| 0.5 FPC ZIF FOR SMT ASSY 4CKT EMBSTP PKG | RS Americas |
| CONNECTOR, FFC/FPC, 4POS, 1ROW, 0.5MM | element14 |
| Connector, Ffc/Fpc, 4Pos, 1Row, 0.5Mm Rohs Compliant: Yes |Molex 52745-0433 | Newark Electronics |
| Conn FFC/FPC Connector SKT 4 POS 0.5mm Solder RA SMD Embossed T/R | Avnet Abacus |
