527451197 Easy-On by Molex

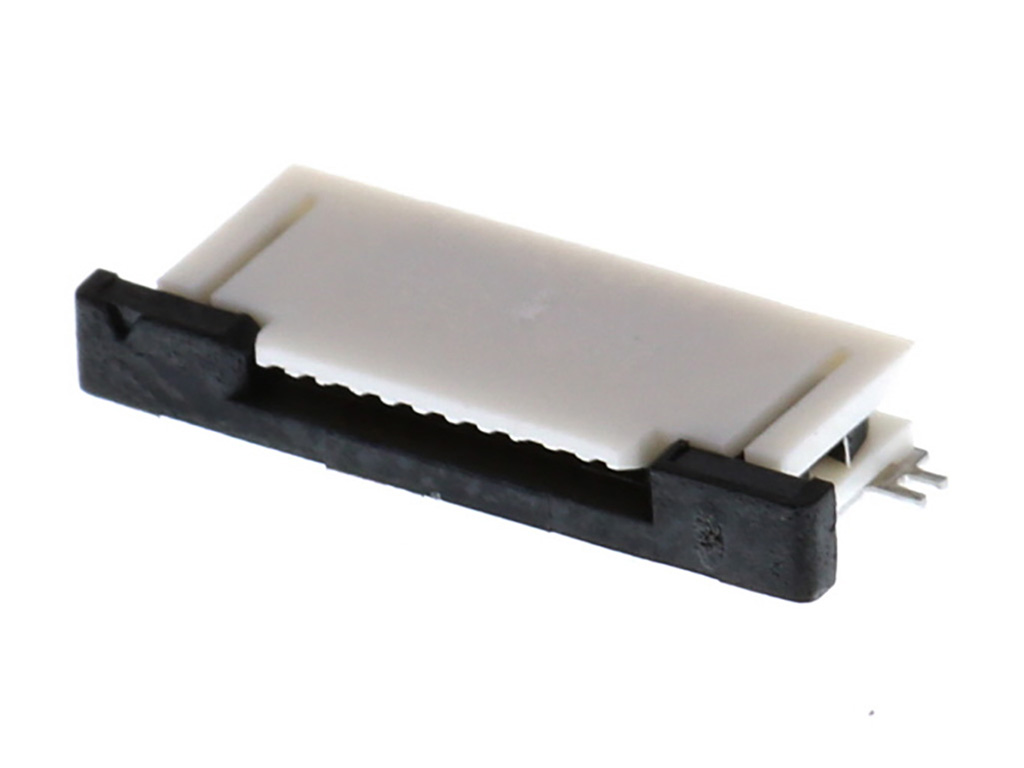

Easy-On FFC/FPC Connector, 0.50mm Pitch, Slider Series, Right-Angle, Top Contact, 2.00mm Height, 11 Circuits, Gold Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52745-1197,
0527451197 |
Where to Buy
Prices starting from US$0.56
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$1.43
|
6,000
in stock
|
Buy Now |
|
Heilind Europe
from US$0.60
|
5,000
in stock
|
Buy Now |
|
Newark Electronics
from US$1.10
|
2,300
in stock
|
Buy Now |
|
element14
from US$1.09
|
1,209
in stock
|
Buy Now |
|
Farnell
from US$1.21
|
1,209
in stock
|
Buy Now |
|
Avnet America
from US$0.79
|
0
in stock
|
Buy Now |
|
Compona
from US$0.56
|
0
in stock
|
Buy Now |
|
|
Heilind Americas
from US$0.75
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Slider |
| Circuits Loaded | 11 |
| Color Resin | Black, White |
| Contact Position | Top |
| Durability Mating Cycles Max | 20 |
| Flammability | 94V-0 |
| Mated Height | 2.00mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Net Weight | 166.104/mg |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pitch Mating Interface | 0.50mm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex FFC/FPC-Anschluss Polzahl Gesamt 11 Rastermaß: 0.50 mm 527451197 1 St. Tape on Full reel | Conrad |
| 0.5 FPC ZIF SMT HSG ASSY EMBSTPPKG | Heilind Europe |
| Connector, Ffc/Fpc, 11Pos, 1Row, 0.5Mm | Newark Electronics |
| CONNECTOR, FFC/FPC, 11POS, 1ROW, 0.5MM | element14 |
| Conn FFC/FPC Socket 11 POS 0.5mm Solder Right Angle Surface Mount | Avnet America |
| MOLEX 52745-1197 Plug FFC 11p SMT | Compona |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 527451197?
Additional datasheets, footprints and schematics for 527451197 are listed on our Part Details page. You can also find images and similar parts to 527451197 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 527451197 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 527451197 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 527451197 fall under?
The 527451197 is listed under FFC / FPC Connectors.
Can I view similar or alternative parts?
You can view similar parts to 527451197 when available in the FFC / FPC Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 527451197 you can contact the distributor directly for product support, shipping queries etc.
Is the 527451197 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 527451197 have stock available?
Authorised distributors including Conrad, Heilind Europe, Newark Electronics, element14 and Farnell have stock available or on a lead time for 527451197.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 527451197 often in real-time on the comparison pages.
What if I can't find stock of 527451197?
You can fill out our help required form which you can use to request a quote for 527451197 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
