527460671 Easy-On by Molex

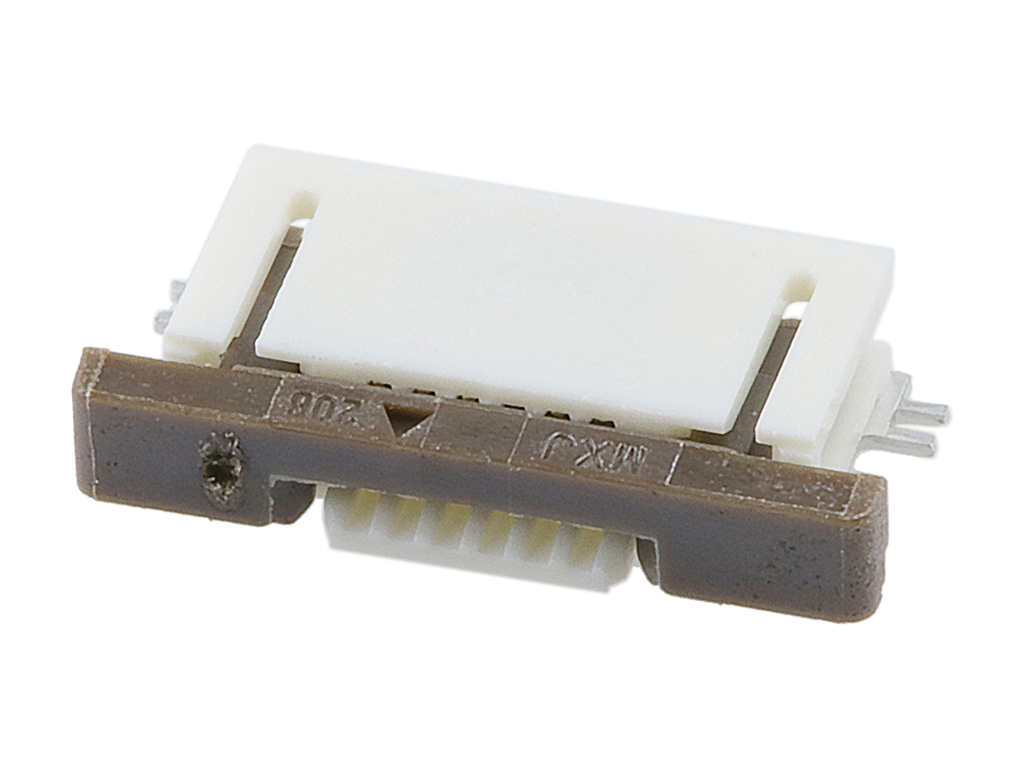

Easy-On FFC/FPC Connector, 0.50mm Pitch, Slider Series, Right-Angle, Bottom Contact, 2.00mm Height, 6 Circuits, Gold Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52746-0671,
0527460671 |
Where to Buy
Prices starting from US$0.34
| Distributor | Stock | ||
|---|---|---|---|
|
Rutronik
from US$0.39
|
74,000
in stock
|
Buy Now |
|
TTI Europe
from US$0.53
|
17,000
in stock
|
Buy Now |
|
Newark Electronics
from US$0.71
|
4,000
in stock
|
Buy Now |
|
Farnell
from US$0.78
|
3,600
in stock
|
Buy Now |
|
element14
from US$0.68
|
2,116
in stock
|
Buy Now |
|
RS
from US$0.62
|
1,722
in stock
|
Buy Now |
|
|
TTI Americas
from US$0.50
|
1,000
in stock
|
Buy Now |
|
Conrad
from US$0.95
|
981
in stock
|
Buy Now |
|
TME
from US$0.56
|
150
in stock
|
Buy Now |
|
Avnet Abacus
-
|
19,000
in stock
|
Buy Now |
|
Avnet America
from US$0.56
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.78
|
0
in stock
|
Buy Now |
|
Compona
from US$0.36
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.47
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.34
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.34
|
0
in stock
|
Buy Now |
|
EME
from US$0.44
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Slider |
| Circuits Loaded | 6 |
| Color Resin | Natural |
| Contact Position | Bottom |
| Durability Mating Cycles Max | 20 |
| Flammability | 94V-0 |
| Mated Height | 2.00mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Material Resin | Nylon |
| Net Weight | 106.848/mg |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pc Tail Length | 2.00mm |
| Pitch Mating Interface | 0.50mm |
| Pitch Termination Interface | 0.50mm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 06P FFC/FPC ZIF SMT 90° Au | Rutronik |
| .50 MM FFC/FPC CONNECTOR 6CKT | TTI Europe |
| Ffc & Fpc Connectors 0.5 Fpc Zif Hsg Assy Smt Ra6 |Molex 52746-0671 | Newark Electronics |
| FPC CONN, RCPT, 6POS, 1ROW, 0.5MM | Farnell |
| CONNECTOR, FFC/FPC, 6POS, 1ROW, 0.5MM | element14 |
| Molex 52746-0671 FPC Connector | RS |
| .5MM REC 06P RA SMT BOT AU | TTI Americas |
| Molex FFC/FPC-Anschluss Polzahl Gesamt 6 Rastermaß: 0.5 mm 527460671 1 St. Tape on Full reel | Conrad |
| Connector: FFC/FPC | TME |
| FFC/FPC Connector Socket 6 Position 0.5 mm Solder Right Angle Surface Mount Emboss T/R | Avnet Abacus |
| FFC/FPC SMT SER.5MM PITCH 6WAY RIGHTANGLE SMT FEMALE FPC CONN, ZIF BOTTOM CONTACT | RS Americas |
| MOLEX 52746-0671 Plug FFC 6p SMT | Compona |
| 0.5 FPC ZIF HSG ASSY SMT RA6C TEMBSTPPKG | Heilind Americas |
