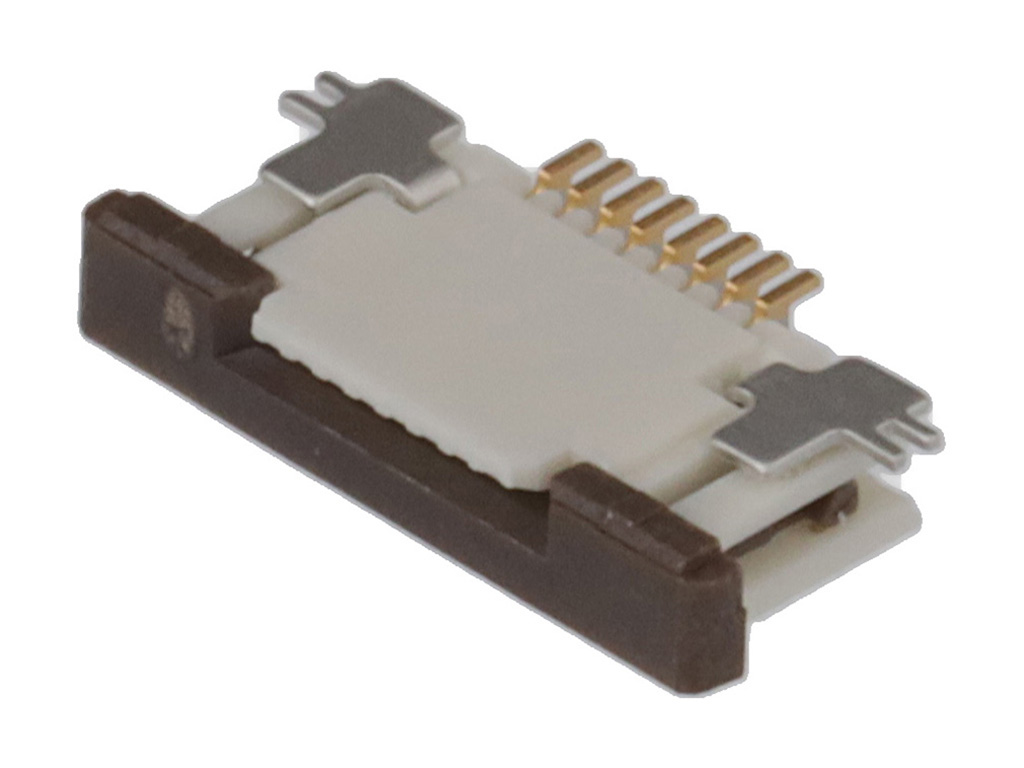

527460871 Easy-On by Molex
Easy-On FFC/FPC Connector, 0.50mm Pitch, Slider Series, Right-Angle, Bottom Contact, 2.00mm Height, 8 Circuits, Gold Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52746-0871,
0527460871 |
Where to Buy
Prices starting from US$0.37
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$0.76
|
47,000
in stock
|
Buy Now |
|
Farnell
from US$0.82
|
42,300
in stock
|
Buy Now |
|
TTI Europe
from US$0.69
|
6,000
in stock
|
Buy Now |
|
CoreStaff
from US$0.46
|
5,597
in stock
|
Buy Now |
|
element14
from US$0.87
|
1,529
in stock
|
Buy Now |
|
Rapid Electronics
from US$0.98
|
928
in stock
|
Buy Now |
|
Conrad
from US$0.39
|
928
in stock
|
Buy Now |
|
RS
from US$1.03
|
10
in stock
|
Buy Now |
|
Rutronik
from US$0.44
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.57
|
0
in stock
|
Buy Now |
|
TME
from US$0.48
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.98
|
0
in stock
|
Buy Now |
|
Compona
from US$0.52
|
0
in stock
|
Buy Now |
|
|
TTI Americas
from US$0.48
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.59
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.37
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.52
|
0
in stock
|
Buy Now |
|
EME
from US$0.47
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Slider |
| Circuits Loaded | 8 |
| Color Resin | Natural |
| Contact Position | Bottom |
| Durability Mating Cycles Max | 20 |
| Flammability | 94V-0 |
| Mated Height | 2.00mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Material Resin | Nylon |
| Net Weight | 124.364/mg |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pc Tail Length | 2.00mm |
| Pitch Mating Interface | 0.50mm |
| Pitch Termination Interface | 0.50mm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Ffc/Fpc Board Connector, Zif, Surface Mount, Receptacle, 8, Bottom, 0.5 Mm |Molex 52746-0871 | Newark Electronics |
| FPC CONN, RCPT, 8POS, 1ROW, 0.5MM | Farnell |
| .50 MM FFC/FPC CONNECTOR 8CKT | TTI Europe |
| CONNECTOR, FFC/FPC, 8POS, 1ROW, 0.5MM | element14 |
| Molex 527460871 Easy-on Connector 8 Pins 0.5mm Pitch Gold Plated | Rapid Electronics |
| Molex FFC/FPC-Anschluss Polzahl Gesamt 8 Rastermaß: 0.5 mm 527460871 1 St. Tape on Full reel | Conrad |
| Molex 52746-0871 FPC Connector | RS |
| 08P FFC/FPC ZIF SMT 90° Au | Rutronik |
| Conn FFC/FPC Socket 8 POS 0.5mm Solder RA SMD | Avnet America |
| Connector: FFC/FPC | TME |
| FFC/FPC SMT SER.5MM PITCH 8WAY RIGHTANGLE SMT FEMALE FPC CONN, ZIF BOTTOM CONTACT | RS Americas |
| MOLEX 52746-0871 Plug FFC 8p SMT | Compona |
| .5MM REC 08P RA SMT BOT AU | TTI Americas |
| 0.5 FPC ZIF HSG ASSY SMT RA8C TEMBSTPPKG | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 527460871?
Additional datasheets, footprints and schematics for 527460871 are listed on our Part Details page. You can also find images and similar parts to 527460871 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 527460871 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 527460871 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 527460871 fall under?
The 527460871 is listed under FFC / FPC Connectors.
Can I view similar or alternative parts?
You can view similar parts to 527460871 when available in the FFC / FPC Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 527460871 you can contact the distributor directly for product support, shipping queries etc.
Is the 527460871 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 527460871 have stock available?
Authorised distributors including Newark Electronics, Farnell, TTI Europe, CoreStaff and element14 have stock available or on a lead time for 527460871.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 527460871 often in real-time on the comparison pages.
What if I can't find stock of 527460871?
You can fill out our help required form which you can use to request a quote for 527460871 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
