527461271 Easy-On by Molex

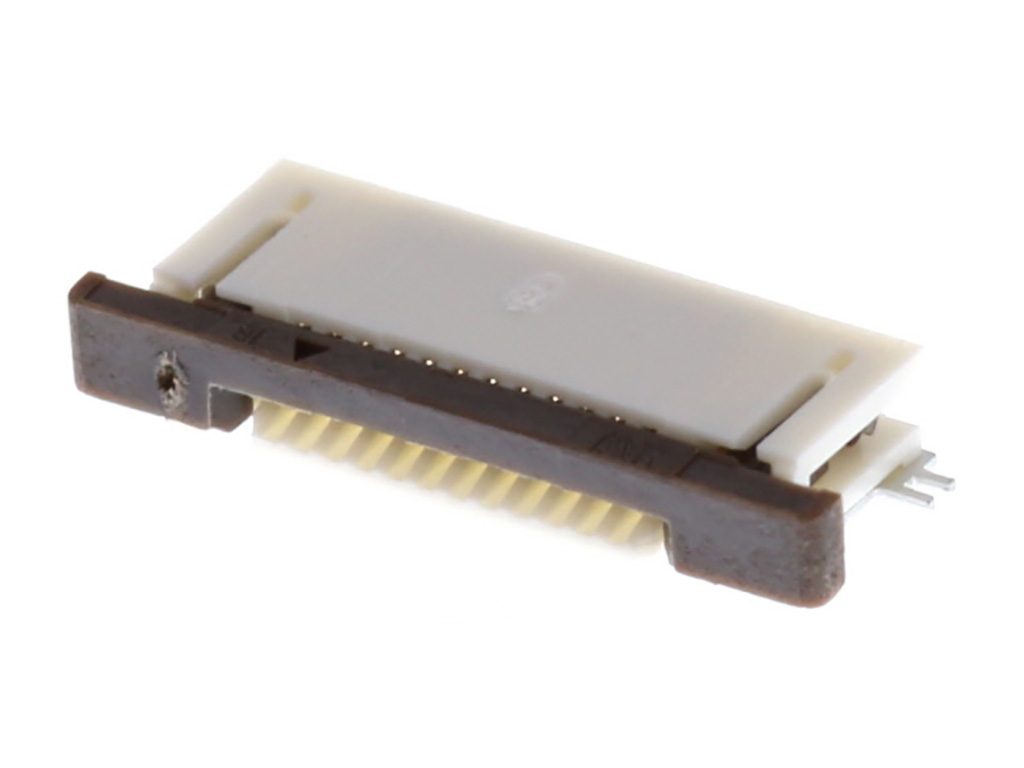

Easy-On FFC/FPC Connector, 0.50mm Pitch, Slider Series, Right-Angle, Bottom Contact, 2.00mm Height, 12 Circuits, Gold Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52746-1271,
0527461271 |
Where to Buy
Prices starting from US$0.47
| Distributor | Stock | ||
|---|---|---|---|
|
Farnell
from US$0.99
|
155,000
in stock
|
Buy Now |
|
TTI Europe
from US$0.64
|
8,000
in stock
|
Buy Now |
|
Newark Electronics
from US$1.22
|
4,625
in stock
|
Buy Now |
|
element14
from US$0.68
|
4,575
in stock
|
Buy Now |
|
RS
from US$0.94
|
1,520
in stock
|
Buy Now |
|
Rapid Electronics
from US$1.13
|
983
in stock
|
Buy Now |
|
Conrad
from US$0.60
|
983
in stock
|
Buy Now |
|
|
TTI Americas
from US$1.57
|
225
in stock
|
Buy Now |
|
TME
from US$0.73
|
198
in stock
|
Buy Now |
|
Avnet Abacus
-
|
22,000
in stock
|
Buy Now |
|
Offical Electronic
-
|
750
in stock
|
Buy Now |
|
Avnet America
from US$0.59
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$1.34
|
0
in stock
|
Buy Now |
|
Sager
from US$0.84
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.72
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.47
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.66
|
0
in stock
|
Buy Now |
|
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Slider |
| Circuits Loaded | 12 |
| Color Resin | Natural |
| Contact Position | Bottom |
| Durability Mating Cycles Max | 20 |
| Flammability | 94V-0 |
| Mated Height | 2.00mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Material Resin | Nylon |
| Net Weight | 159.196/mg |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pc Tail Length | 2.00mm |
| Pitch Mating Interface | 0.50mm |
| Pitch Termination Interface | 0.50mm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| FPC CONN, RCPT, 12POS, 1ROW, 0.5MM | Farnell |
| .50 MM FFC/FPC CONNECTOR 12CKT | TTI Europe |
| Ffc/Fpc Board Connector, Surface Mount, Receptacle, 12, Bottom, 0.5 Mm Rohs Compliant: Yes |Molex 52746-1271 | Newark Electronics |
| CONNECTOR, FFC/FPC, 12POS, 1ROW, 0.5MM | element14 |
| Molex 52746-1271 FPC Connector | RS |
| Molex 527461271 Easy-on FFC/FPC Connector 12 Pins 0.5mm Pitch Gold | Rapid Electronics |
| Molex FFC/FPC-Anschluss Polzahl Gesamt 12 Rastermaß: 0.5 mm 527461271 1 St. Tape on Full reel | Conrad |
| .5MM REC 12P RA SMT BOT | TTI Americas |
| Connector: FFC/FPC | TME |
| 0.5 FPC ZIF HOUSING ASSEMBLY RA 12W | RS Americas |
| FFC & FPC Connectors .5MM REC 12P RA SMT BOT | Sager |
| 0.5 FPC ZIF HSG ASSY SMTRA12C TEMBSTPPKG | Heilind Americas |
| 0.5 FPC ZIF HSG SMT RA 12CKT | TTI Asia |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 527461271?
Additional datasheets, footprints and schematics for 527461271 are listed on our Part Details page. You can also find images and similar parts to 527461271 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 527461271 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 527461271 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 527461271 fall under?
The 527461271 is listed under FFC / FPC Connectors.
Can I view similar or alternative parts?
You can view similar parts to 527461271 when available in the FFC / FPC Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 527461271 you can contact the distributor directly for product support, shipping queries etc.
Is the 527461271 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 527461271 have stock available?
Authorised distributors including Farnell, TTI Europe, Newark Electronics, element14 and RS have stock available or on a lead time for 527461271.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 527461271 often in real-time on the comparison pages.
What if I can't find stock of 527461271?
You can fill out our help required form which you can use to request a quote for 527461271 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
