527461371 Easy-On by Molex

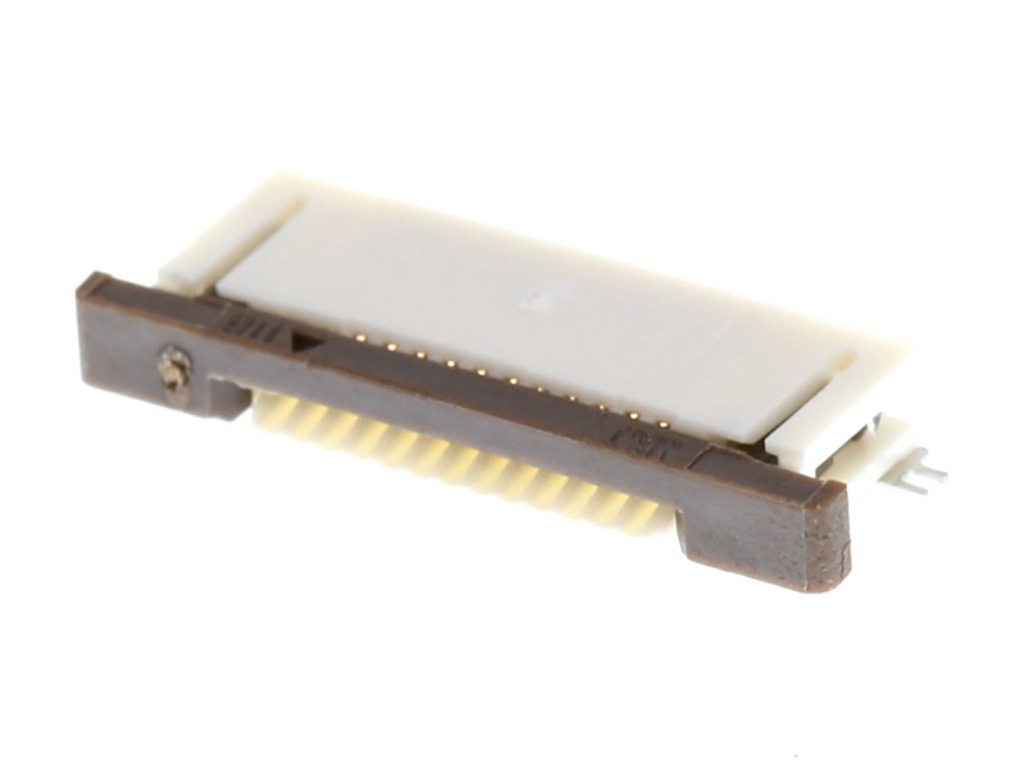

Easy-On FFC/FPC Connector, 0.50mm Pitch, Slider Series, Right-Angle, Bottom Contact, 2.00mm Height, 13 Circuits, Gold Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52746-1371,
0527461371 |
Where to Buy
Prices starting from US$0.51
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$0.93
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.64
|
0
in stock
|
Buy Now |
|
RS Americas
from US$1.02
|
0
in stock
|
Buy Now |
|
Sager
from US$0.90
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.77
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.51
|
0
in stock
|
Buy Now |
|
Farnell
from US$0.65
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Slider |
| Circuits Loaded | 13 |
| Color Resin | Natural |
| Contact Position | Bottom |
| Durability Mating Cycles Max | 20 |
| Flammability | 94V-0 |
| Mated Height | 2.00mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Material Resin | Nylon |
| Net Weight | 167.954/mg |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pc Tail Length | 2.00mm |
| Pitch Mating Interface | 0.50mm |
| Pitch Termination Interface | 0.50mm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 0.5 Fpc Zif Hsg Assy Smtra13Cktembstppkg Rohs Compliant: Yes |Molex 52746-1371 | Newark Electronics |
| Conn FFC/FPC Connector SKT 13 POS 0.5mm Solder RA SMD Embossed T/R | Avnet America |
| 0.5 FPC ZIF HSG ASSY SMTRA13CKTEMBSTPPKG | RS Americas |
| FFC & FPC Connectors 0.5 FPC ZIF Hsg Assy SMTRA13CktEmbsTpPkg | Sager |
| 0.5 FPC ZIF HSG ASSY SMTRA13C TEMBSTPPKG | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 527461371?
Additional datasheets, footprints and schematics for 527461371 are listed on our Part Details page. You can also find images and similar parts to 527461371 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 527461371 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 527461371 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 527461371 fall under?
The 527461371 is listed under FFC / FPC Connectors.
Can I view similar or alternative parts?
You can view similar parts to 527461371 when available in the FFC / FPC Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 527461371 you can contact the distributor directly for product support, shipping queries etc.
Is the 527461371 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 527461371 have stock available?
Authorised distributors including Newark Electronics, Avnet America, RS Americas, Sager and Heilind Americas have stock available or on a lead time for 527461371.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 527461371 often in real-time on the comparison pages.
What if I can't find stock of 527461371?
You can fill out our help required form which you can use to request a quote for 527461371 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
